FEATURES:
• Filter and regulator consolidated in a single assembly, sight-feed lubricator
• Modular or inline mounting
• 5-micron rated polyethylene filter element
• Zinc bowls with clear nylon sight glasses
or polycarbonate plastic bowls with
steel shatterguard
• Internal automatic filter drain; optional manual drain or external automatic drain
• Self-relieving diaphragm-type regulator; optional non-relieving
• Pressure gauge
Ports: 1/4, 3/8, 1/2, 3/4
Flow to 140 scfm
A
B
C
0
B A R 1 0 0 x k Pa p s i
120
160
200
80
40
0
2
4
6 8
10
12
14

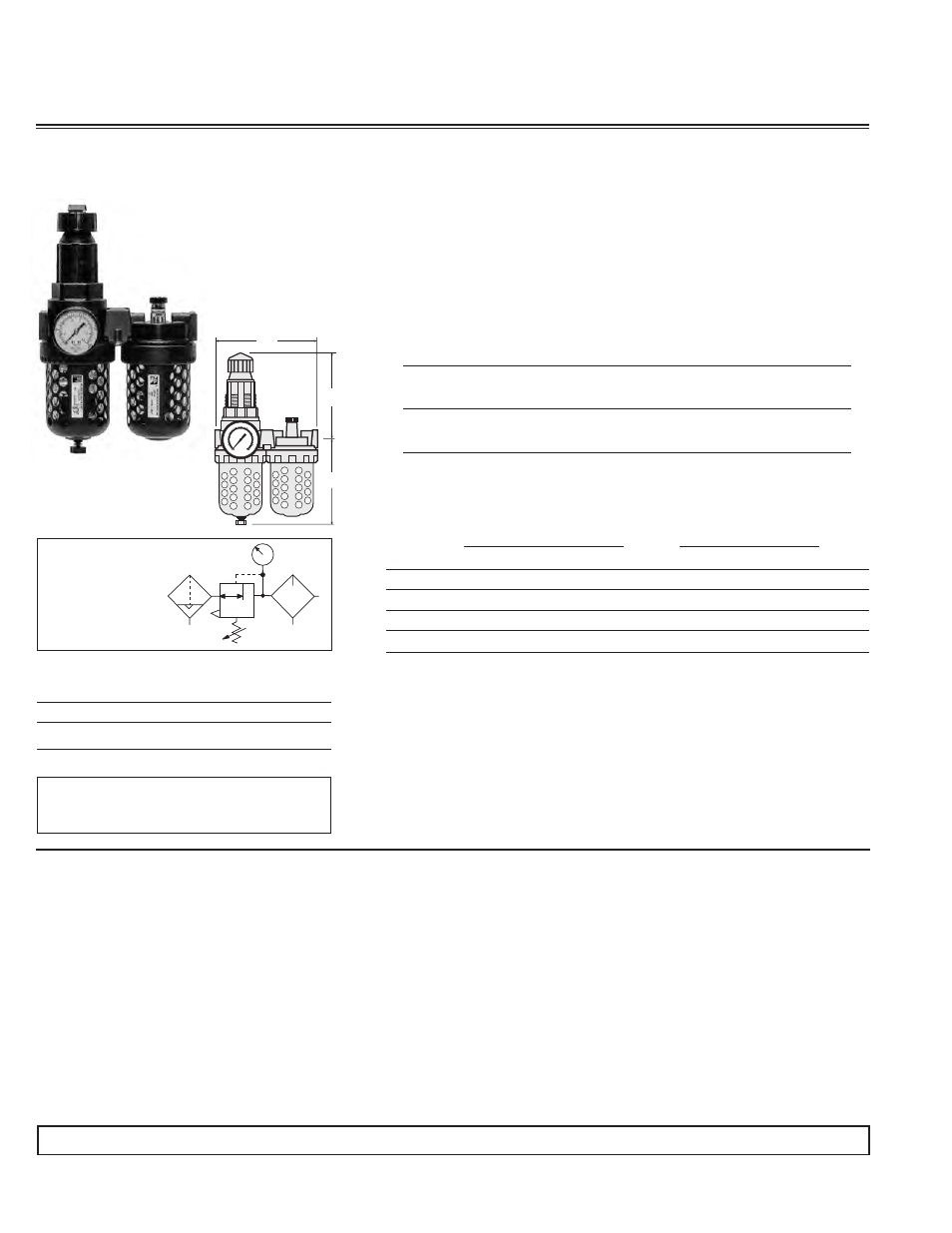

FULL-SIZE Sight-Feed Modular FRLs
Integrated Filter/Regulator plus Lubricator
STANDARD SPECIFICATIONS (for products on this page):
Ambient/Media Temperature:
Polycarbonate plastic bowl: 40° to 125°F (4° to 52°C).
Metal bowls: 40° to 175°F (4° to 79°C).
Bodies: Zinc for filter/regulator and lubricator.
Bowls: 8-ounce (240-ml) capacity zinc bowls with clear nylon sight
glasses or polycarbonate plastic bowls with steel shatterguards.
Bowl Rings: Nylon.
Filter Drain: Internal automatic drain; optional manual drain or
external automatic drain.
Filter Element: 5-micron rated polyethylene.
Fluid Media: Compressed air.
Pressure Adjustment Locking Key: Removable.
Pressure Gauge: 0 to 200 psig (0 to 14 bar); 1/4 NPT gauge ports
front and rear. Inlet Pressure:
For automatic drain model:
With polycarbonate plastic bowl: 15 to 150 psig (1.0 to 10.3 bar).
With metal bowl: 15 to 200 psig (1.0 to 13.8 bar).
For manual drain model:
With polycarbonate plastic bowl: 0 to 150 psig (0 to 10.3 bar).
With metal bowl: 0 to 200 psig (0 to 13.8 bar).
Oil Adjustment: External; tamper-resistant.
Outlet Pressure: Adjustable up to 125 psig (8.6 bar).
Regulator: Nylon dome; acetal knob.
Seals: Nitrile.
Sight Dome: Clear nylon.
Threads: NPT standard, BSPP, SAE. For BSPP threads, add a
“C” prefix to the model number, e.g., C5E11B2121.
ISO Symbol
FRL
Automatic Drain
Self-relieving
2
1
REPLACEMENT FILTER ELEMENT KIT
Element Rating/Type Kit Number
0.5 µm polyethylene - Standard 939K77
1/4 5E11B2121 5E11B2222 5E11B2321 5E11B2422
3/8 5E11B3121 5E11B3222 5E11B3321 5E11B3422
1/2 5E11B4121 5E11B4222 5E11B4321 5E11B4422
3/4 5E11B5121 5E11B5222 5E11B5321 5E11B5422
*Diaphragm type; regulated pressure 0 – 125 psig (8.6 bar); gauge included.
Plastic bowl includes metal bowl guard.
NOTE: Each regulator comes complete with a gauge.
For pipe nipple version, change the third and fourth digits to zero (0), e.g., 5E11B2321
becomes 5E00B2321.
For quick fill lubricator cap, change last digit to four (4), e.g., 5E11B2422 becomes
5E11B2424.
For wick-feed lubricator, change last digit to six (6), e.g., 5E11B4422 becomes
5E11B4426.
For wick-feed lubricator with quick fill cap, change last digit to eight (8), e.g.,
5E11B2402 becomes 5E11B2408.
Port Automatic Drain Models Manual Drain Models
Size Plastic Bowl Metal Bowl Plastic Bowl Metal Bowl
COMBINATION FILTER, REGULATOR* & LUBRICATOR (Includes 2 female port kits)
PISTON TYPE
AIR FLOW DATA
See Flow Charts for individual assembly
components on preceding pages.
IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.
DIMENSIONS inches (mm) Weight
Bowl A B C Depth † lb (kg)
Plastic 6.7 (170) 5.8 (147) 5.8 (146) 3.5 (89) 5.94 (2.69)
Metal 6.7 (170) 6.4 (163) 5.8 (146) 3.5 (89) 5.94 (2.69)
† Less gauge.
