Versa-Matic 2 Clamped Metallic Ball Valve Pumps (RE2) - Manual (Page 20)

re2mdlAsmC-rev0314
www
.
versamatic
.
com
3: EXP
VIEW
17
• Model RE2 Metallic Clamped

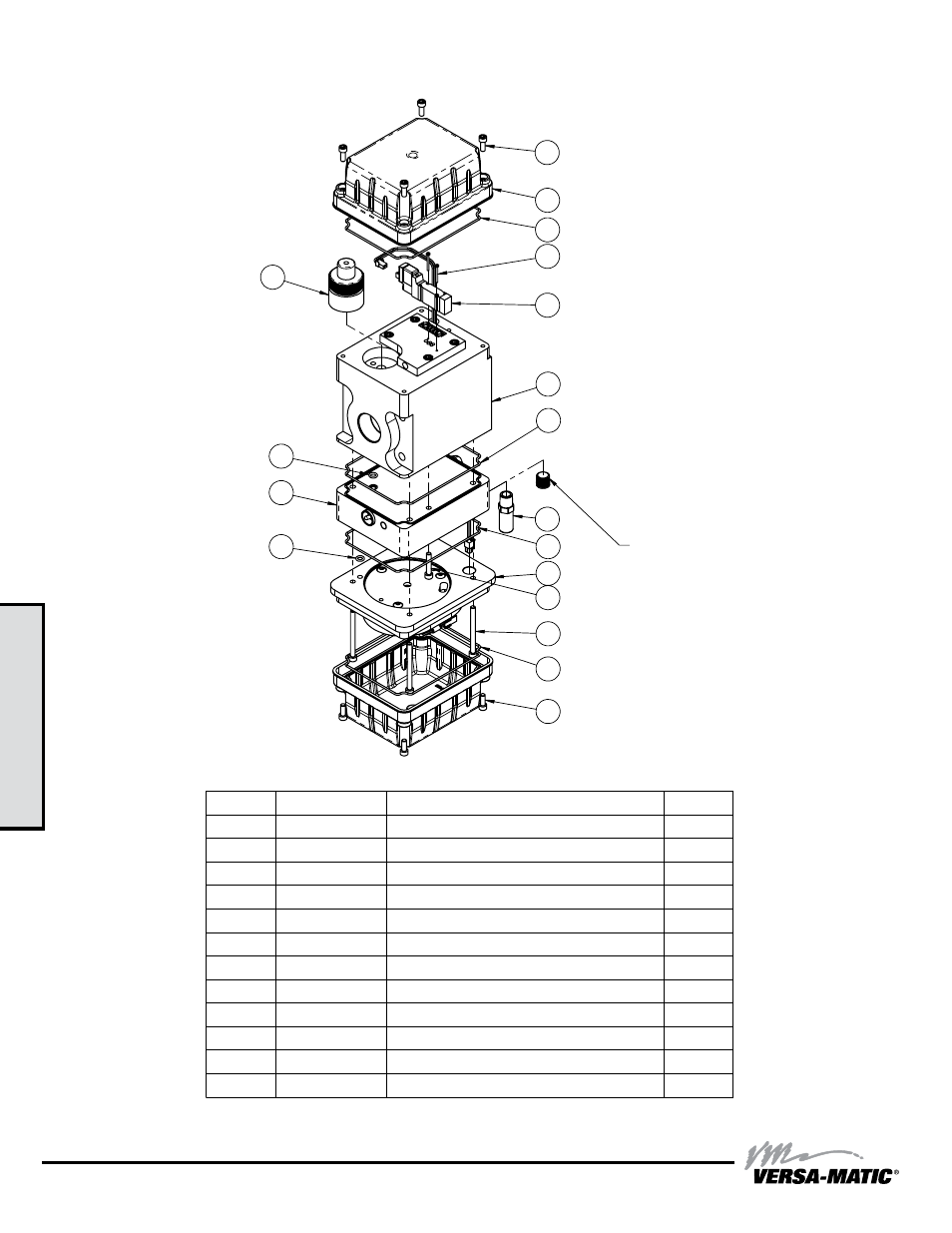

airVantage Composite Repair drawing
2.L
2.K
2.K
2.C
2.G
2.J
2.J
2.H
2.J
2.B
2.E
2.J
2.D
2.C
2.I
2.I
2.F
2.A
2.A 020.069.000 1
2.B 031.199.000 1
2.C 171.079.115 8
2.D 171.080.115 2
2.E 171.081.115 4
2.F 249.025.000 1
2.G 258.018.551 2
2.H 530.044.000 1
2.I 560.200.360 2
2.J 720.071.360 4
2.K 765.004.000 1
2.L 893.102.000 1
Optional 1/4" NPT Pipe Plug (P/N 618.011.330)
Must be installed if performing direct spray
wash-down of pump (Purchased Separately)
ITEM NO. PART NUMBER DESCRIPTION QTY.
REGULATOR
POWER GENERATION MODULE
CAPSCREW, HEX SOC HD, 10-32 X .50
CAPSCREW, HEX SOC HD, 10-32 X 1.00
CAPSCREW, HEX SOC HD, 10-32 X 2.25
CONTROL MODULE
COVER
MUFFLER
O-RING
SEAL, O-RING
VALVE, SOLENOID
VALVE, POPPET
AirVantage Composite Parts List
2.L
2.K
2.K
2.C
2.G
2.J
2.J
2.H
2.J
2.B
2.E
2.J
2.D
2.C
2.I
2.I
2.F
2.A
Optional 1/4" NPT Pipe Plug (P/N 618.011.330)
Must be installed if performing direct spray
wash-down of pump (Purchased Separately)
ITEM NO. PART NUMBER DESCRIPTION QTY.
2.A 020.069.000 REGULATOR 1
2.B 031.199.000 POWER GENERATION MODULE 1
2.C 171.079.115 CAPSCREW, HEX SOC HD, 10-32 X .50 8
2.D 171.080.115 CAPSCREW, HEX SOC HD, 10-32 X 1.00 2
2.E 171.081.115 CAPSCREW, HEX SOC HD, 10-32 X 2.25 4
2.F 249.016.000 CONTROL MODULE 1
2.G 258.018.551 COVER 2
2.H 530.044.000 MUFFLER 1
2.I 560.200.360 O-RING 2
2.J 720.071.360 SEAL, O-RING 4
2.K 765.004.000 VALVE, SOLENOID 1
2.L 893.102.000 VALVE, POPPET 1
