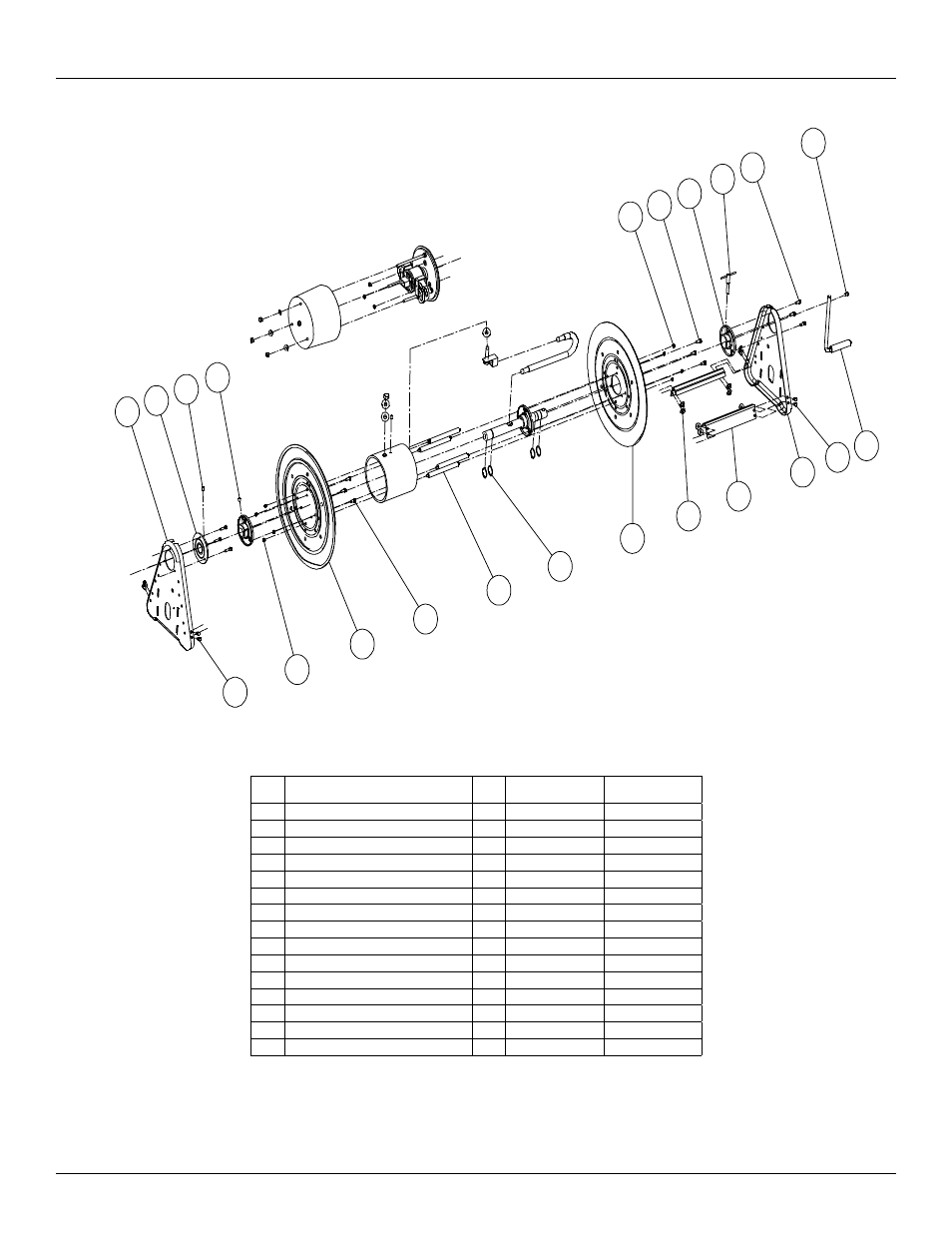

Series CEA30000 Welding Cable Reels
www.reelcraft.com
Page 3
Item
#
Description
Qty.
CEA30006
CEA30012
1
Side Frame
2
260403
260403
2
Hub & Bushing Assembly
4
S600640
S600640
3
Set Screw (Brass)
1
300099
300099
4
Set Screw
1
300006
300006
5
Nyloc Nut
8
S85-7
S85-7
6
Self-Tapping Screw
12
S317-31
S317-31
7
Lock Handle
1
S280109
S280109
8
Set Screw (Square Head)
1
300089
300089
9
Crank & Handle Assembly
1
S600102
S600102
10
Hex Screw (5/16-18 x 1/2”)
8
S2-51
S2-51
11
Cross Brace
2
261501-1
261501-2
12
Lock Nut
8
300107
300107
13
Spool Flange
2
S260399-3
S260399-3
14
Snap Ring (1-1/4”)
4
300007
300007
15
Tie Rod
4
260402-100
260402-200
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2
6
1
6
13
5
10
