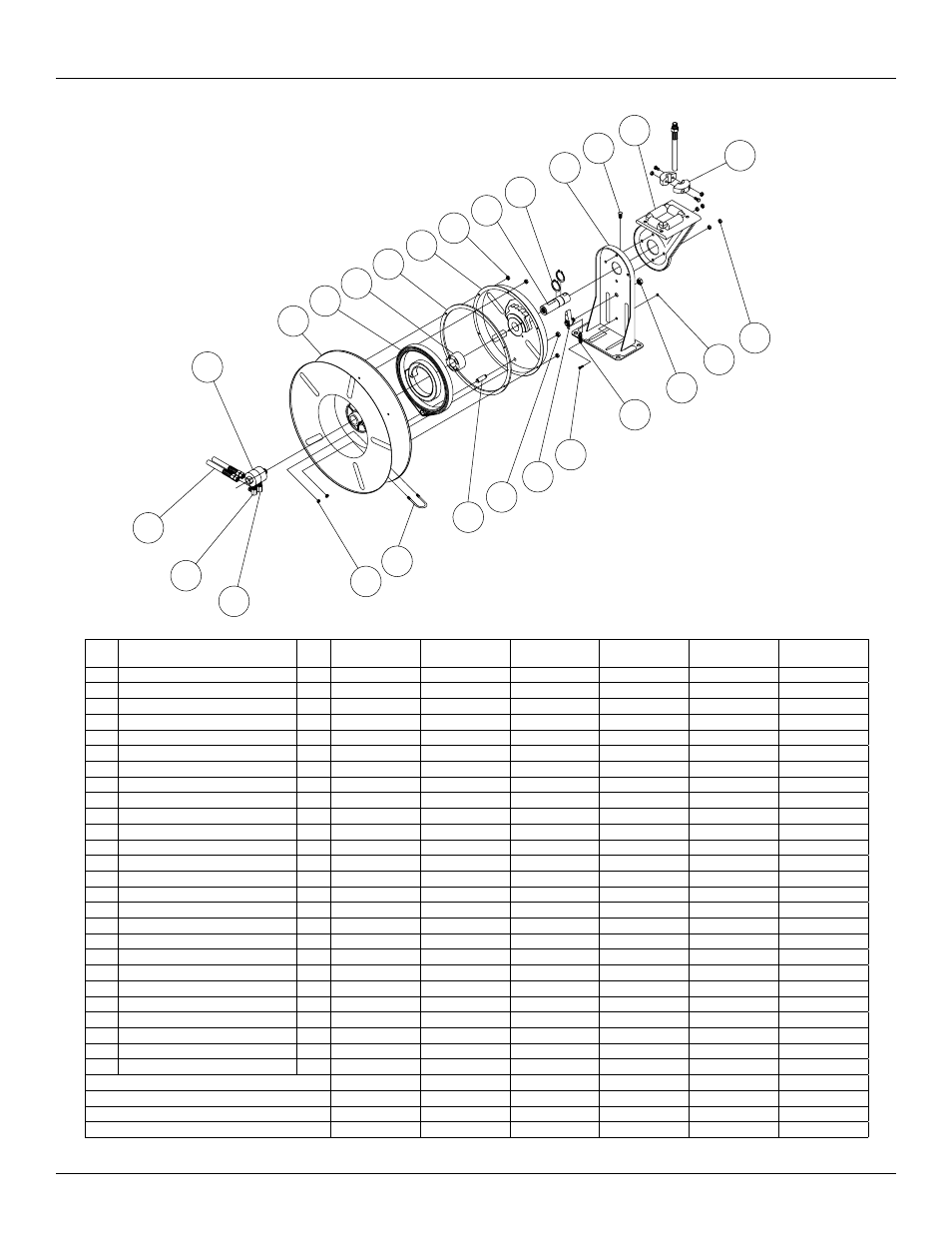

Reelcraft Series TW7000 Welding Hose Reels - Manual (Page 6)

Series TW7000 Carretes Dobles para Soldadura
Page 6 www.reelcraft.com
ART.
NO.
Descripción
NO.
REQ. TW7400 OLP TW7400 OLPT TW7450 OLP TW7450 OLPT TW7460 OLP TW7460 OLPT
1 Eje giratorio emsamblado 1 S260057-3 S260057-1 S260057-3 S260057-1 S260057-3 S260057-1
2 Polea ensamblada 1 S260011 S260011 S260011 S260011 S260011 S260011
3 Resorte ensamblado de propulcion 1 S260028 S260028 S260028 S260028 S260028 S260028
4 Resorte del arbol 1 S600621 S600621 S600621 S600621 S600621 S600621
5 Empaque 1 S260069 S260069 S260069 S260069 S260069 S260069
6 Resorte de la caja ensamblada 1 S260074 S260074 S260074 S260074 S260074 S260074
7 10-32 Tuerca hexagonal 6 S300011 S300011 S300011 S300011 S300011 S300011
8 Columna principal 1 602241 602241 602241 602241 602241 602241
9 Anillo de resorte 2 300007 300007 300007 300007 300007 300007
10 Base ensamblada 1 S600016 S600016 S600016 S600016 S600016 S600016
11 1/2-13 Tornillo 1 S35-84 S35-84 S35-84 S35-84 S35-84 S35-84
12 Guia del brazo con rodillos 1 600017 600017 600017 600017 600017 600017
13 Manguera del parachoque ensamblada 1 Ninguno Ninguno A8-HR1004-3 A8-HR1004-3 A8-HR1004-3 A8-HR1004-3
14 Tuerca Whizloc, 5/16-18 4 300107 300107 300107 300107 300107 300107
15 10-32 Tuerca Nyloc 1 S82-15 S82-15 S82-15 S82-15 S82-15 S82-15
16 1/2-20 Tuerca hexagonal 1 S280-8 S280-8 S280-8 S280-8 S280-8 S280-8
17 Ressort de loquet 1 S260067 S260067 S260067 S260067 S260067 S260067
19 10-32 tornillo de hombro 1 S393-2 S393-2 S393-2 S393-2 S393-2 S393-2
20 Assemblage de cliquet 1 S600018 S600018 S600018 S600018 S600018 S600018
21 3/8-24 Contratuerca 1 S76-106 S76-106 S76-106 S76-106 S76-106 S76-106
22 Perno de la caja de resorte 1 S260031 S260031 S260031 S260031 S260031 S260031
23 Tornillo “u” 1 5-117440 5-117440 5-117440 5-117440 5-117440 5-117440
24 1/4-20 Tuerca Nyloc 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
26 Codo a 90° (oxígeno) 1 S300091 S300091 S300091 S300091 S300091 S300091
27 Codo a 90° (acetileno / combustible) 1 S300090 S300090 S300090 S300090 S300090 S300090
28 Manguera del ensamblada 1 Ninguno Ninguno 601032-50 601031-50 601032-60 601031-60
Manguera I.D. y Medida Ninguno Ninguno 1/4” x 50’ 1/4” x 50’ 1/4” x 60’ 1/4” x 60’
Coneccion de Entrada al Carretel 1/4” NPT(F) 1/4” NPT(F) 1/4” NPT(F) 1/4” NPT(F) 1/4” NPT(F) 1/4” NPT(F)
Max. Presion de Operacion 200 PSI 200 PSI 200 PSI 200 PSI 200 PSI 200 PSI
Max. Temperatura de Operacion 210° F 210° F 210° F 210° F 210° F 210° F
