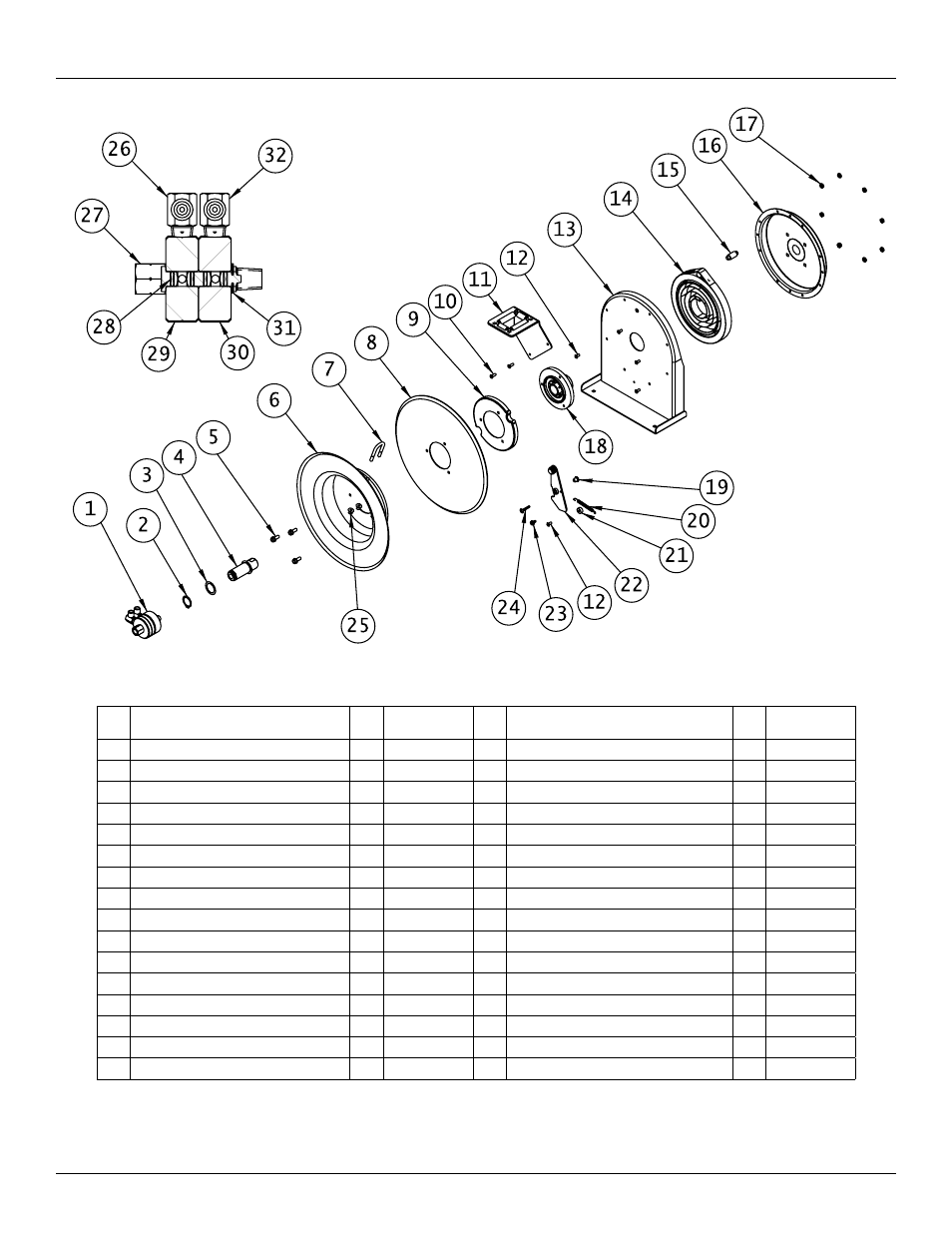

Reelcraft Series TW4000 Welding Hose Reels - Manual (Page 3)

Series TW4000 Welding Hose Reels
www.reelcraft.com Page 3
Item
No.
Description
Qty.
Req. TW4400 OLP
Item
No.
Description
Qty.
Req. TW4400 OLP
1 Swivel Assembly 1 S260057-3 17 10-32 Serrated Hex Nut 7 300011
2 1" External Snap Ring 1 300031 18 Spring Arbor 1 S260648
3 1.005 ID X 1.312 OD Spacing Washer 2 300034 19 Latch Pawl Bushing 1 S400012
4 Main Shaft w/Snap Ring 1 602306 20 Latch Pawl Spring 1 S400018
5 Self Tapping Screw 3 S295-103 21 Latch Pawl Bumper 1 S400021
6 Flange Sheave 1 400005 22 Latch Pawl Assembly 1 S400019
7 U-Bolt 1 3-117440 23 10-24 X 3/8 Self Tapping Screw 1 S32-136
8 Disc Sheave 1 400006 24 10-32 X 1" Truss Head Machine Screw 1 300035
9 Latch Cam 1 S400019 25 1/4-20 Hex Flange Lock Nut 2 261650-1
10 10-32 X 1/2 Machine Screw 2 300002 26 9/16-18 Acet. 90° Ell 1 300090
11 Guide Arm 1 S400107 27 Swivel Stem 1 260054
12 10-32 X 3/8 Machine Screw 5 300001 28 Ethylene-Peoylene O-Ring 4 300095
13 Base Assembly 1 400101 29 Acet. Swivel Body 1 260056
14 Drive Spring Assembly 1 S400030 30 Oxy. Swivel Body 1 260056
15 Spring Case Stud 1 261360 31 5/8 External Snap Ring 1 300087
16 Spring Case Assembly 1 S400103 32 9/16-18 Oxy. 90° Ell 1 300091
