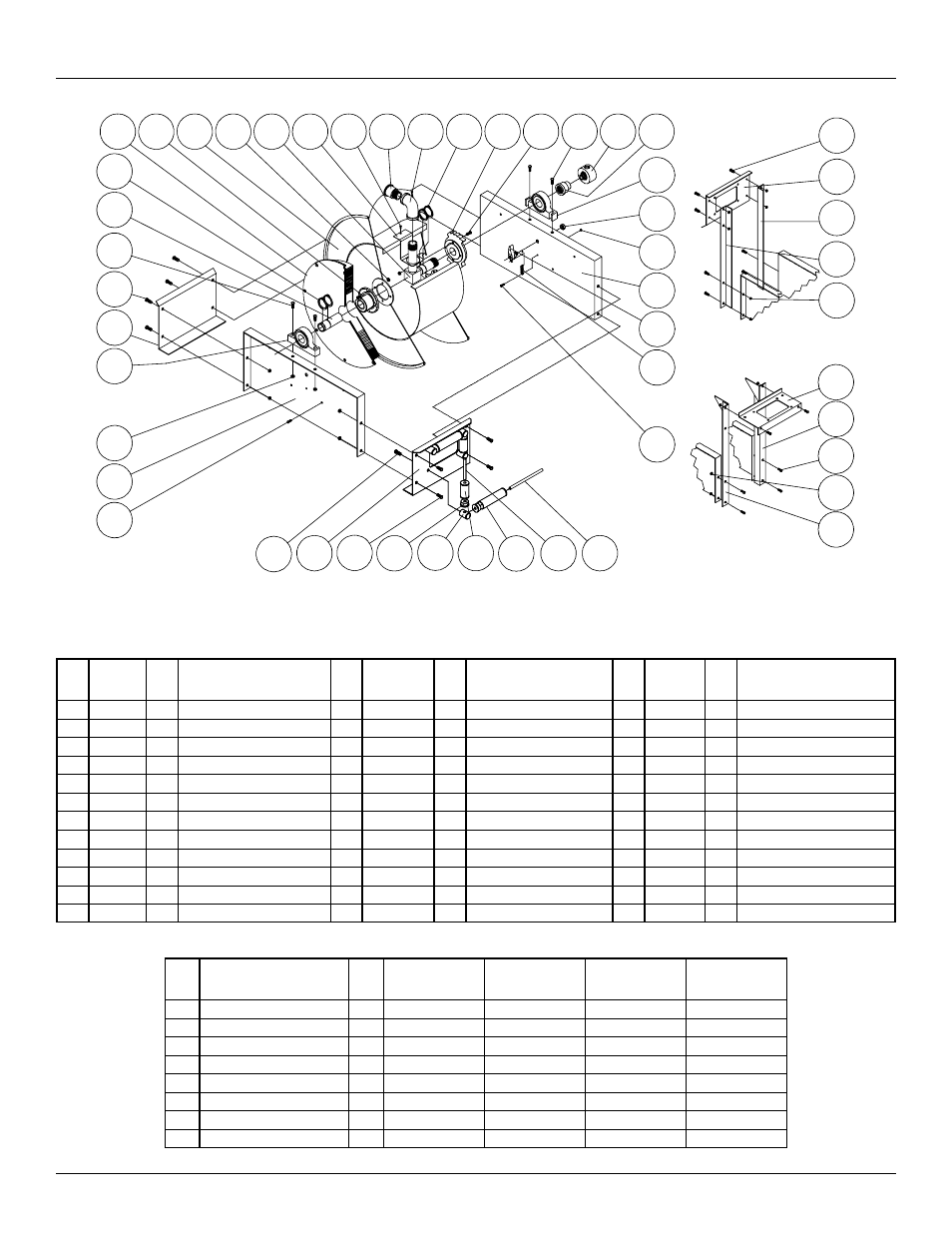

Series D9000 Spring Driven Hose Reels
Page 2 www.reelcraft.com
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
1 S45-41 4 1/4-20 x 1/2” Mach. Screw 15 260279 1 Outlet Support 31 260264 2 Guide Roller Tube - Long
2 260277 2 Side Frame 16 S48-117 1 #10 x 1/2” Drilling Screw 32 260265 2 Guide Roller Tube - Short
3 S73-6 12 3/8-16 Hex Flange Nut 17 S260225 1 Bushing 33 260267 4 Guide Roller Post
5 260278 1 End Frame Support 18 S163-16 1 90° Femail F.P.T. Ell 34 S270017 8 Guide Roller Bushing
6 S55-2 8 3/8-16 x 5/8” Mach. Screw 20 S73-4 8 1/4-20 x 5/8” Hex Screw 35 260266 1 Roller Support
7 S55-8 4 3/8-16 x 1 3/4” Screw 23 S74-108 1 1/2-20 Hex Jam Flange Nut 36 S347-50 4 5/16-18 x 1/2” Hex Screw
8 260273 1 Support Shaft 24 S95-22 1 10-32 x 3/8” Nyloc Nut 37 260347 1 Guide Roller Plate SW
9 S147-31 6 Snap Ring 25 S600069-1 1 Latch Pawl Assembly 38 260346 1 SW Support RH
10 S600071 1 Spring & Case Ass’y 26 S260067 1 Latch Spring 39 260345 1 SW Support LH
12 600072 1 Sheave Assembly 28 S392-2 1 10-32 Shoulder Screw 40 260363 1 Guide Roller Plate TW
13 S45-50 4 5/16-18 Hex Cap Screw 29 260268 2 Guide Roller Pin - Long 41 600126 1 Riser Assembly TW
14 261047 1 1” Inlet Shaft 30 260269 2 Guide Roller Pin - Short 42 600125 1 Riser Assembly TW
Item
#
Description
#
Req
D9200 OMS D9300 OMS D9200 OMS-S D9300 OMS-S
4 Pillow Block Assembly 2 S270058 S270058 600665 600665
11 Spring Arbor 1 S270002 S270002 260364 260364
19 Latch Ratchet 1 S270001 S270001 261049 261049
21 Swivel Assembly 1 S600092-2 S600091-2 S600092-2 S600091-2
22 Coupling Reducer 1 S292-5 S292-6 S292-5 S292-6
25 Latch Pawl Assembly 1 S600069-1 S600069-1 S600069 S600069
-- Working pressure -- 3000 PSI 3000 PSI 3000 PSI 3000 PSI
-- Max. temperature -- 210° F 210° F 210° F 210° F
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 9 19 20 7 22
4
23
24
2
25
26
28
21
36 35 6 34 33 32 31 30 29
6
37
38
39
3
40
41
6
3
42
