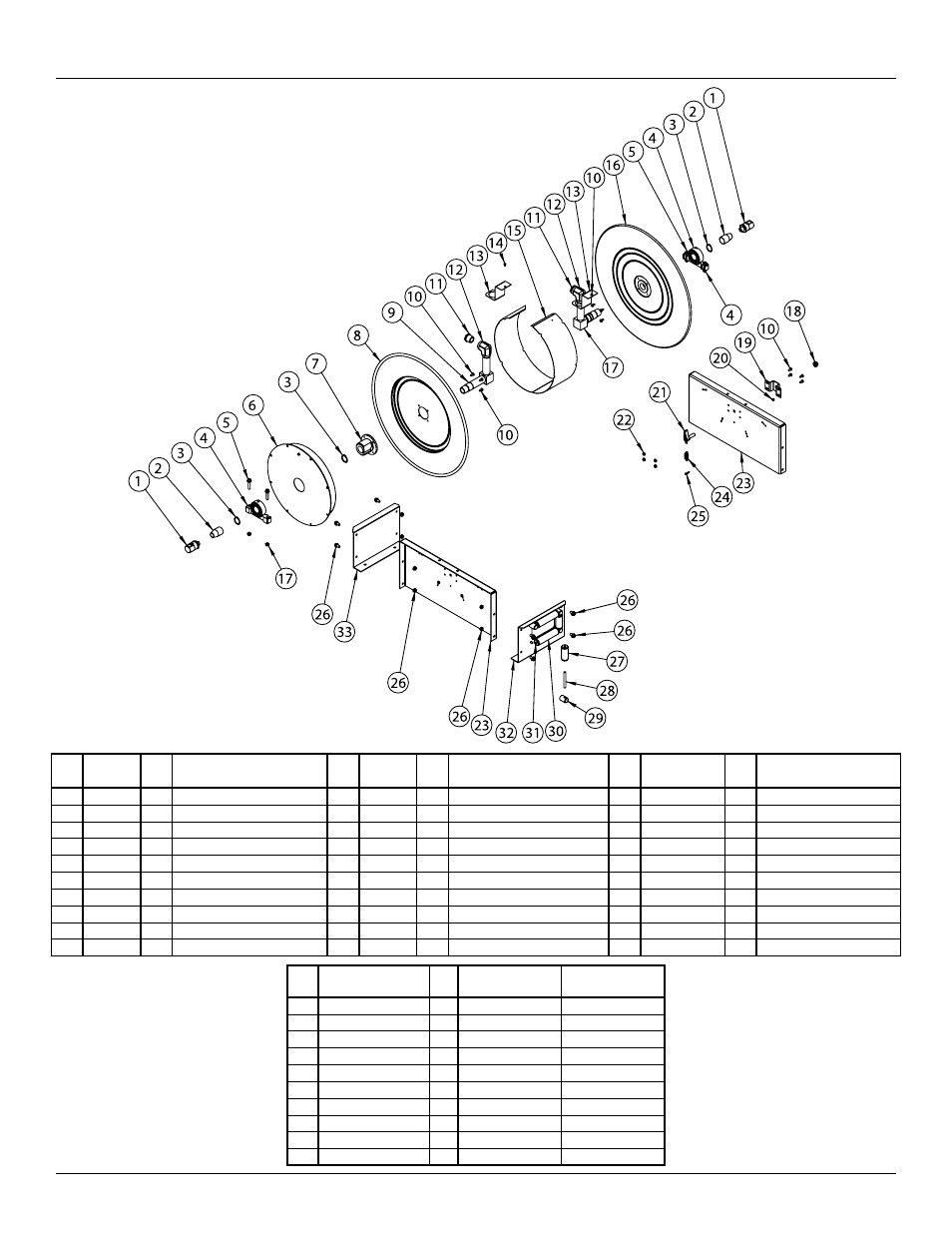

Series TH9000 Spring Driven Hose Reels
Page 2 www.reelcraft.com
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
3 S140-34 6 Snap Ring 1-3/8" I.D. 14 S32-136 2 Self Tapping Screw 10-24 x 3/8" 24 S260067-1 1 Latch Spring
4 S600416 2 Pillow Block Assembly 15 260948 1 Spool spacer 25 S393-2 1 Shoulder Screw 10-32 2A
5 S44-8 4 Machine Screw 3/8-16 x 1-3/4" 16 270007 1 Flange Disc 26 S44-2 8 Machine Screw 3/8-16 x 5/8"
6 600413-1 1 Spring Case Assembly 17 602364 1 Inlet Shaft 27 262436-2.968 2 Short Guide Roller
7 260888 1 Spring Arbor 18 S280-8 1 Hex Flange Nut 1/4-20 28 S270015 2 Short Guide Roller Pin
8 260898 1 Flange Sheave 19 260934 1 Latch Bracket 29 S270014 4 Guide Roller Post
7 260888 1 Spring Arbor 20 S82-15 1 Nyloc Nut 10-32 30 262436-5.468 2 Long Guide roller
8 260898 1 Flange Sheave 21 S600454 1 Latch Pawl Ass'y 31 S270016 2 Long Guide Roller Pin
10 S2-41 16 Hex Cap Screw 1/4-20 X 1/2" 22 S281-4 8 Hex Flange Nut 1/4-20 Whiz Loc 32 270011 1 Guide Roller Plate
13 270029 2 Hose Outlet Support 23 270009 2 Side Frame 33 270012 1 End Frame Support
Item
#
Description
#
Req TH9200 OMPBW TH9265 OMPBW
1 Swivel 2 S602033 S602033
2 Reducing Coupling 2 S290-5 S290-5
9 Inlet Shaft 1 602556 602556
11 Bushing 1" X 1/2" 2 S174-112 S174-112
12 90° Ell 1" 2 270039 270039
-- Hose Assembly -- None 600669-5
-- Hose Bumper -- None A600522
-- Hose ID and length -- None 1/2” x 65’
-- Working pressure -- 3000 PSI 2000 PSI
-- Max. temperature -- 210° F 210° F
