Reelcraft Series 5000 Spring Driven Hose Reels (AxxxxOLBSW23) - Manual (Page 2)

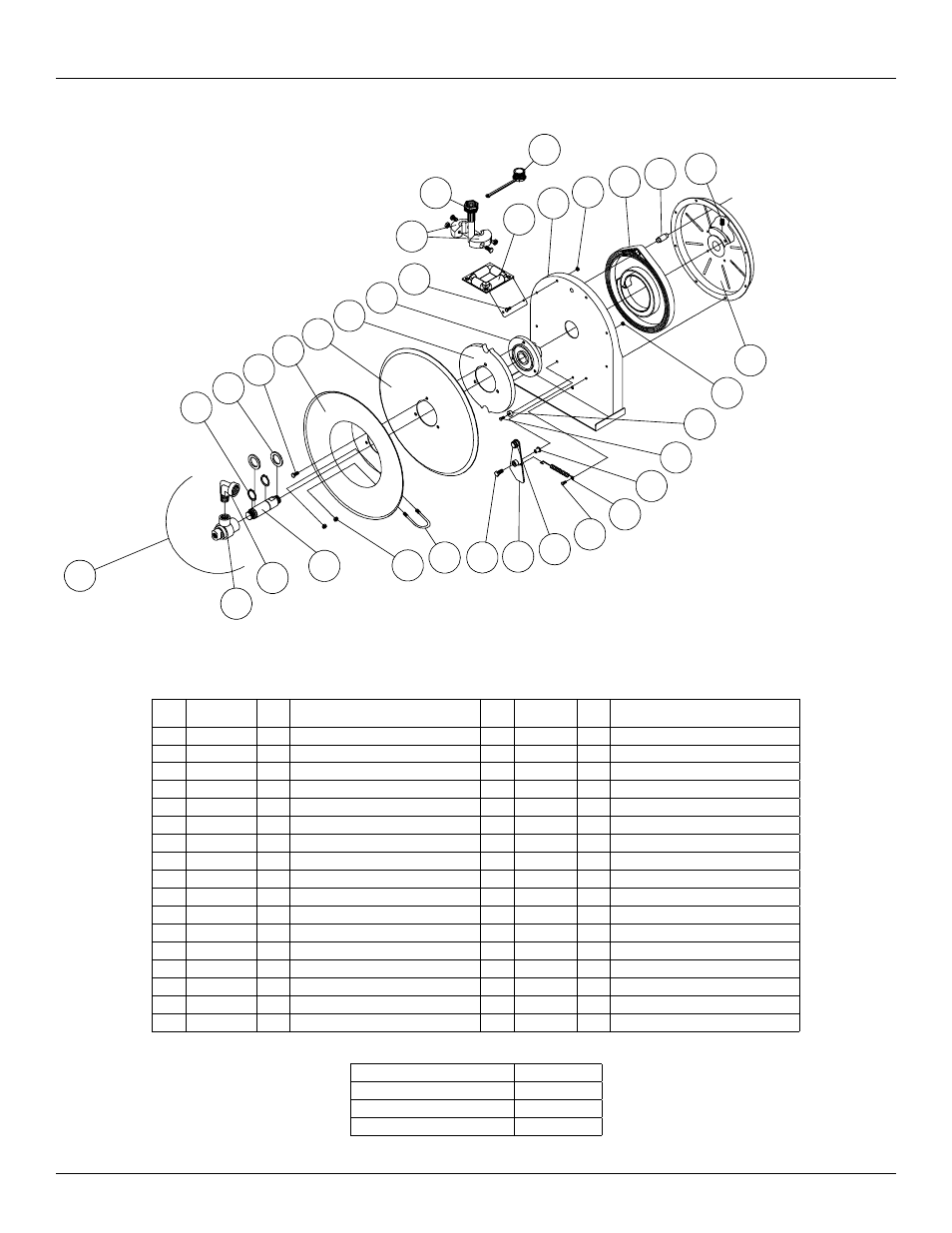

Series 5000 Spring Driven Hose Reels
Page 2 www.reelcraft.com
Item
#
Part #
#
Req.
Description
Item
#
Part #
#
Req.
Description
1 300031 2 Snap Ring 18 S500103 1 Spring Case Assembly
2 300034 2 Spacing Washer 19 S82-15 1 10-32 x 3/8” Nyloc Nut
3 S295-102 3 1/4” Plastite Hex Screw 20 S400021 1 Latch Bumper
4 260022 1 Sheave Flange 21 S32-136 1 10-24 x 3/8” Mach. Screw
5 500006 1 Sheave Disc 22 S400012 1 Latch Bushing
6 S500019 1 Latch Cam 23 S400018 1 Latch Spring
7 S260648 1 Spring Arbor 24 300001 5 10-32 x 3/8” Screw
8 300002 2 10-32 x 1/2” Screw 25 400020 1 O’Ring
9 A1-HR1004 1 Hose Bumper Assembly 26 S400109 1 Latch Plate Assembly
10 601062 1 Hose Assembly 27 300035 1 10-32 x 1” Mach. Screw
11 300062 1 Hose Plug 28 3-117440 1 U-bolt
12 S500107 1 Guide Arm & Roller Assembly 29 261650-1 2 1/4-20 Zinc Nyloc Nut
13 500101 1 Base Assembly 30 260765 1 Main Shaft
14 S300011 7 10-32 Hex Lock Nut 31 261845 1 90° Street Ell
15 S505740 1 Drive Spring Assembly 32 261846 1 Swivel Assembly
16 S261360 1 Spring Case Stud 33 S600999 1 Swivel & Ell Assembly
17 300006 1 3/8-16 x 1/2” Set Screw
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26 27 28
29 30
31
32
33
Hose I.D. & Length 1/2” x 35’
Reel Inlet Connection 1/2” M.P.T.
Max. Operating Pressure 300 P.S.I.
Max. Operating Temperature 210°F
