Reelcraft Series 30000 Hose Reels 3 Way Roller Guides User Manual
Page 4
Series 30000 Hose Reels
Page 4
www.reelcraft.com

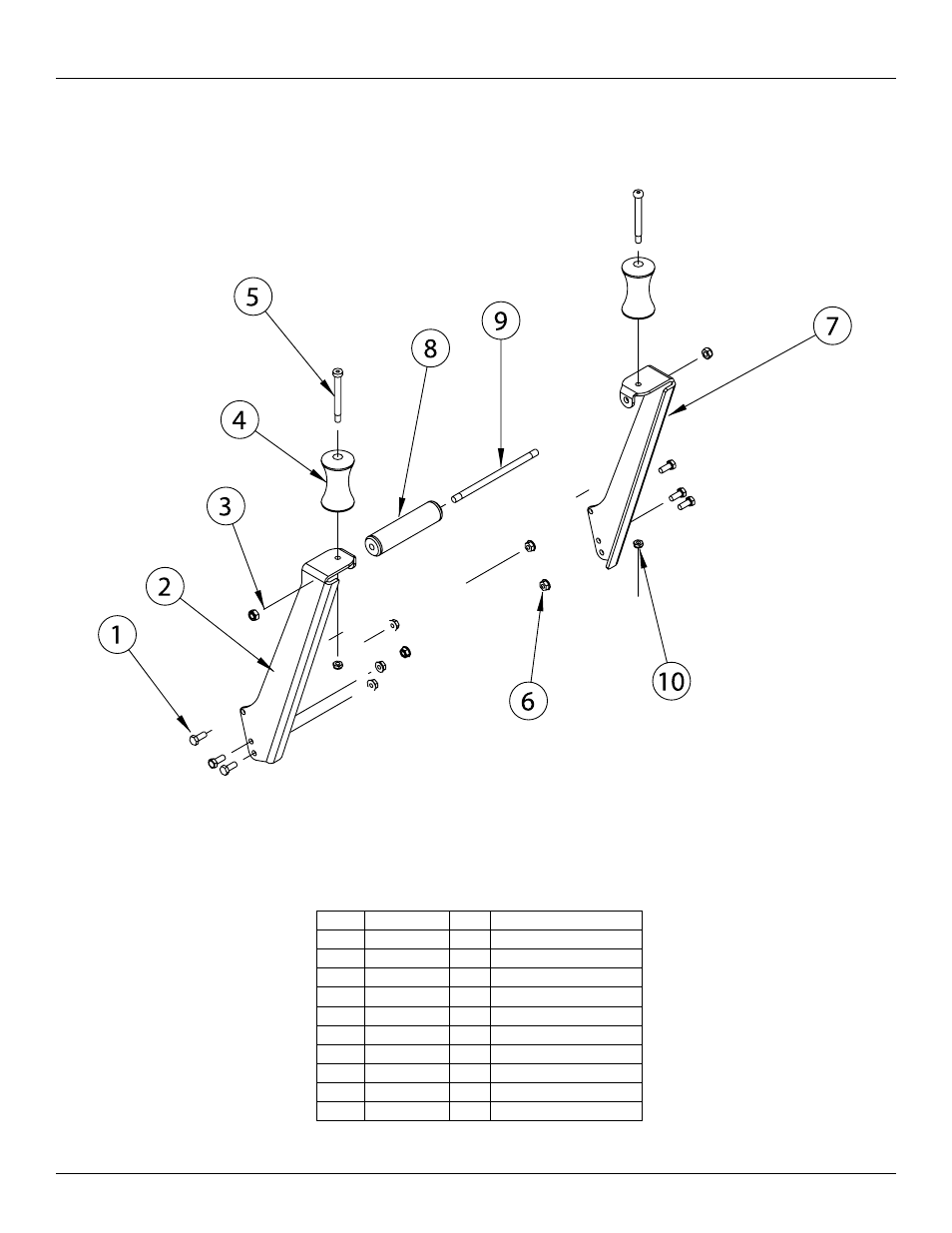

Top Wind Roller Parts List
Item #
Part #
# Req.
Description
1
S2-54
4
Bolt, 5/16-18 x 7/8”
2
262043-2
1
Guide Arm, Left
3
S85-8
2
Lock Nut, 3/8-16
4
262435
2
Spool
5
S279-126
2
Shoulder, Bolt
6
300107
4
Lock Nut, 5/16-18
7
262043-1
1
Guide Arm, Right
8
By Model
1
Roller Assembly
9
By Model
1
Roller Shaft
10
S85-7
2
Lock Nut, 5/16-18
