Series 30000 Hand Crank Reels
www.reelcraft.com Page 3
1
2
3
4
5
6
7
8
8
10
9
11
12
13
14
6
2
13
15
16
7
17
18
19
2
20
3
21
22
23
8
7
13
24
13
20

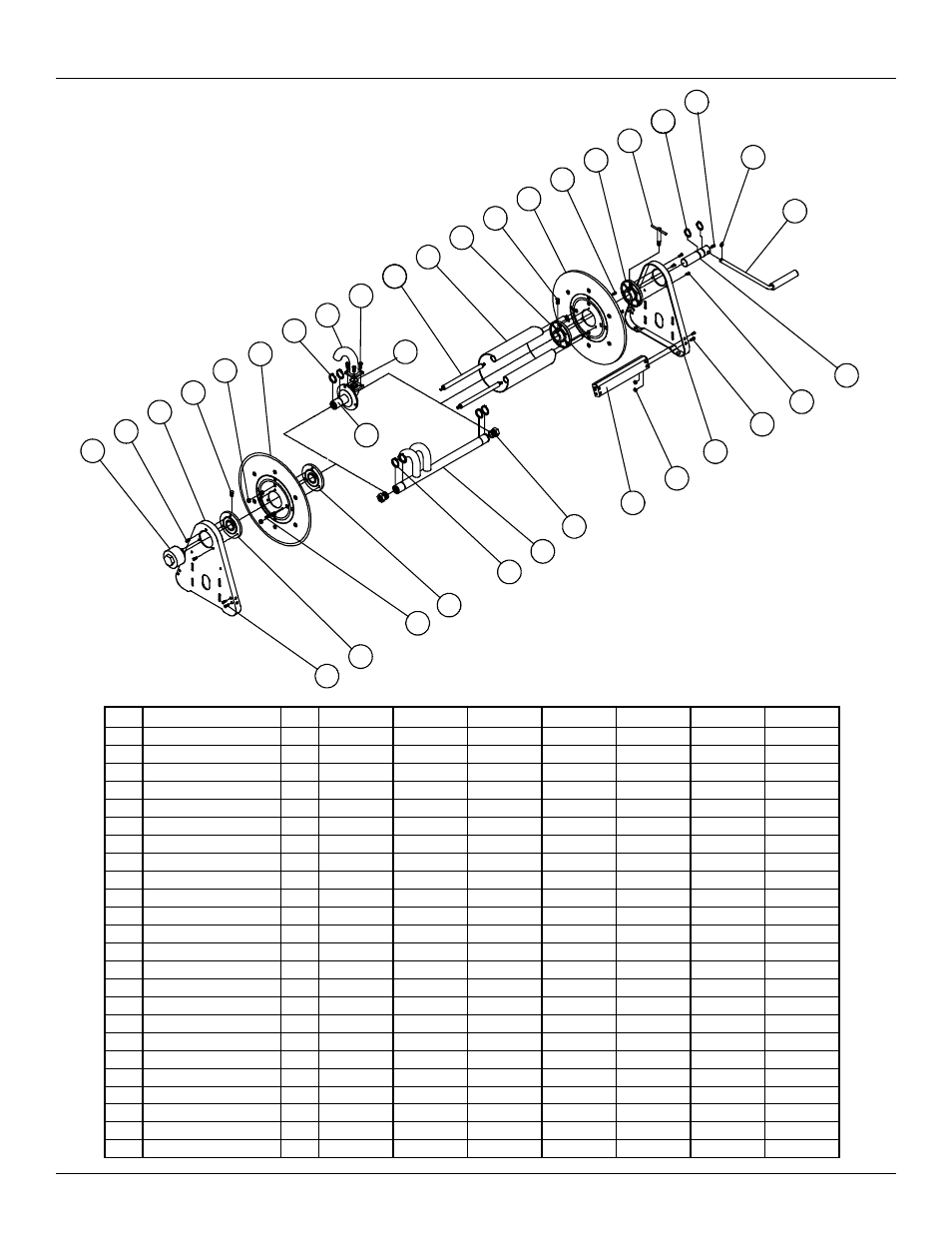

ITEM DESCRIPTION QTY. CA30106 L CA30112 L CA30118 L CA30122 L CA30128 L CA32106 L CA32106 M
1 Swivel assembly 1 None None None None None 600888 S602033
2 Screw, 5/16-12 x 5/8” 9 S317-31 S317-31 S317-31 S317-31 S317-31 S317-31 S317-31
3 Side frame 2 260403 260403 260403 260403 260403 260403 260403
4 Set screw 3/8 brass 1 300099 300099 300099 300099 300099 300099 300099
5 Nut, 5/16-18 8 S85-7 S85-7 S85-7 S85-7 S85-7 S85-7 S85-7
6 Spool flange 2 S260399-3 S260399-3 S260399-3 S260399-3 S260399-3 S260399-3 S260399-3
7 Snap ring 3 300007 300007 300007 300007 300007 300007 300007
8 Inlet assembly 1 600327-2 600327-2 600327-2 600327-2 600327-2 600327-1 600327-1
9 O-ring 1 S211-120 S211-120 S211-120 S211-120 S211-120 S211-120 S211-120
10 Screw, 5/16-18 x 3/4” 4 S7-51 S7-51 S7-51 S7-51 S7-51 S7-51 S7-51
11 Tie rod 4 260402-100 260402-200 260402-300 260402-400 260402-500 260402-100 260402-100
12 Spacer 4 260401-1 260401-2 S260401-3 260401-4 260401-5 260401-1 260401-1
13 Hub & bushing assembly 3 S600640 S600640 S600640 S600640 S600640 S600640 S600640
14 Set screw 2 300006 300006 300006 300006 300006 300006 300006
15 Lock handle assembly 1 S280109 S280109 S280109 S280109 S280109 S280109 S280109
16 Set screw 3/8 square head 1 300089 300089 300089 300089 300089 300089 300089
17 Snap ring 1 S137-4 S137-4 S137-4 S137-4 S137-4 S137-4 S137-4
18 Crank handle assembly 1 S600102 S600102 S600102 S600102 S600102 S600102 S600102
19 Shaft / snap ring assembly 1 602242 602242 602242 602242 602242 602242 602242
20 Screw, 5/16-18 x 1/2” 8 S2-51 S2-51 S2-51 S2-51 S2-51 S2-51 S2-51
21 Nut, 5/16-18 8 300107 300107 300107 300107 300107 300107 300107
22 Cross brace 2 261501-1 261501-2 261501-3 261501-4 261501-5 261501-1 261501-1
23 Reducer bushing 4 None None None None None None None
24 Screw, 1/4-20 x 5/8” 3 S2-42 S2-42 S2-42 S2-42 S2-42 S2-42 S2-42
