Reelcraft Series D9000 Spring Driven Hose Reels (Low, Medium & High Pressure DxxxxOLPBW70, DxxxxOMPBW70, DxxxxOHPBW118, DxxxxOLPBW118) User Manual
Page 2

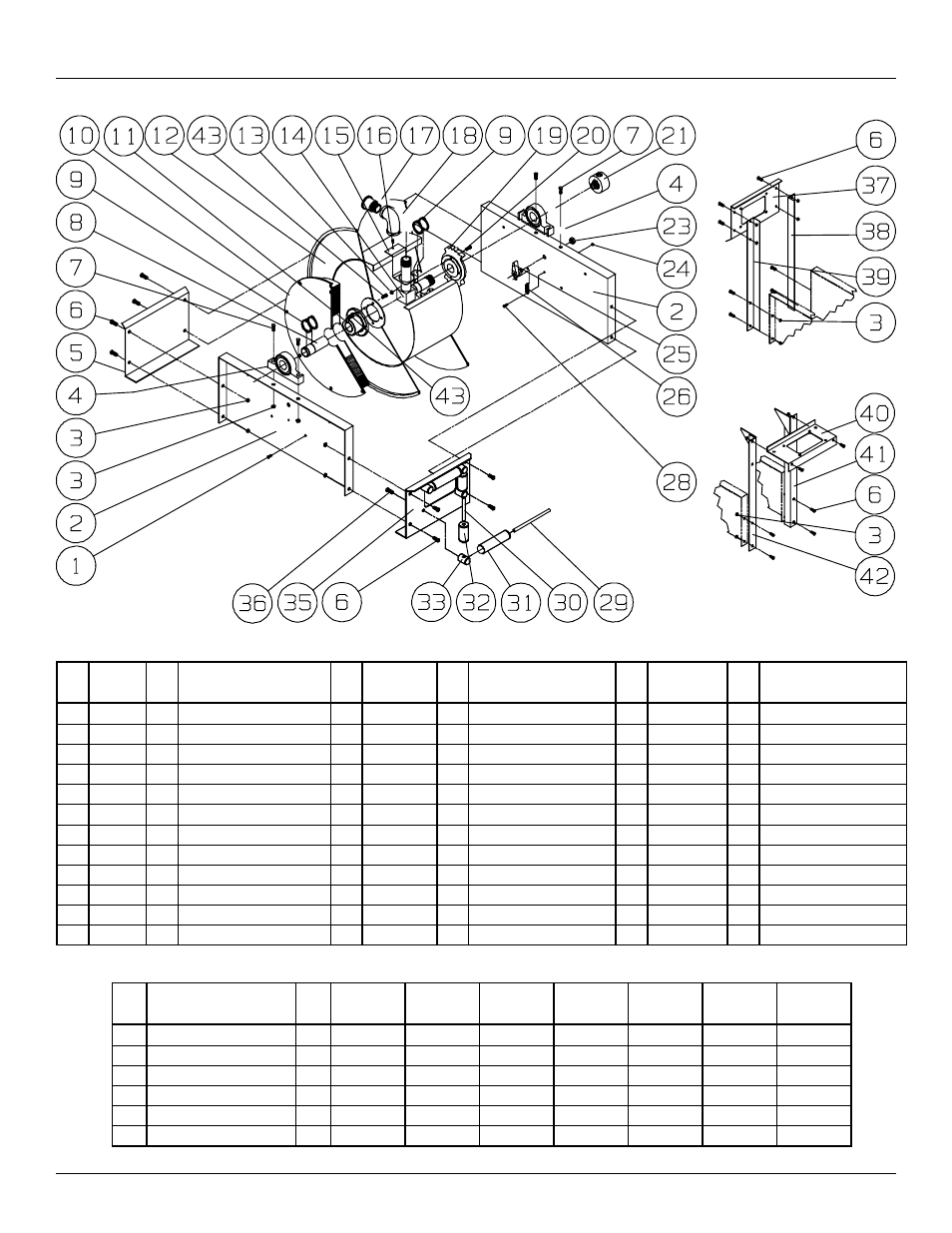

Series D9000 Spring Driven Hose Reels
Page 2
www.reelcraft.com
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
1
S2-41
4 1/4-20 x 1/2” hex screw
14
602365
1 1” Inlet tube
31 262436-5.468 2 Guide roller
2
270009
2 Side frame
15
270029
1 Hose outlet support
32 262436-2.968 2 Guide roller
3
S281-6 12 3/8-16 hex flange nut
16
S32-136
1 #10 x 3/8” self tap screw 33
S270014
4 Guide roller post
4 S270058 2 Pillow block
19
S270001
1 Latch ratchet hub
35
270011
1 Hose guide roller plate
5
270012
1 End frame support
20
S2-42
4 1/4-20 x 5/8” hex screw
36
S2-51
4 5/16-18 x 1/2” hex screw
6
S44-2
8 3/8-16 x 5/8” mach. screw 23
S280-8
1 1/2-20 hex flange nut
37
270045
1 Guide roller plate SW
7
S44-8
4 3/8-16 x 1 3/4” screw
24
S82-15
1 10-32 x 3/8” nyloc nut
38
270043
1 SW support bracket
8
602314
1 Support shaft
25
S600568
1 Latch pawl assembly
39
270042
1 SW support bracket
9 S140-31 6 Snap ring
26
S260067
1 Latch spring
40
270044
1 Guide roller plate TW
10 S270105 1 Spring & case assembly
28
S393-2
1 10-32 shoulder screw
41
270041
1 TW support bracket
11 S270002 1 Spring arbor
29
S270016
2 Guide roller pin - long
42
270040
1 TW support bracket
13 S281-4
8 1/4-20 hex flange nut
30
S270015
2 Guide roller pin - short
43
S328-29
4 5/16-18 x 1/2” screw
Item
#
Description
#
Req
E9300
OLPBW70
D9400
OLPBW70
D9200
OMPBW70
D9300
OMPBW70
D9400
OMPBW70
D9100
OHPBW118
D9305
OLPBW118
12 Sheave assembly
1
270107
270106
270107
270107
270106
270107-35 270107-35
17 Bushing
1
S301-113
None
S301-112
S301-113
None
None
S301-113
18 Female ell
1
S302-16
S302-16
S298-16
S298-16
S298-16
S25-26
S302-16
21 Swivel assembly
1
600495-1
600683-1
600494-1
600495-1
600683-1
602033
600495-1
-- Working pressure
--
500 PSI
500 PSI
3250 PSI
3000 PSI
3000 PSI
5000 PSI
5000 PSI
-- Max. temperature
--
210° F
210° F
210° F
210° F
210° F
210° F
210° F
