Reelcraft Series FF9000 Spring Driven Hose Reels (Low Pressure FFxxxxOLPBW) - Manual (Page 2)

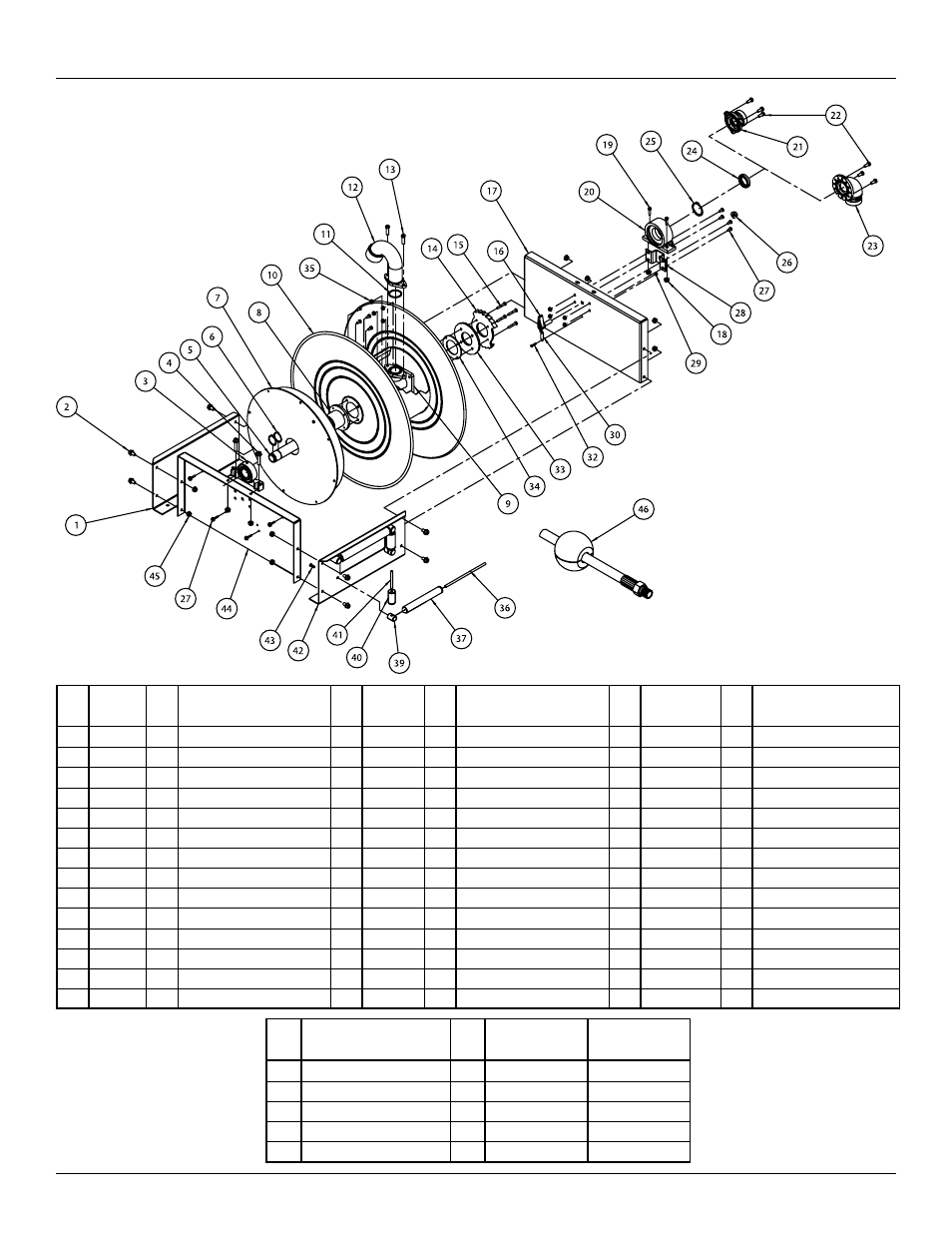

Series FF9000 Spring Driven Hose Reels
Page 2 www.reelcraft.com
Item
#
Description
#
Req FF9500 OLPBW FF9600 OLPBW
12 Outlet shaft 1 S261694-2 S261694-3
46 Hose bumper assembly 1 S600547-1 S600547-2
-- Hose ID and length -- 1¼” x 50’ 1½” x 50’
-- Working pressure -- 600 PSI 600 PSI
-- Max. temperature -- 210° F 210° F
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
1 261112 1 End frame 16 S600454 1 Latch pawl assembly 30 S260067 1 Latch spring
2 S44-2 8 3/8-16 x 5/8” screw 17 261703 1 Side frame 32 S393-2 1 10-32 shoulder screw
3 S600416 1 Pillow block 18 300107 2 5/16-18 hex nut 33 260586 1 Support washer
4 S44-8 4 3/8-16 x 1 3/4” screw 19 S2-55 2 5/16-18 x 1” screw 34 261116 1 Ratchet spacer
5 602313 1 Support shaft 20 600961 1 Bearing housing assembly 35 S281-4 12 1/4-20 hex nut
6 S140-34 2 Snap ring 21 S261692 1 Straight inlet 36 261110 2 Guide roller pin
7 S600545 1 Springcase assembly 22 S2-53 3 5/16-18 x 3/4” screw 37 262436-10.093 2 Guide roller - long
8 270888 1 Spring arbor 23 S261700 1 90° Adapter 39 S270014 4 Guide roller post
9 262270 1 Spindle 9000 24 S600947-2 1 Ring seal 40 262436-2.968 2 Guide roller - short
10 600543 1 Sheave assembly 25 S140-45 1 Snap ring 41 S270015 2 Guide roller pin
11 S211-224 1 O-ring 26 S280-8 1 1/2-20 hex nut 42 S600542 1 Roller bracket assembly
13 S44-3 2 3/8-16 x 1” screw 27 S2-41 12 1/4-20 x 1/2” screw 43 S2-51 4 5/16-18 x 1/2” screw
14 261115 1 Latch ratchet 28 260934 1 Latch bracket 44 270009 1 Side frame
15 S2-47 4 1/4-20 x 1½” screw 29 S82-15 1 10-32 nyloc nut 45 S281-6 10 3/8-16 hex nut
