Reelcraft Series E9000 Spring Driven Hose Reels (Medium Pressure ExxxxOMP) - Manual (Page 2)

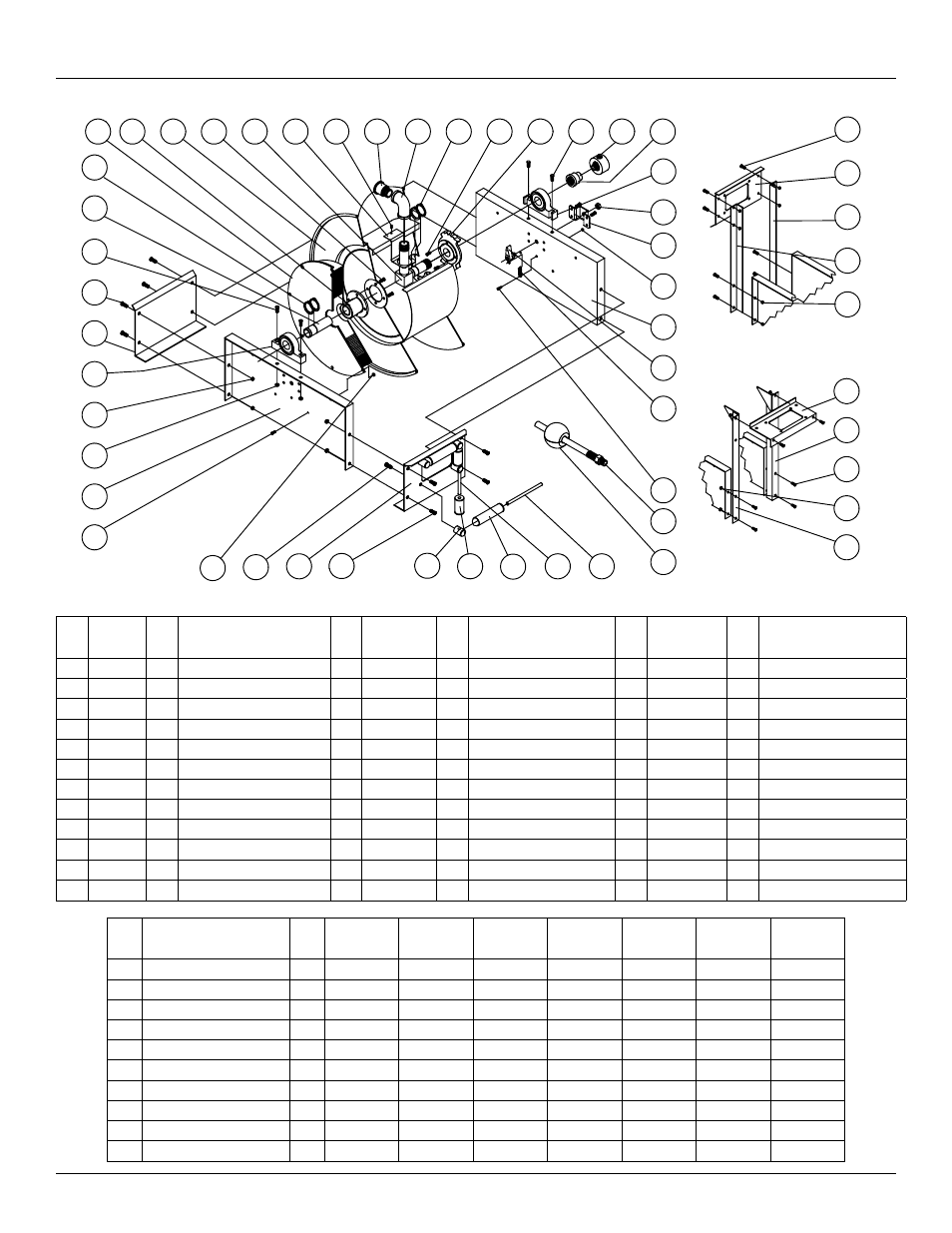

Series E9000 Spring Driven Hose Reels
Page 2 www.reelcraft.com
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
1 S2-41 16 1/4-20 x 1/2” hex screw 15 S32-136 1 #10 x 3/8” self tap screw 32 262436-5.468 2 Guide roller
2 270009 2 Side frame 17 270039 1 90° female NPT ell 33 262436-2.968 2 Guide roller
3 S281-6 12 3/8-16 hex flange nut 18 260889 1 Latch ratchet 34 S270014 4 Guide roller post
4 S600416 2 Pillow block 21 S280-8 1 1/2-20 hex flange nut 36 270011 1 Hose guide roller plate
5 270012 1 End frame support 22 260934 1 Latch bracket 37 S2-51 4 5/16-18 x 1/2” hex screw
6 S44-2 8 3/8-16 x 5/8” mach. screw 23 S82-15 1 10-32 x 3/8” nyloc nut 38 S281-4 8 1/4-20 hex nut
7 S44-8 4 3/8-16 x 1 3/4” screw 24 S600454 1 Latch pawl assembly 39 270045 1 Guide roller plate SW
8 602377 1 Support shaft 25 S260067 1 Latch spring 40 270043 1 SW support bracket
9 S140-34 6 Snap ring 27 S393-2 1 10-32 shoulder screw 41 270042 1 SW support bracket
11 260888 1 Spring arbor 30 S270016 2 Guide roller pin - long 42 270044 1 Guide roller plate TW
13 602364 1 Inlet tube 31 S270015 2 Guide roller pin - short 43 270041 1 TW support bracket
14 270029 1 Hose outlet support 44 270040 1 TW support bracket
Item
#
Description
#
Req E9200 OMP E9275 OMP E9300 OMP E9330 OMP E9350 OMP E9400 OMP E9450 OMP
10 Spring case assembly 1 600413-1 600413-1 S600413-2 S600413-2 S600413-2 S600413-2 S600413-2
12 Sheave assembly 1 600415 600415 600415 600415 600415 600414 600414
16 Reducing bushing 1 S174-112 S174-112 300055 300055 300055 None None
19 Swivel assembly 1 S602033 S602033 S602026 S602026 S602026 S600682 S600682
20 Reducing coupling 1 S290-5 S290-5 S290-6 S290-6 S290-6 None None
28 Hose assembly 1 None 24-260043 None 26-260043 27-260043 None 602574-50
29 Hose bumper assembly 1 None 2-HR1005 None 3-HR1005 3-HR1005 None A4-HR1005
-- Hose ID and length -- None 1/2” x 75’ None 3/4” x 30’ 3/4” x 50’ None 1” x 50’
-- Working pressure -- 3250 PSI 3250 PSI 3000 PSI 1250 PSI 1250 PSI 3250 PSI 3250 PSI
-- Max. temperature -- 210 °F 210 °F 210 °F 210 °F 210 °F 210 °F 210 °F
1
2
3
3
4
5
6
7
8
9
10 11 12 1 13
4
21
22
23
2
24
25
27
28
29
30 31 32 33 34 6 37 38
42
43
6
3
44
6
39
40
3
41
14 15 16 17 9 1 18 7 19 20
36
