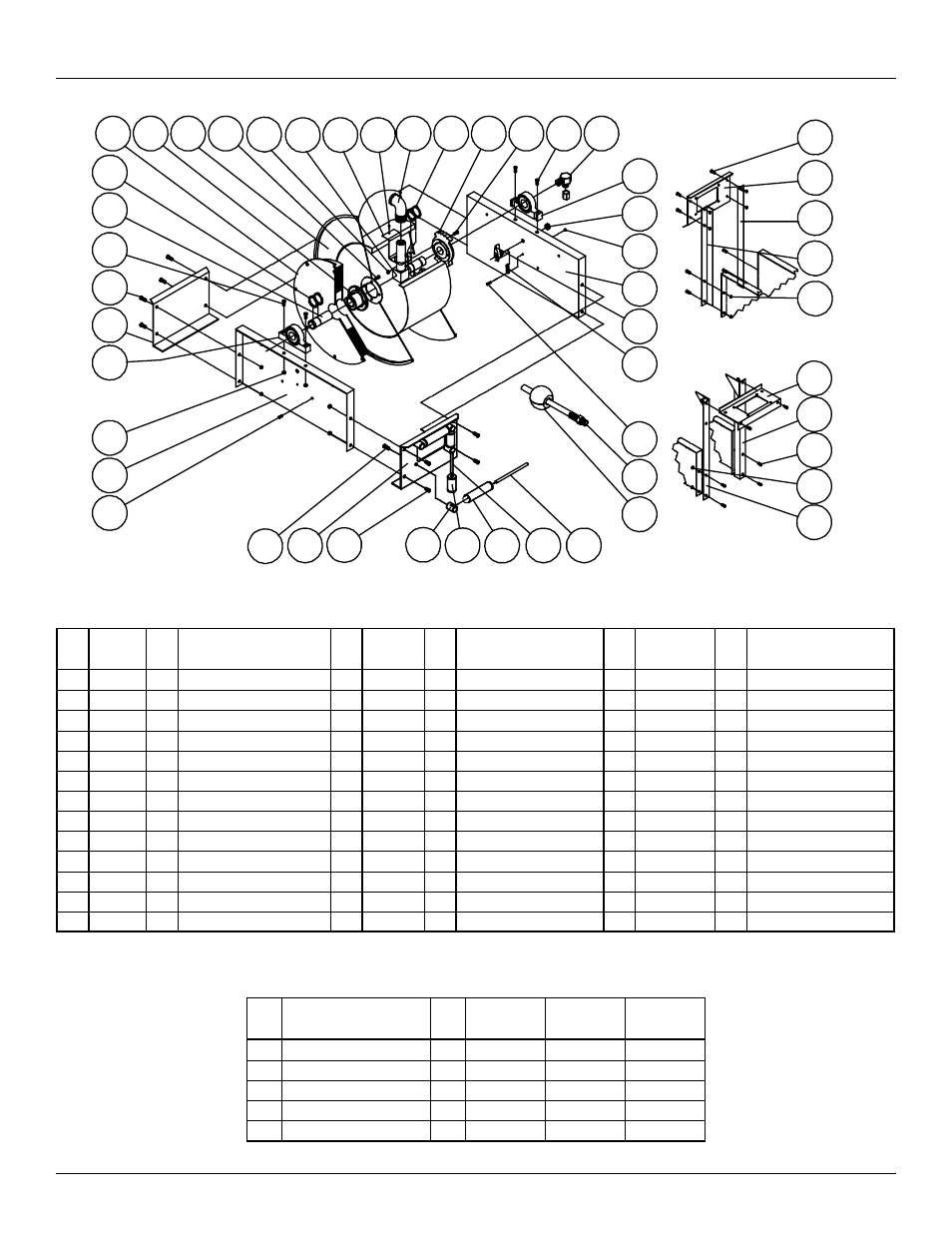

Series D9000 Spring Driven Hose Reels
Page 2 www.reelcraft.com
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
1 S2-41 4 1/4-20 x 1/2” hex screw 14 S270063 1 1” Inlet tube 31 S270015 2 Guide roller pin - short
2 270009 2 Side frame 15 270029 1 Hose outlet support 32 262436-5.468 2 Guide roller
3 S281-6 12 3/8-16 hex flange nut 16 S32-136 1 #10 x 3/8” self tap screw 33 262436-2.968 2 Guide roller
4 S270058 2 Pillow block 17 S257-26 1 Swivel union, 90° 34 S270014 4 Guide roller post
5 270012 1 End frame support 18 S270001 1 Latch ratchet hub 35 270011 1 Hose guide roller plate
6 S44-2 8 3/8-16 x 5/8” mach. screw 19 S2-42 4 1/4-20 x 5/8” hex screw 36 S2-51 4 5/16-18 x 1/2” hex screw
7 S44-8 4 3/8-16 x 1 3/4” screw 20 S602033 1 Swivel Assembly 38 270045 1 Guide roller plate SW
8 602314 1 Support shaft 22 S280-8 1 1/2-20 hex flang nut 39 270043 1 SW support bracket
9 S140-31 6 Snap ring 23 S82-15 1 10-32 x 3/8” nyloc nut 40 270042 1 SW support bracket
10 S270105 1 Spring & case assembly 24 S600018 1 Latch pawl assembly 41 270044 1 Guide roller plate TW
11 S270002 1 Spring arbor 25 S260067 1 Latch spring 42 270041 1 TW support bracket
12 270107 1 Sheave assembly 27 S393-2 1 10-32 shoulder screw 43 270040 1 TW support bracket
13 S281-4 8 1/4-20 hex flange nut 30 S270016 1 Guide roller pin - long 44 S328-29 4 5/16-18 x 1/2” screw
Item
#
Description
#
Req D9100 OHP D9150 OHP D9175 OHP
28 Hose assembly 1 None 19-260044 18-260044
29 Hose bumper assembly 1 None 2-HR1005 2-HR1005
-- Hose ID and length -- None 3/8” x 50’ 3/8” x 75’
-- Working pressure -- 5000 PSI 4800 PSI 4800 PSI
-- Max. temperature -- 210° F 210° F 210° F
1
2
3
4
5
6
7
8
9
10 11 12 44 13 14 15 16 17
37 36 6 34 33 32 31 30
29
28
27
25
24
2
23
22
4
20 7 19 18 9 6
38
39
40
3
41
42
6
3
43
