Series M80000 Spring Driven Hose Reels
www.reelcraft.com Page 3

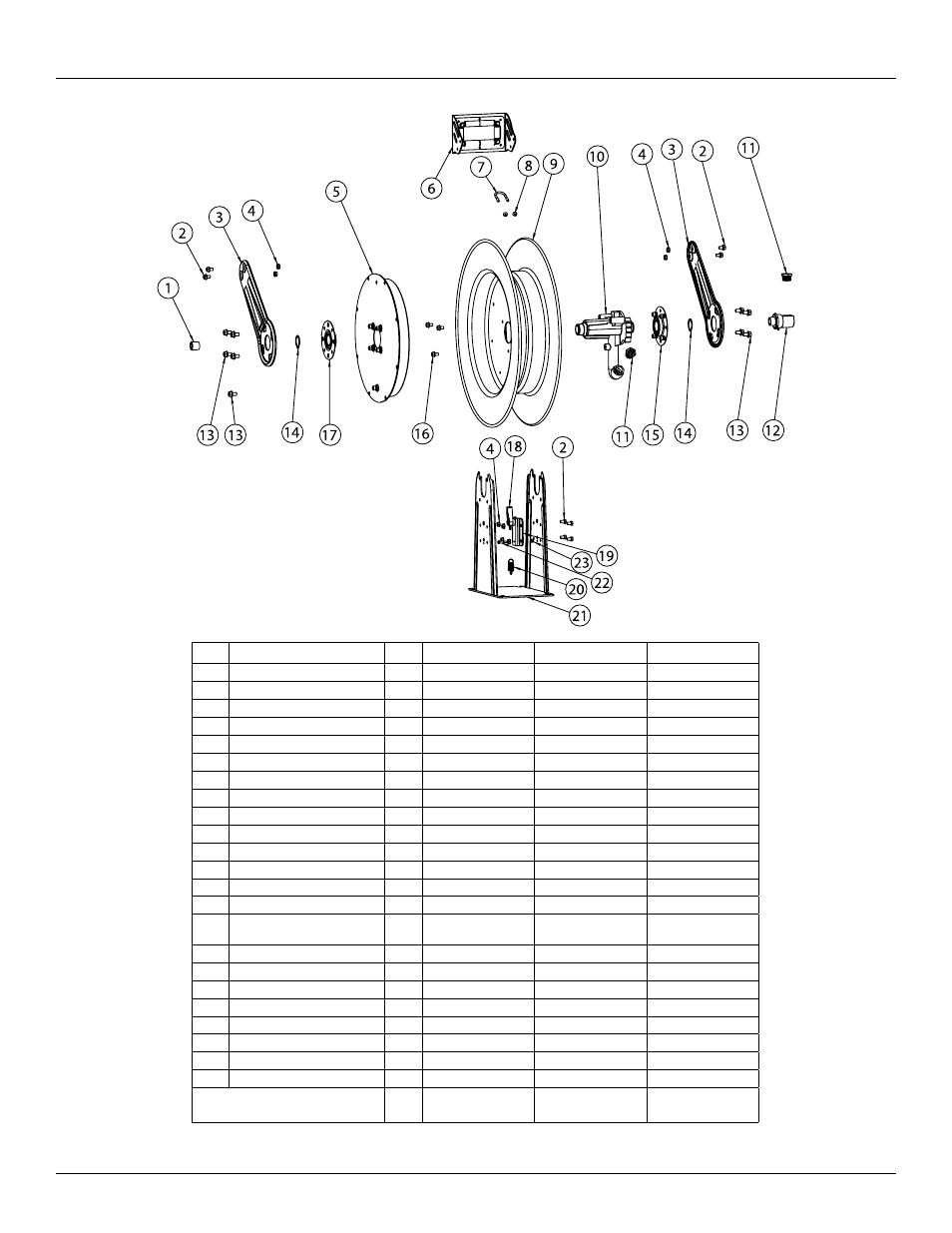

ITEM DESCRIPTION QTY. M82000 OMP118 M83000 OMP118 M81000 OHP118
1 Pipe Plug 1 * * *
2 5/16-18 x 1/2” Screw 9 602487 602487 602487
3 Guide Arm 2 261299 261299 261299
4 5/16-18 Lock Nut 8 * * *
5 Spring & Case Assembly 1 600653-2-35 600653-1-35 600645-2-35
6 Roller Bracket Assembly 1 S600642 S600642 S600642
7 U-bolt 1 3-117440 5-117440 3-117440
8 1/4-20 Lock Nut 2 261650-1 261650-1 261650-1
9 Sheave Assembly 1 600649-35 600649-35 600649-35
10 Ratchet, Flow Casting 1 261306-4 261306-4 600667-5
11 Adapter 2 S382-19 None None
12 Swivel Assembly 1 602487 602487 602487
13 3/8-16 x 5/8” Screw 9 * * *
14 1 3/8” Snap Ring 2 * * *
15 Flange W/Bearing & Nut-Sert
Assembly
1 S600651 S600651 S600651
16 Machine Screw 5/16-18 x 1/2 7 S44-10 S44-10 S44-10
17 Bearing & Flange Assembly 1 S600644 S600644 S600644
18 Latch Pawl Assembly 1 S600018 S600018 S600675
19 Latch Mounting Bracket 1 261303 261303 None
20 Latch Spring 1 S260067 S260067 S260067
21 Base & Upright Assembly 1 600641 600641 600641
22 Shoulder Screw 1 S393-2 S393-2 S393-2
23 Nyloc Nut 1 S82-15 S82-15 S82-15
Latch Pawl & Mounting Bracket
Assembly - Items 18/19/20/22/23
1 S600643 S600643 None
*Included in hardware kit part number 602504
