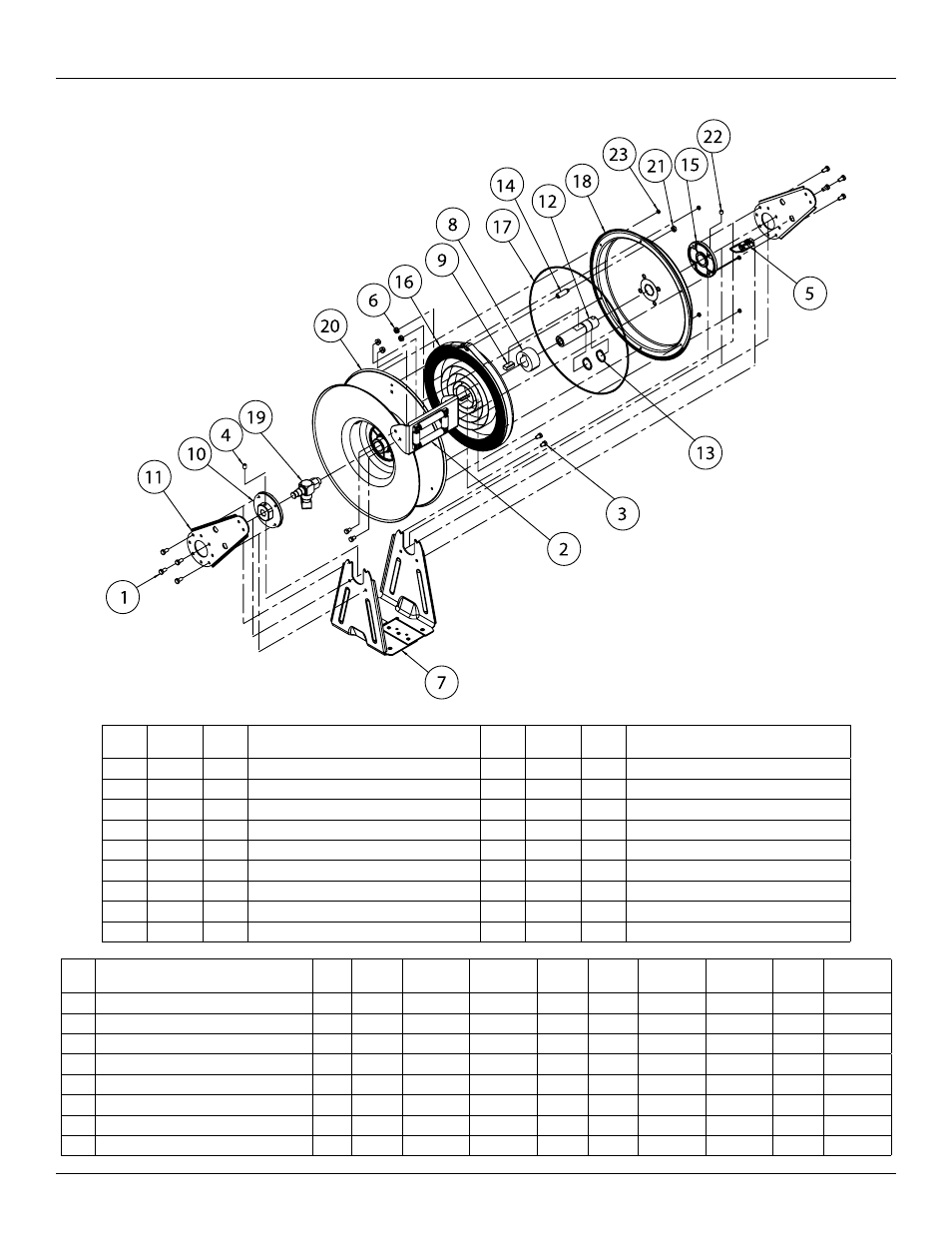

Series DP5000 Spring Driven Hose Reels
Page 4 www.reelcraft.com
ITEM
NO.
PART
NO.
NO.
REQ’D
DESCRIPTION
ITEM
NO.
PART
NO.
NO.
REQ’D
DESCRIPTION
1 S2-52 8 HEX CAP SCREW, 5/16-18 X 5/8” LONG 13 300007 2 SNAP RING (EXTERNAL)
3 S2-51 4 HEX CAP SCREW, 5/16-18 X 1/2” LONG 14 S260031 1 SPRING CASE STUD
4 300006 4 SET SCREW, 3/8-16 X 1/2” LONG 15 S262115 1 HUB A
5 S602144 1 LATCH PAWL ASSEMBLY 17 260901 1 SPRING CASE GASKET
6 300107 4 HEX LOCK NUT, 5/16-18 18 602372 1 SPRING CASE AND RATCHET ASS’Y
8 261274 1 SPRING ARBOR 21 S76-106 1 HEX JAM NUT, 3/8-24
9 261275 1 ARBOR KEY 22 300121 1 SET SCREW, 3/8-16 X 3/8” LONG
10 S262116 1 HUB B 23 S300011 6 HEX LOCK NUT, 10-32
11 262441 2 GUIDE ARM
ITEM
NO.
DESCRIPTION
NO.
REQ’D
DP5400
OLP
DP5435
OLP
DP5450
OLP
DP5600
OLP
DP5605
OLP
DP5635
OLP
DP5650
OLP
DP5800
OLP
DP5835
OLP
2 GUIDE ROLLER BRACKET ASSEMBLY 1 S602143 S602143 S602143 S602143S602142 S602143 S602142 S602142 S602142
7 BASE ASSEMBLY 1 602141 602141 602141 602141 602140 602141 602140 602140 602140
12 MAIN SHAFT 1 S262120 S262120 S262120 S262120 262119 S262120 262119 262119 262119
16 DRIVE SPRING ASSEMBLY 1 262439 262439 262439 262439 262440 262439 262440 S260028 S260028
19 SWIVEL ASSEMBLY 1 602154 602154 602154 602145 602145 602145 602145 602145 602145
20 SPOOL ASSEMBLY 1 S602370 S602370 S602370 S602370S602371 S602370 S602371 S602371 S602371
HOSE ASSEMBLY 1 NONE 601070-35 601070-50 NONE NONE 601014-35 601017-50 NONE 601021-35
HOSE BUMPER ASSEMBLY 1 NONE A1-HR1004-A A1-HR1004-A NONE NONE A1-HR1004 A1-HR1004 NONE A2-HR1004-3
