Reelcraft Series 4000 Spring Driven Hose Reels (Low Pressure) - Manual (Page 2)

Series 4000 Spring Driven Hose Reels
Page 2 www.reelcraft.com
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15 16 17
18
19
20
21
22
23
24
25
26
27
28 29
30

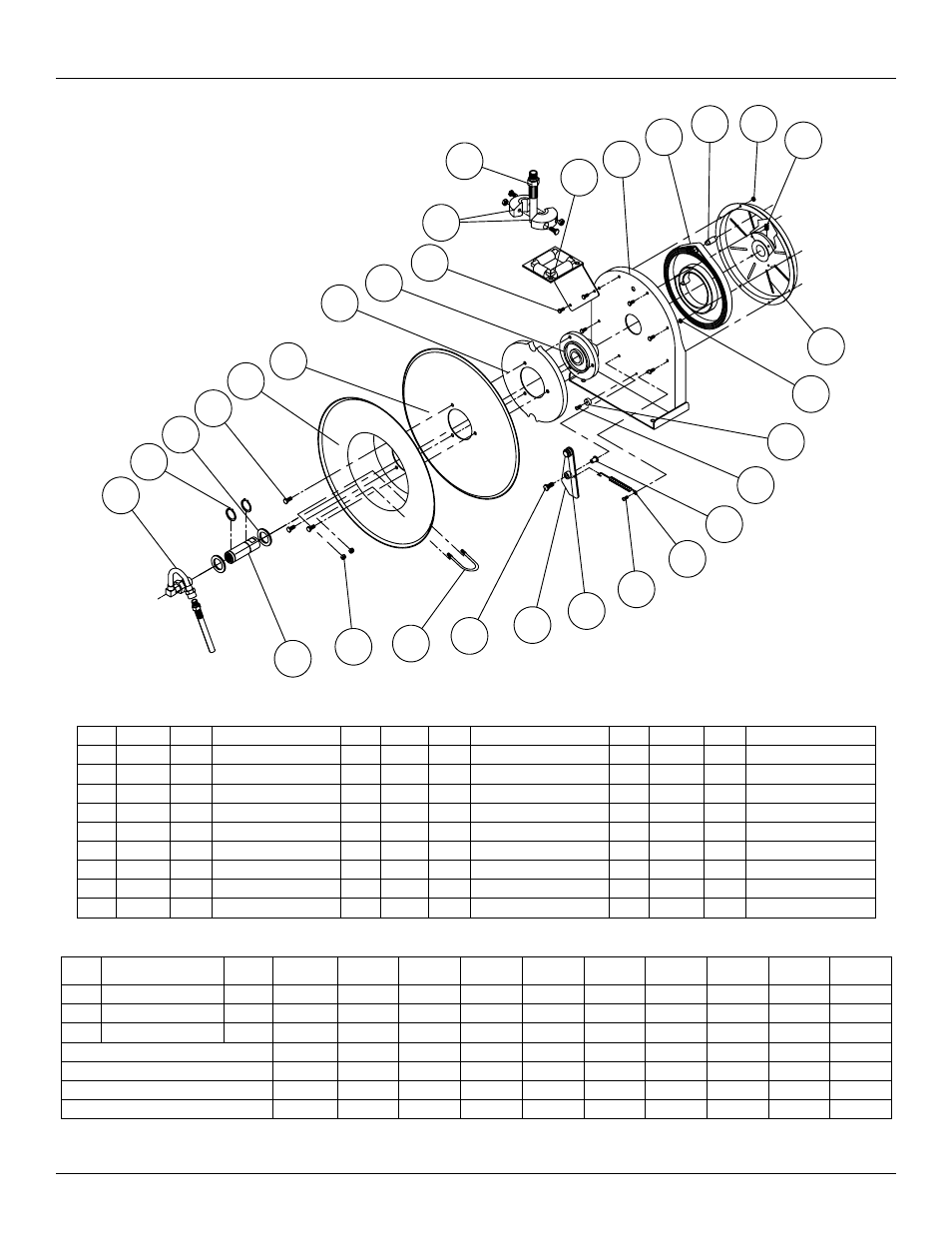

Item # Part # # Req. Description Item # Part # # Req. Description Item # Part # # Req. Description
1 S600886 1 Swivel Assembly 12 S400107 1 Guide Arm Assembly 22 S400012 1 Latch Bushing
2 300031 2 1” Snap Ring 13 400101 1 Base Assembly 23 S400018 1 Latch Spring
3 300034 2 Spacing Washer 15 S261360 1 Spring Case Stud 24 300001 5 10-32 x 3/8” Screw
4 S295-102 3 1/4” Plastite Hex Screw 16 S300011 7 10-32 Hex Lock Nut 25 400020 1 O-ring
5 400005 1 Flange Assembly 17 300006 1 3/8-16 x 1/2” Set Screw 26 S400109 1 Latch Plate Assembly
6 400006 1 Sheave Disk 18 S400103 1 Spring Case Assembly 27 300035 1 10-32 x 1” Mach. Screw
7 S400019 1 Latch Cam 19 S82-15 1 10-32 x 3/8” Nyloc Nut 28 3-117440 1 U-bolt
8 S260648 1 Spring Arbor 20 S400021 1 Latch Bumper 29 261650-1 2 1/4-20 Zinc Nyloc Nut
9 300002 2 10-32 x 1/2” Screw 21 S32-136 1 10-24 x 3/8” Mach. Screw 30 S400015 1 Main Shaft
Item # Description # Req. 4400 OLP 4420 OLP 4425 OLP 4430 OLP 4435 OLP 4600 OLP 4615 OLP 4617 OLP 4620 OLP 4625 OLP
10 Hose Bumper Assembly 1 None A1-HR1004A A1-HR1004A A1-HR1004A A1-HR1004A None A1-HR1004 A1-HR1004 A1-HR1004 A1-HR1004
11 Hose Assembly 1 None 601001-20 601001-25 601000-30 601001-35 None 601013-15 601011-17 601011-20 601013-25
14 Drive Spring Assembly 1 S400030 S400030 S400030 S400030 S400030 S404230 S404230 S404230 S404230 S404230
Hose I.D. and Length None 1/4” x 20’ 1/4” x 25’ 1/4” x 30’ 1/4” x 35’ None 3/8” x 15’ 3/8” x 17’ 3/8” x 20’ 3/8” x 25’
Reel Inlet Connection 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T.
Max. Operating Pressure 500 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 500 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I.
Max. Operating Temperature 210° F 150° F 150° F 150° F 150° F 210° F 150° F 150° F 150° F 150° F
