Series 4000 Spring Driven Hose Reels
Page 2 www.reelcraft.com

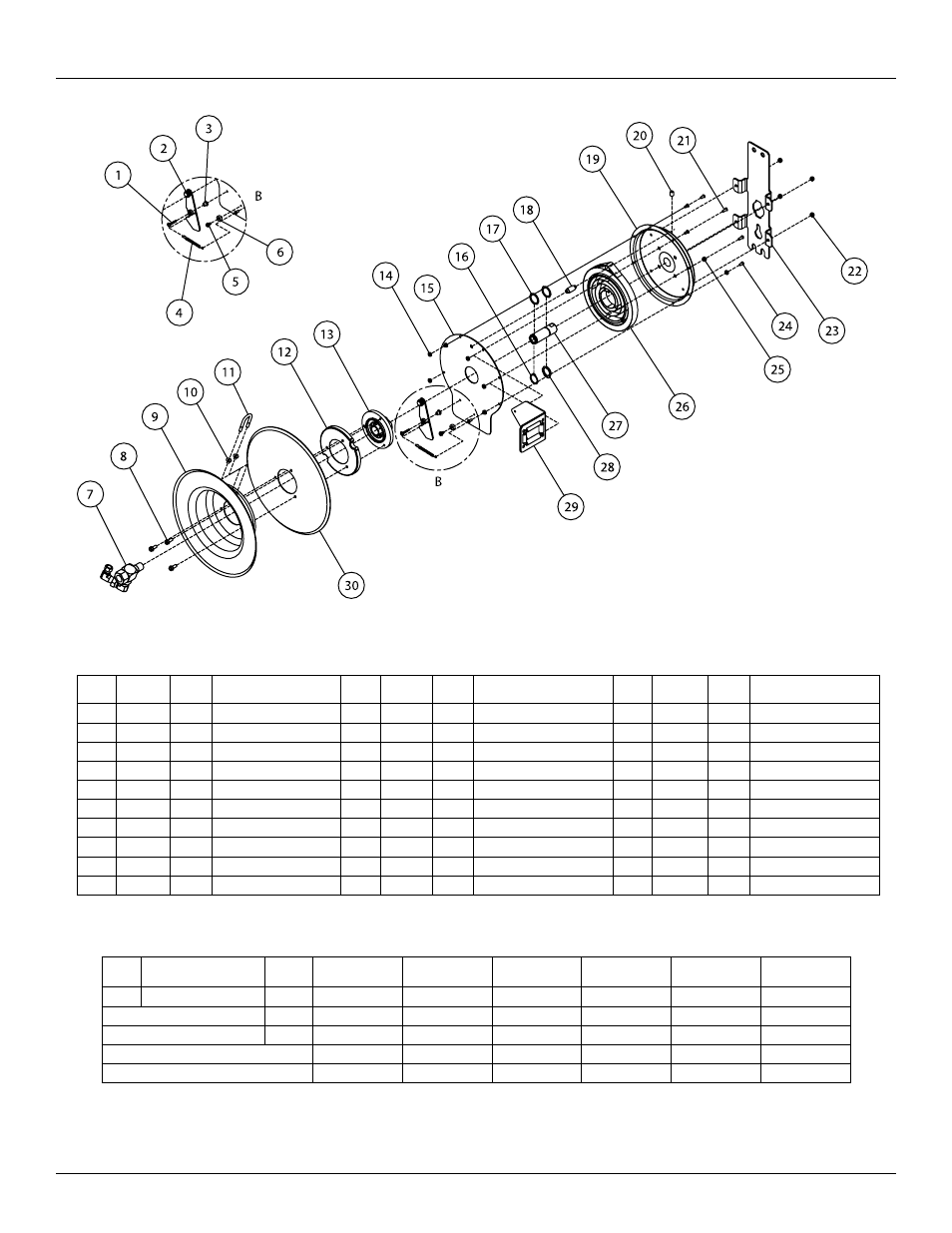

Item
#
Part #
#
Req.
Description
Item
#
Part #
#
Req.
Description
Item
#
Part #
#
Req.
Description
1 S300011 1 Machine Screw 11 3-117440 1 U-Bolt 21 300002 2 Machine Screw
2 S400109 1 Latch Plate Assembly 12 S400019 1 Latch Cam 22 S82-15 4 Lock Nut
3 S400012 1 Latch Bushing 13 S260648 1 Spring Arbor 23 262503 1 Side Mount Plate
4 S400018 1 Latch Plate Screw 14 S300011 7 Hex Lock Nut 24 300001 5 Machine Screw
5 S32-136 1 Self Tapping Screw 15 262493 1 Spring Case Cover 25 S82-15 1 Lock Nut
6 S400021 1 Latch Plate Bumper 16 300031 1 Snap Ring 27 S400015 1 Main Shaft
7 602330 1 Swivel Assembly 17 300034 2 Wear Washer 28 S137-12 1 Snap Ring
8 S295-102 3 Self Tapping Screw 18 S261360 1 Spring Case Stud 29 S400107 1 Guide Arm
9 400005 1 Sheave Flange 19 602434 1 Spring Case Assembly 30 262493 1 Sheave Disc
10 261650-1 2 Lock Nut 20 300006 1 Set Screw
Item
#
Description
#
Req. 4425 OLPSMR 4425 OLPSML 4435 OLPSMR 4435 OLPSML 4625 OLPSMR 4625 OLPSML
26 Drive Spring Assembly 1 400020 400020 S400030 S400030 S404230 S404230
Hose Assembly 1 601001-25 601001-25 601001-35 601001-35 601013-25 601013-25
Hose Bumper Assembly 1 A1-HR1004-A A1-HR1004-A A1-HR1004-A A1-HR1004-A A1-HR1004 A1-HR1004
Max. Operating Pressure 300 PSI 300 PSI 300 PSI 300 PSI 300 PSI 300 PSI
Max. Operating Temperature 150° F 150° F 150° F 150° F 150° F 150° F
