Series D8000 Spring Driven Hose Reels
Page 2 www.reelcraft.com

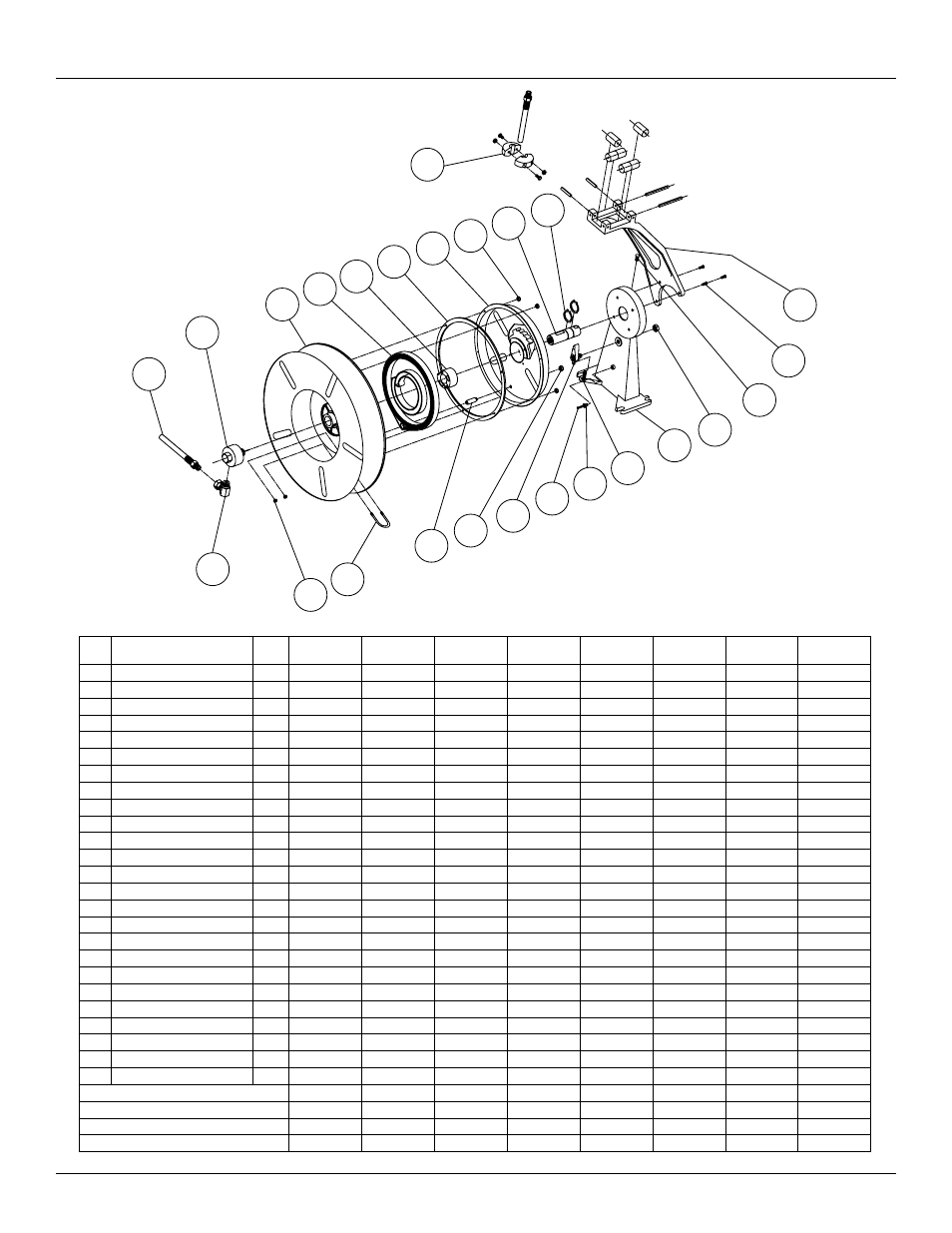

Item
#
Description
#
Req. D8600 OMP D8630 OMP D8640 OMP D8650 OMP D8800 OMP D8830 OMP D8840 OMP D8850 OMP
1 Hose Assembly 1 None 3-260043 4-260043 5-260043 None 6-260043 7-260043 8-260043
2 Swivel Assembly 1 S600300 S600300 S600300 S600300 S600300 S600300 S600300 S600300
3 Sheave Assembly 1 S260011 S260011 S260011 S260011 S260011 S260011 S260011 S260011
4 Drive Spring Assembly 1 S260053 S260053 S260053 S260053 S260053 S260053 S260053 S260053
5 Spring Arbor Assembly 1 S600621 S600621 S600621 S600621 S600621 S600621 S600621 S600621
6 Gasket 1 S260069 S260069 S260069 S260069 S260069 S260069 S260069 S260069
7 Spring Case Assembly 1 S260074 S260074 S260074 S260074 S260074 S260074 S260074 S260074
8 10-32 Hex Nut 6 S300011 S300011 S300011 S300011 S300011 S300011 S300011 S300011
9 Main Shaft 1 260442-1 260442-1 260442-1 260442-1 260442-1 260442-1 260442-1 260442-1
10 1¼” Snap Ring 3 300007 300007 300007 300007 300007 300007 300007 300007
11 Hose Bumper 1 None A1-HR1004-3 A1-HR1004-3 A1-HR1004-3 None A2-HR1004-3 A2-HR1004-3 A2-HR1004-3
13 Guide Arm / Roller Assembly 1 260007 260007 260007 260007 260007 260007 260007 260007
14 5/16-18 x 1¼” Screw 3 507286 507286 507286 507286 507286 507286 507286 507286
15 1/2-13 Set Screw 1 S35-86 S35-86 S35-86 S35-86 S35-86 S35-86 S35-86 S35-86
16 1/2-20 Hex Nut 1 S280-8 S280-8 S280-8 S280-8 S280-8 S280-8 S280-8 S280-8
17 Base Casting 1 260073 260073 260073 260073 260073 260073 260073 260073
18 Latch Spring 1 S260067 S260067 S260067 S260067 S260067 S260067 S260067 S260067
19 Latch Bushing 1 S400012 S400012 S400012 S400012 S400012 S400012 S400012 S400012
20 10-24 x 1” Screw 1 300042 300042 300042 300042 300042 300042 300042 300042
21 Latch Pawl Ass’y 1 S600083 S600083 S600083 S600083 S600083 S600083 S600083 S600083
22 3/8-24 Hex Jam Nut 1 S76-106 S76-106 S76-106 S76-106 S76-106 S76-106 S76-106 S76-106
23 Spring Case Stud 1 S260031 S260031 S260031 S260031 S260031 S260031 S260031 S260031
24 U-bolt 1 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440
25 1/4-20 Nyloc Nut 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
27 Swivel Union 1 S257-26 S257-26 S257-26 S257-26 S257-26 S257-26 S257-26 S257-26
Hose I.D. and Length 3/8” x 50’ 3/8” x 30’ 3/8” x 40’ 3/8” x 50’ 1/2” x 50’ 1/2” x 30’ 1/2” x 40’ 1/2” x 50’
Reel Inlet Connection 1/2” FPT 1/2” FPT 1/2” FPT 1/2” FPT 1/2” FPT 1/2” FPT 1/2” FPT 1/2” FPT
Max. Operating Pressure 3000 PSI 2600 PSI 2600 PSI 2600 PSI 3250 PSI 3250 PSI 3250 PSI 3250 PSI
Max. Operating Temperature 210° F 210° F 210° F 210° F 210° F 210° F 210° F 210° F
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
23
24
25
27
