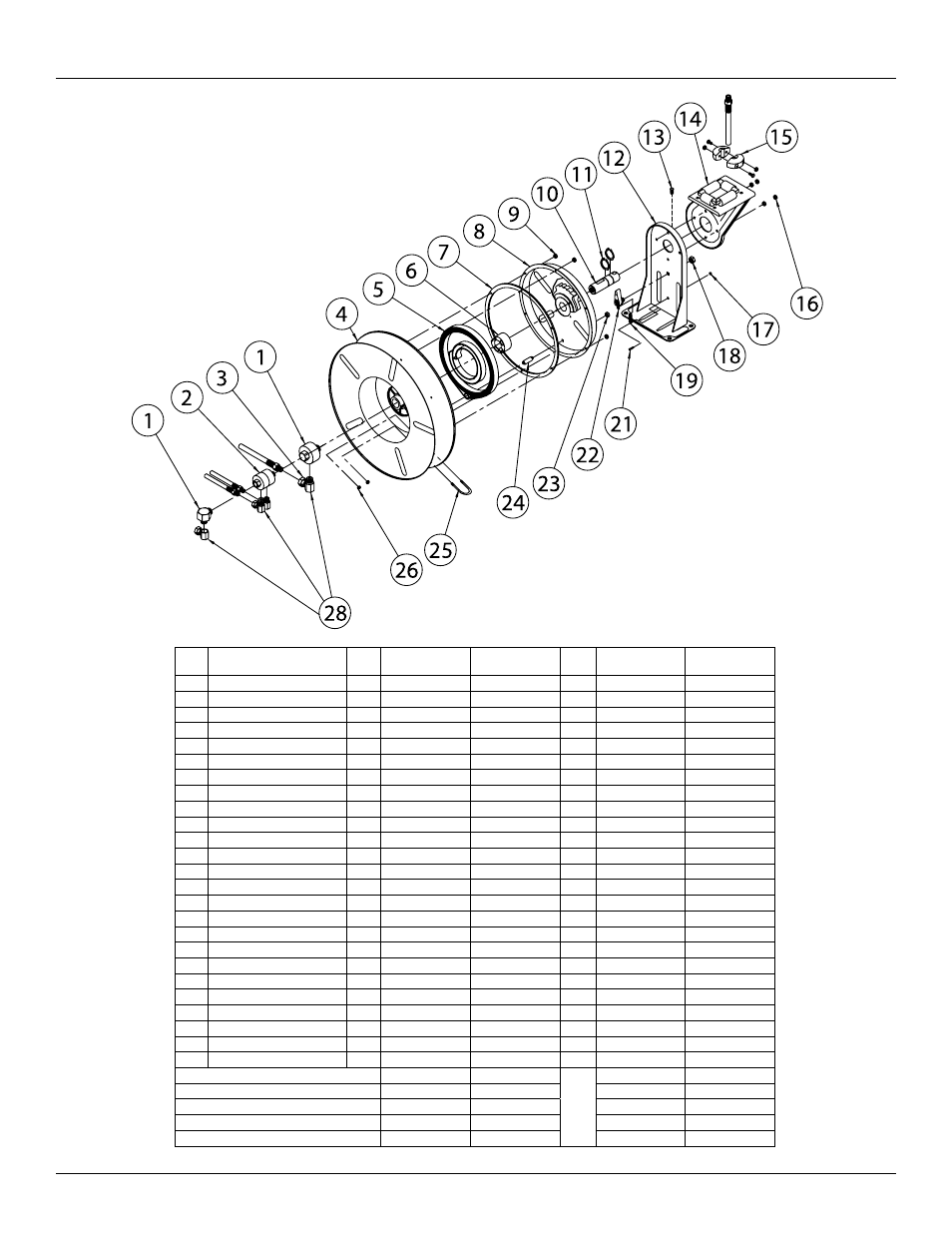

Series F7000 Spring Driven Hose Reels
www.reelcraft.com
Page 3
Item
#
Description
#
Req.
F7600 OLP
F7800 OLP
#
Req.
F7900 OLP
F7925 OLP
1
Swivel Assembly
1
S600888-2
S600888-2
1
S602026-2
S602026-2
3
90° Ell
1
None
None
1
S157-4
S157-4
4
Sheave Assembly
1
S260011
S260011
1
S260011
S260011
5
Drive Spring Assembly
1
S260028
S260037
1
S600023
S600023
6
Spring Arbor Assembly
1
S600621
S600621
1
S600621
S600621
7
Gasket
1
S260069
S260069
1
S260069
S260069
8
Spring Case Assembly
1
S260074
S260074
1
S260074
S260074
9
10-32 Hex Locknut
6
S300011
S300011
6
S300011
S300011
10 Main Shaft
1
S260095
S260095
1
260095-1
260095-1
11 1 1/4” Snap Ring
1
300007
300007
1
300007
300007
12 Base Assembly
1
S600016
S600016
1
S600016
S600016
13 1/2-13 Set Screw
1
S35-84
S35-84
1
S35-84
S35-84
14 Guide arm with Rollers
1
S600017
S600017
1
S600017
S600017
15 Hose Bumper Assembly
1
None
None
1
None
A3-HR1004-3
16 5/16-18 Locknut
4
300107
300107
4
300107
300107
17 10-32 x 3/8” Nyloc Nut
1
S82-15
S82-15
1
S82-15
S82-15
18 1/2-20 x 5/8” Hex Nut
1
S280-8
S280-8
1
S280-8
S280-8
19 Latch Spring
1
S260067
S260067
1
S260067
S260067
21 10-32 Shoulder Screw
1
S393-2
S393-2
1
S393-2
S393-2
22 Latch Pawl Assembly
1
S600018
S600018
1
S600018
S600018
23 3/8-24 Jam Nut
1
S76-106
S76-106
1
S76-106
S76-106
24 Spring Case Stud
1
S260031
S260031
1
S260031
S260031
25 U-bolt
1
3-117440
3-117440
1
5-117440
5-117440
26 1/4-20 x 3/8” Locknut
2
261650-1
261650-1
4
300070
300070
28 Swivel Union
1
S257-26
S257-26
1
None
None
Hose Assembly
None
None
None
600160-1
Hose I.D. x Length
None
None
None
3/4” x 25’
Reel Inlet Connection
1/2” FPT
1/2” FPT
3/4” FPT
3/4” FPT
Max. Operating Pressure
500 PSI
500 PSI
500 PSI
50 PSI
Max. Operating Temperature
210° F
210° F
210° F
150° F
