Series 7000 Spring Driven Hose Reels
Page 2 www.reelcraft.com

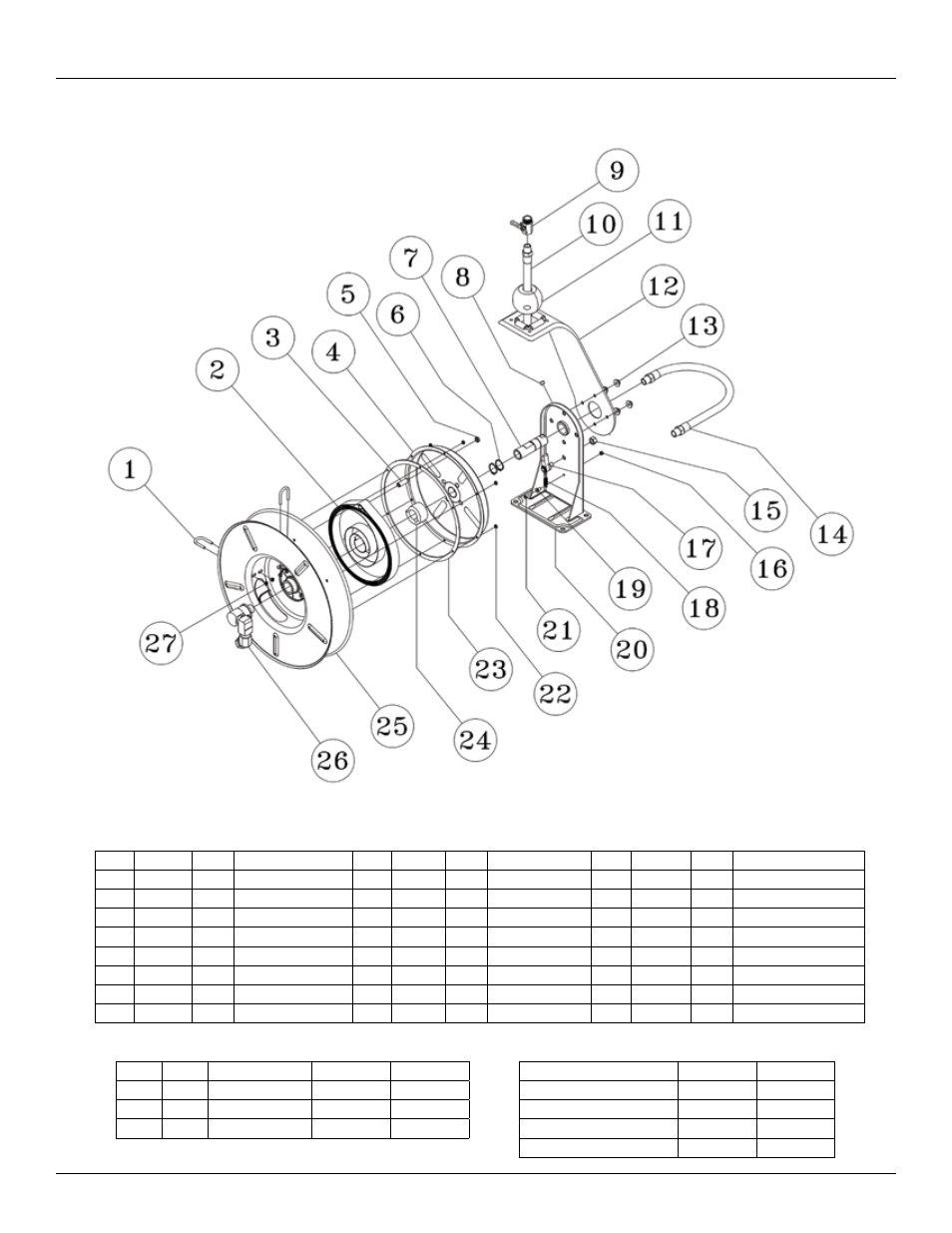

Item # Part # # Req. Description Item # Part # # Req. Description Item # Part # # Req. Description
1 5-117440 2 U-bolt 12 S600017 1 Guide Arm Ass’y 20 S600016 1 Base Ass’y
2 S260037 1 Drive Spring Ass’y 13 300107 4 Lock Nut 21 S20-110 1 Machine Screw
3 S260031 1 Spring Case Stud 14 600830-10 1 Hose Ass’y 22 S300011 6 Hex Lock Nut
4 S260074 1 Spring Case & Ratchet 15 S280-8 1 Hex Flange Nut 23 S260069 1 Spring Case Gasket
5 S76-106 1 Hex Jam Nut 16 S82-15 4 Nyloc Nut 24 S600621 1 Spring Arbor & Key Ass’y
6 300007 2 Snap Ring 17 S600018 1 Latch Pawl Ass’y 25 S260011 1 Sheave Ass’y
7 260095-1 1 Main Shaft 18 S260067 1 Latch Spring 26 600242 1 Swivel & Ell Ass’y
8 S35-84 1 Set Screw 19 S400012 1 Latch Bushing 27 300070 4 Nyloc Nut
Item # # Req. Description GC7535 OLP GC7925 OLP
9 1 Garden Hose Valve None 261447
10 1 Hose Assembly 601046-35 601044-25
11 1 Hose Assembly 600830-10 600830-10
GC7535 OLP GC7925 OLP
Hose I.D. and Length 5/8” x 35’ 3/4” x 25’
Reel Inlet Connection 3/4” N.P.T. 3/4” N.P.T.
Max. Operating Pressure 200 P.S.I. 200 P.S.I.
Max. Operating Temperature 210°F 210°F
