Reelcraft Series 7000 Spring Driven Hose Reels (Low, Medium and High Pressure xxxxELP, xxxxEMP) - Manual (Page 7)

Series 7000 Carreteles para Mangueras
www.reelcraft.com Page 7

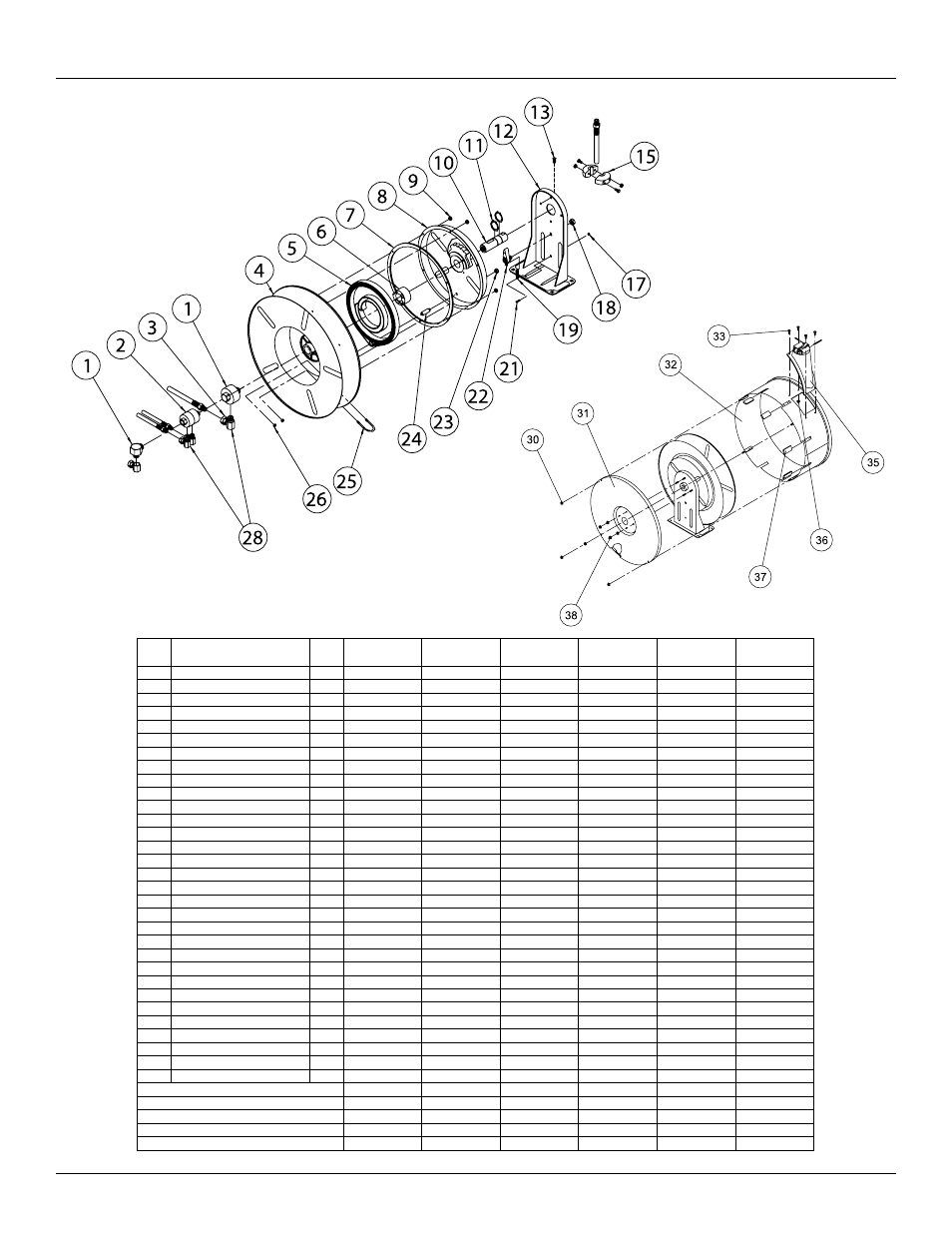

ART.
NO.
Descripción
NO.
REQ. 7600 ELP
7640 ELP 7650 ELP 7670 ELP 7800 ELP 7830 ELP
1 Eje giratorio emsamblado 1 S600923-1 S600923-1 S600923-1 S600923-1 S600923-1 S600923-1
3 Codo de 90 grados 1 None None None None None None
4 Polea ensamblada 1 S260011 S260011 S260011 S260011 S260011 S260011
5 Resorte ensamblado de propulcion 1 S260028 S260028-1 S260028-1 S260028-1 S260037 S260037
6 Resorte del arbol 1 S600621 S600621 S600621 S600621 S600621 S600621
7 Empaque 1 S260069 S260069 S260069 S260069 S260069 S260069
8 Resorte de la caja ensamblada 1 S260074 S260074 S260074 S260074 S260074 S260074
9 10-32 Tuerca hexagonal 6 S300011 S300011 S300011 S300011 S300011 S300011
10 Columna principal 1 S260095 S260095 S260095 S260095 S260095 S260095
11 1 1/4” Anillo de resorte 1 300007 300007 300007 300007 300007 (x2) 300007
12 Base ensamblada 1 S600016 S600016 S600016 S600016 S600016 S600016
13 1/2-13 Tornillo 1 S35-84 S35-84 S35-84 S35-84 S35-84 S35-84
15 Manguera del parachoque ensamblada 1 None A1-HR1004-3 A1-HR1004-3 A1-HR1004-3 None A2-HR1004-3
17 10-32 x 3/8” écrou Nyloc 1 S82-15 S82-15 S82-15 S82-15 S82-15 S82-15
18 1/2-20 x 5/8” écrou hexagonal 1 S280-8 S280-8 S280-8 S280-8 S280-8 S280-8
19 Ressort de loquet 1 S260067 S260067 S260067 S260067 S260067 S260067
21 10-32 tornillo de hombro 1 S393-2 S393-2 S393-2 S393-2 S393-2 S393-2
22 Assemblage de cliquet 1 S600018 S600018 S600018 S600018 S600018 S600018
23 3/8-24 contre-écrou 1 S76-106 S76-106 S76-106 S76-106 S76-106 S76-106
24 Boulon de boîtier de ressort 1 S260031 S260031 S260031 S260031 S260031 S260031
25 Tornillo “u” 1 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440
26 1/4-20 x 3/8” contre-écrou 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
28 Union del eje giratorio 1 S257-26 S257-26 S257-26 S257-26 S257-26 S257-26
30 1/4-20 Tuerca 4 300070 300070 300070 300070 300070 300070
31 Cubierta Trasera 1 260491 260491 260491 260491 260491 260491
32 Cubierta/Ensamblada Encerrada 1 600188 600188 600188 600188 600188 600188
33 10-32 x 1/2” RH Tornillo 4 300001 300001 300001 300001 300001 300001
35 Rodillo Guia/Juego de Pernos 1 260032 260032 260032 260032 260032 260032
36 10 x 32 Tuerca de coneccion 4 906476 906476 906476 906476 906476 906476
37 Canal H 4 S260547-1 S260547-1 S260547-1 S260547-1 S260547-1 S260547-1
38 5/16 - 18 Tuerca 4 300107 300107 300107 300107 300107 300107
Manguera del ensamblada None 601014-40 601017-50 601017-70 None 601021-30
Manguera I.D. y Medida None 3/8” x 40’ 3/8” x 50’ 3/8 x 70’ None 1/2” x 30’
Coneccion de Entrada al Carretel 1/2” FPT 1/2” FPT 1/2” FPT 1/2” FPT 1/2” FPT 1/2” FPT
Max. Presion de Operacion 500 PSI 300 PSI 300 PSI 300 PSI 500 PSI 300 PSI
Max. Temperatura de Operacion 150° F 150° F 150° F 150° F 150° F 150° F
