Series 5000 Spring Driven Hose Reels
Page 2 www.reelcraft.com

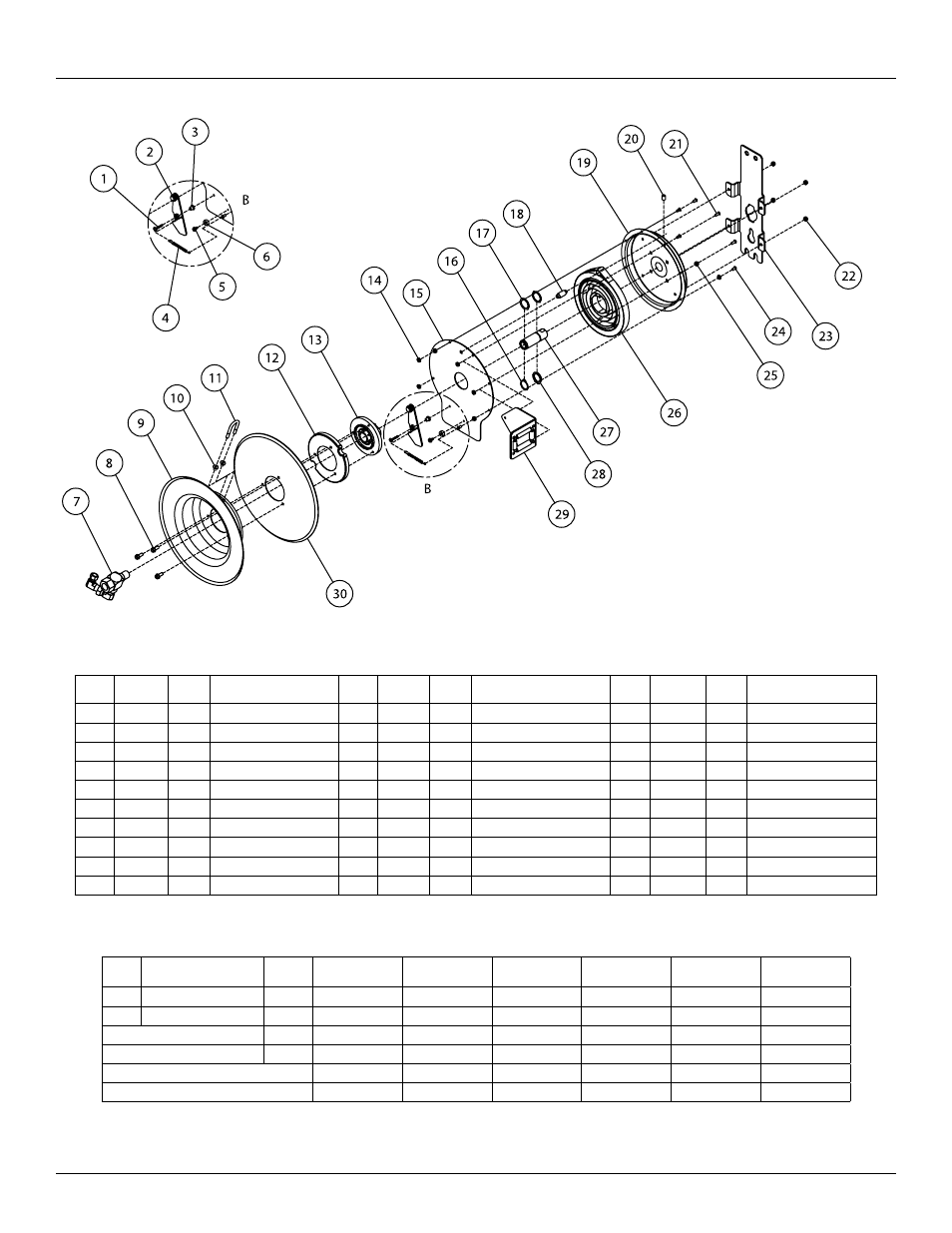

Item
#
Part #
#
Req.
Description
Item
#
Part #
#
Req.
Description
Item
#
Part #
#
Req.
Description
1 300035 1 Machine Screw 12 S500019 1 Latch Cam 22 S82-15 4 Lock Nut
2 S400109 1 Latch Plate Assembly 13 S260648 1 Spring Arbor 23 262488 1 Side Mount Plate
3 S400012 1 Latch Bushing 14 S300011 7 Hex Lock Nut 24 300001 5 Machine Screw
4 S400018 1 Latch Plate Screw 15 262494 1 Spring Case Cover 25 S82-15 1 Lock Nut
5 S32-136 1 Self Tapping Screw 16 300031 1 Snap Ring 27 S400015 1 Main Shaft
6 S400021 1 Latch Plate Bumper 17 300034 2 Wear Washer 28 S137-12 1 Snap Ring
8 S295-102 3 Self Tapping Screw 18 S261360 1 Spring Case Stud 29 S500107 1 Guide Arm
9 260022 1 Sheave Flange 19 602435 1 Spring Case Assembly 30 500006 1 Sheave Disc
10 261650-1 2 Lock Nut 20 300006 1 Set Screw
11 3-117440 1 U-Bolt 21 300002 2 Machine Screw
Item
#
Description
#
Req. 5450 OLPSMR 5450 OLPSML 5635 OLPSMR 5635 OLPSML A5825 OLPSMR A5825 OLPSML
7 Swivel Assembly 1 602330 602330 602330 602330 602444 602444
26 Drive Spring Assembly 1 S503755 S503755 S504240 S504240 S505740 S505740
Hose Assembly 1 601001-50 601001-50 601013-35 601013-35 601020-25 601020-25
Hose Bumper Assembly 1 A1-HR1004-A A1-HR1004-A A1-HR1004 A1-HR1004 A2-HR1004-3 A2-HR1004-3
Max. Operating Pressure 300 PSI 300 PSI 300 PSI 300 PSI 300 PSI 300 PSI
Max. Operating Temperature 150° F 150° F 150° F 150° F 150° F 150° F
