Series 5000 Spring Driven Hose Reels
Page 2 www.reelcraft.com

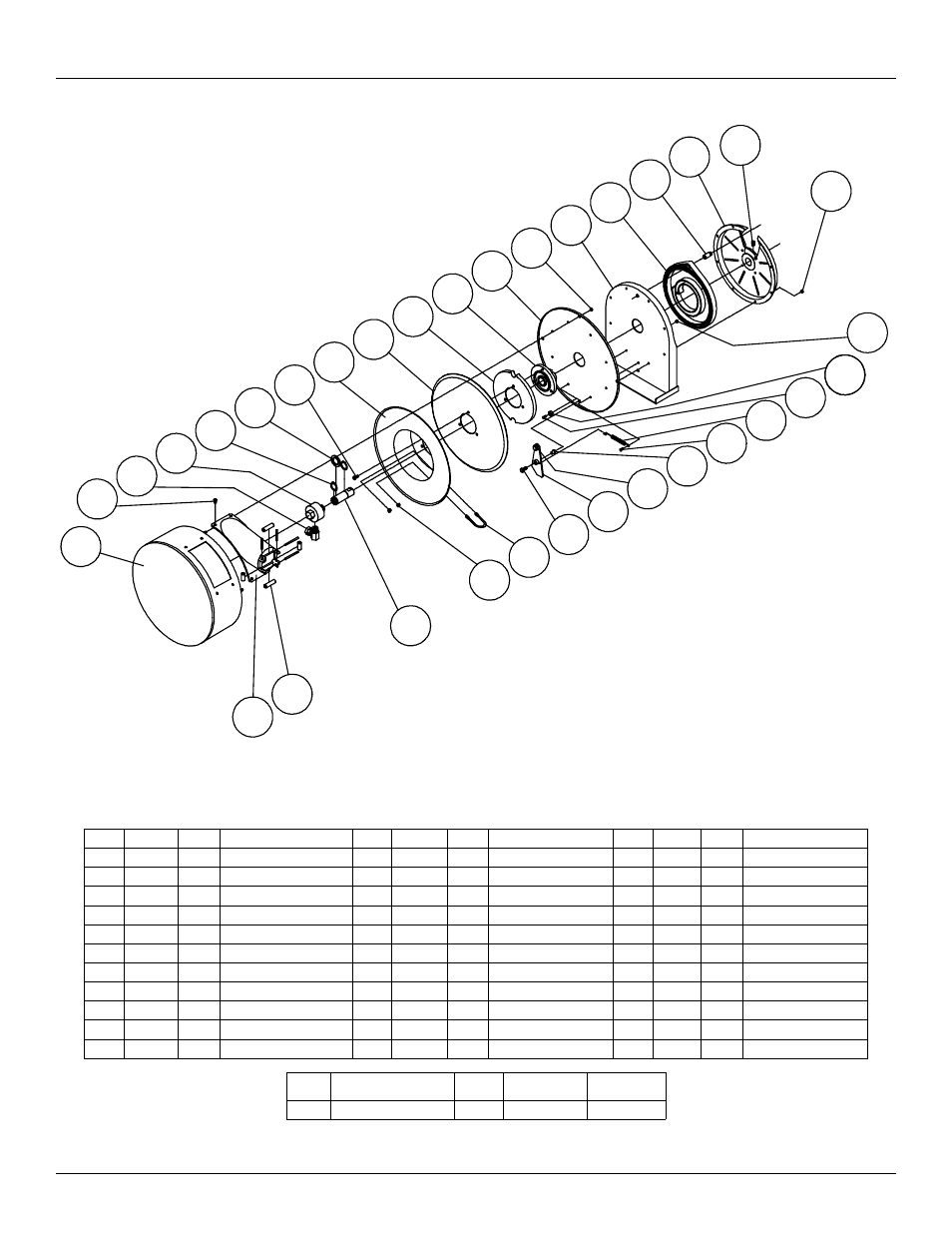

Item # Part # # Req. Description Item # Part # # Req. Description Item # Part # # Req. Description
1 600658 1 Case & Cover Assembly 12 261323 1 Reel Cover 23 S400018 1 Latch Spring
2 S46-105 4 10-32 x 3/8” Screw 13 S96-13 6 1/4-20 Nyloc Nut 24 S46-107 7 10-32 x 1/2” Screw
3 S160-3 1 90° Street Ell 14 600056 1 Base Assembly 25 S260225 1 Latch Bushing
4 600093-2 1 Swivel Assembly 15 S504240 1 Drive Spring Assembly 26 400020 7 O’Ring
5 S147-25 2 1” Snap Ring 16 261361 1 Spring Case Stud 27 S600062 1 Latch Plate Assembly
6 260238 4 Spacing Washer 18 S47-66 1 3/8-16 x 1/2” Set Screw 28 300035 1 10-32 x 1” Mach. Screw
7 S324-102 3 1/4-10 x 5/8” Hex Screw 19 260239 7 10-32 Hex Lock Nut 29 260242 1 U-Bolt
8 260221 1 Sheave Flange 20 S95-22 1 10-32 x 3/8” Nyloc Nut 31 260227 1 Main Shaft
9 260223 1 Sheave Disk 21 S400021 1 Latch Bumper 32 S260019 1 Guide Roller Pin Kit
10 260224 1 Latch Cam 22 S332-117 1 10-24 x 3/8” Screw 33 600657 1 Hose Guide Assembly
11 S260648 1 Spring Arbor
Item # Description # Req. 5600 ELS 5600 ELS-S
17 Spring Case Assembly 1 600061 600061-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
33
32
31
13
29
28
27
26
25
24
23
22
21
20
