Reelcraft Series 5000 Spring Driven Hose Reels (Low Pressure xxxxELP) - Manual (Page 2)

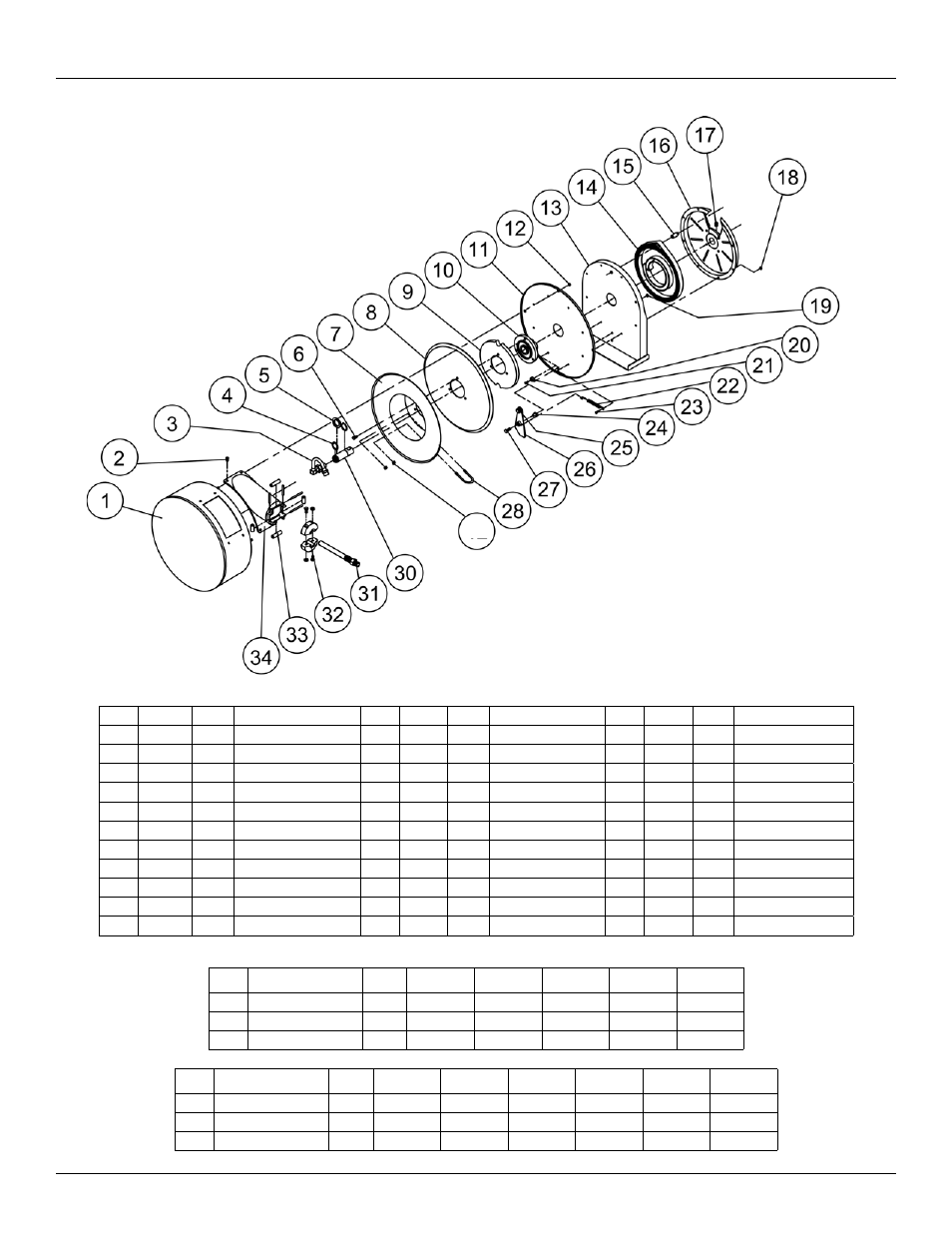

Series 5000 Spring Driven Hose Reels
Page 2 www.reelcraft.com
35
Item # Part # # Req. Description Item # Part # # Req. Description Item # Part # # Req. Description
1 500102 1 Case and Cover Assembly 12 300070 4 1/4-20 Nyloc Nut 24 S400012 1 Latch Bushing
2 300001 4 10-32 x 3/8” Screw 13 500101 1 Base Assembly 25 400020 7 O-ring
3 S600886 1 Swivel Assembly 15 S261360 1 Spring Case Stud 26 S400109 1 Latch Plate Assembly
4 300031 1 1” Snap Ring 16 S500103 1 Spring Case Assembly 27 300035 1 10-32 x 1” Mach. Screw
5 300034 4 Spacing Washer 17 300006 1 3/8-16 x 1/2” Set Screw 28 3-117440 1 Hose Clamp
6 S295-102 3 1/4-10 x 5/8” Hex Screw 18 S300011 7 10-32 Hex Lock Nut 30 S400015 1 Main Shaft
7 260022 1 Sheave Flange 19 S82-15 1 10-32 x 3/8” Nyloc Nut 33 S260019 1 Guide Roller Pin Kit
8 500006 1 Sheave Disk 20 S400021 1 Latch Bumper 34 HR2012 1 Hose Guide Assembly
9 S500019 1 Latch Cam 21 S32-136 1 10-24 x 3/8” Screw 35 261650-1 2 1/4-20 Nyloc Nut
10 S260648 1 Spring Arbor 22 S400018 1 Latch Spring
11 500004 1 Reel Cover 23 300002 7 10-32 x 1/2” Screw
Item # Description # Req. 5400 ELP 5420 ELP 5425 ELP 5435 ELP 5450 ELP
14 Drive Spring Assembly 1 S503755 S503755 S503755 S503755 S503755
31 Hose Assembly 1 None 601001-20 601001-25 601001-35 601001-50
32 Hose Bumper 1 None 1-HR1004-A 1-HR1004-A 1-HR1004-A 1-HR1004-A
Item # Description # Req. 5600 ELP 5615 ELP 5620 ELP 5625 ELP 5630 ELP 5635 ELP
14 Drive Spring Assembly 1 504240 504240 504240 504240 504240 504240
31 Hose Assembly 1 None 601011-15 601011-20 601013-25 S601011-30 S601013-35
32 Hose Bumper 1 None 1-HR1004 1-HR1004 1-HR1004 1-HR1004 1-HR1004
