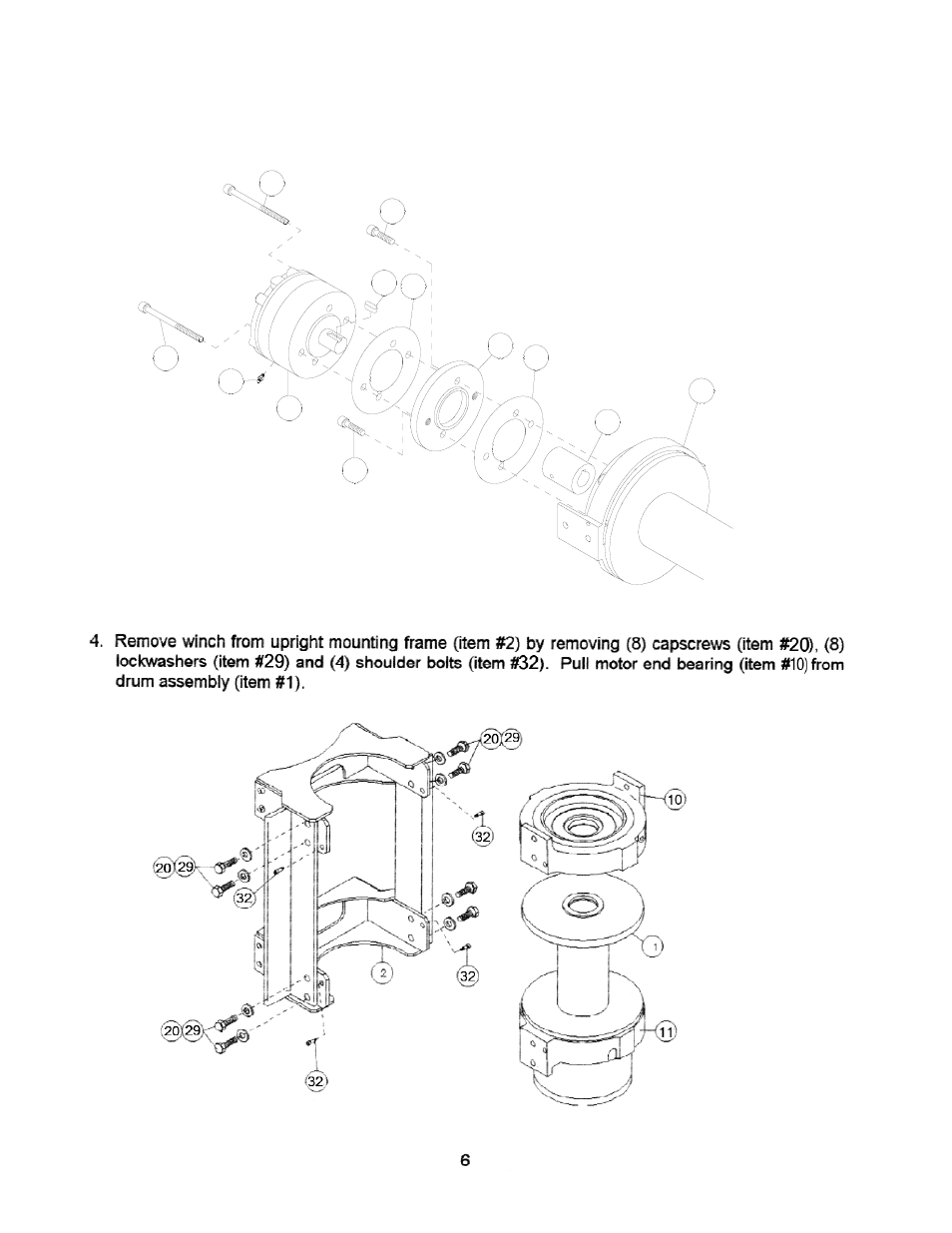

3. Remove brake assembly screws (item #18) from brake (item #38a) to access mounting screws (item #23)
attaching brake adapter plate (item #38d) to end bearing (item #10). C Ca au uttiio on n:: B Brra ak ke e iis s s sp prriin ng g llo oa ad de ed d b by y
c cllu uttc ch h s sp prriin ng g a an nd d m mu us stt b be e rre es sttrra aiin ne ed d a ag ga aiin ns stt e en nd d b be ea arriin ng g a as s m mo ou un nttiin ng g s sc crre ew ws s a arre e rre em mo ov ve ed d.. Remove cou-
pling (item #8) and gasket (item #38e) from the end bearing. Take note of the mounting configuration for
proper mounting of parts during re-assembly.
18
18
36
38a
23
23
38c 38e
38d
38e
8
10
