Typical layout – Ramsey Winch SCH-8500 User Manual
Page 4
HYDRAULIC SYSTEM REQUIREMENTS
Refer to the performance charts on following page to properly match your hydraulic system to the winch perform-
ance. The charts consist of:
(1) First layer Line Pull (LB) vs. Working Pressure (PSI) and
(2) First layer Line Speed (FPM) vs. Flow (GPM).
A motor spool directional control valve is required.

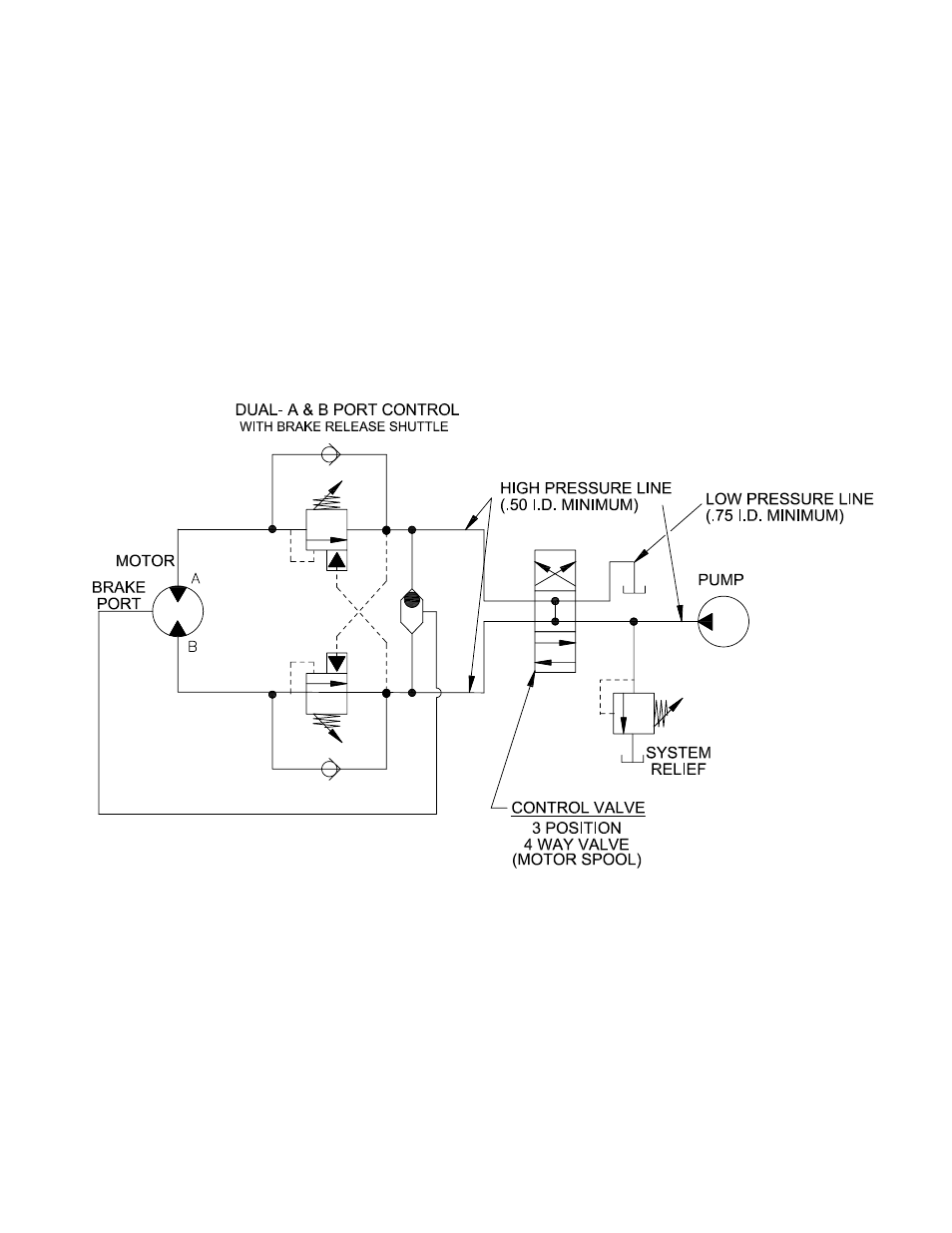

TYPICAL LAYOUT
2
