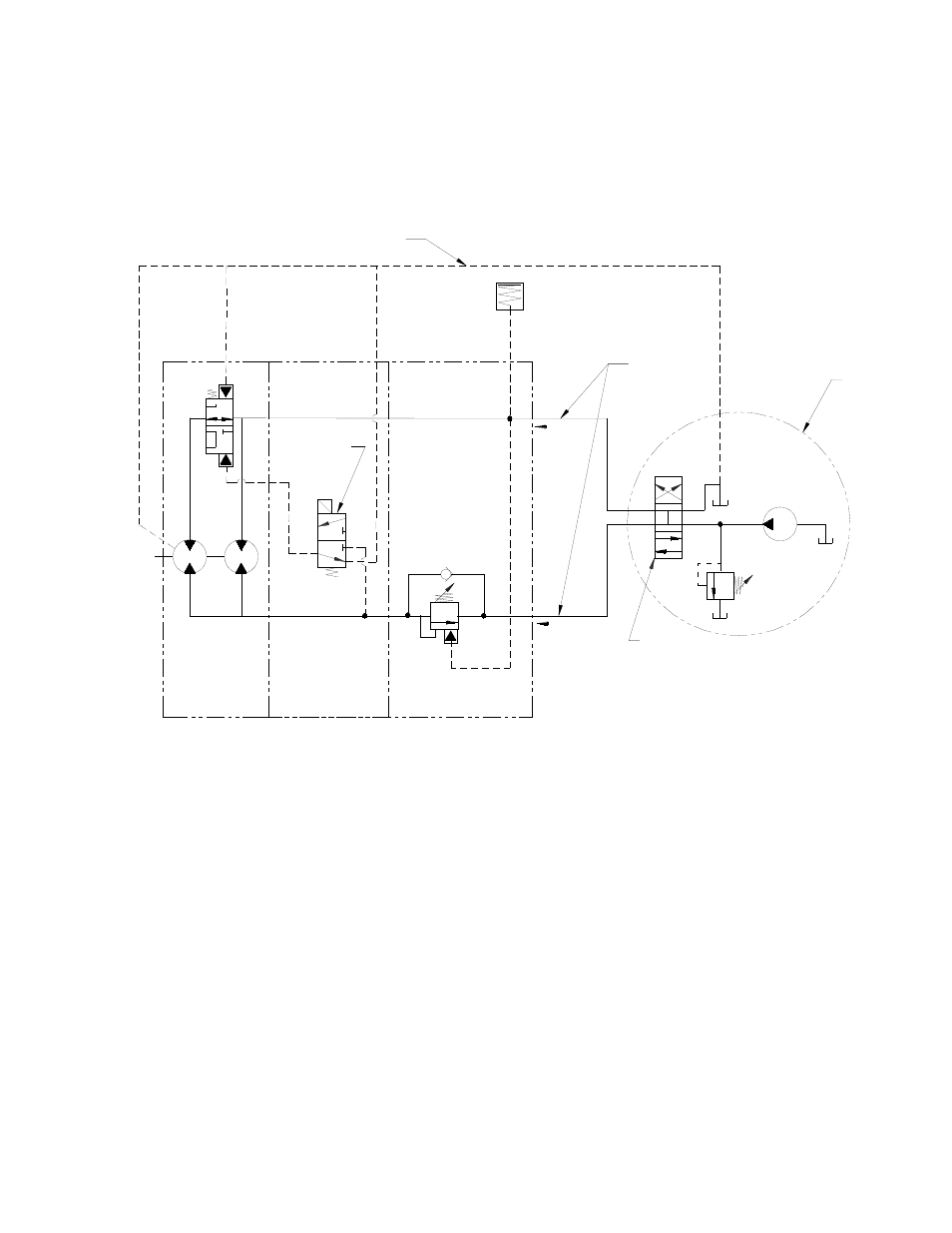

PORT#3

COUNTER BALANCE

BRAKE

DIRECT LINE TO TANK

PAYOUT

COUNTER BALANCE

VALVE

RELIEF

4 WAY VALVE

3 POSITION

SYSTEM

PUMP

CUSTOMER
SUPPLIED

MOTOR CASE DRAIN

PORT #1

PORT #5

PAYIN

MOTOR 2 SPEED

LOW PRESSURE LINE

HIGH PRESSURE LINE

12 VDC

SHIFT SOLENOID

SPEED SELECTOR

2 SPEED GEAR MOTOR

HYDRAULIC SYSTEM REQUIREMENTS cont’
