Ramsey Winch RCH 15K HOIST - Manual (Page 11)

10

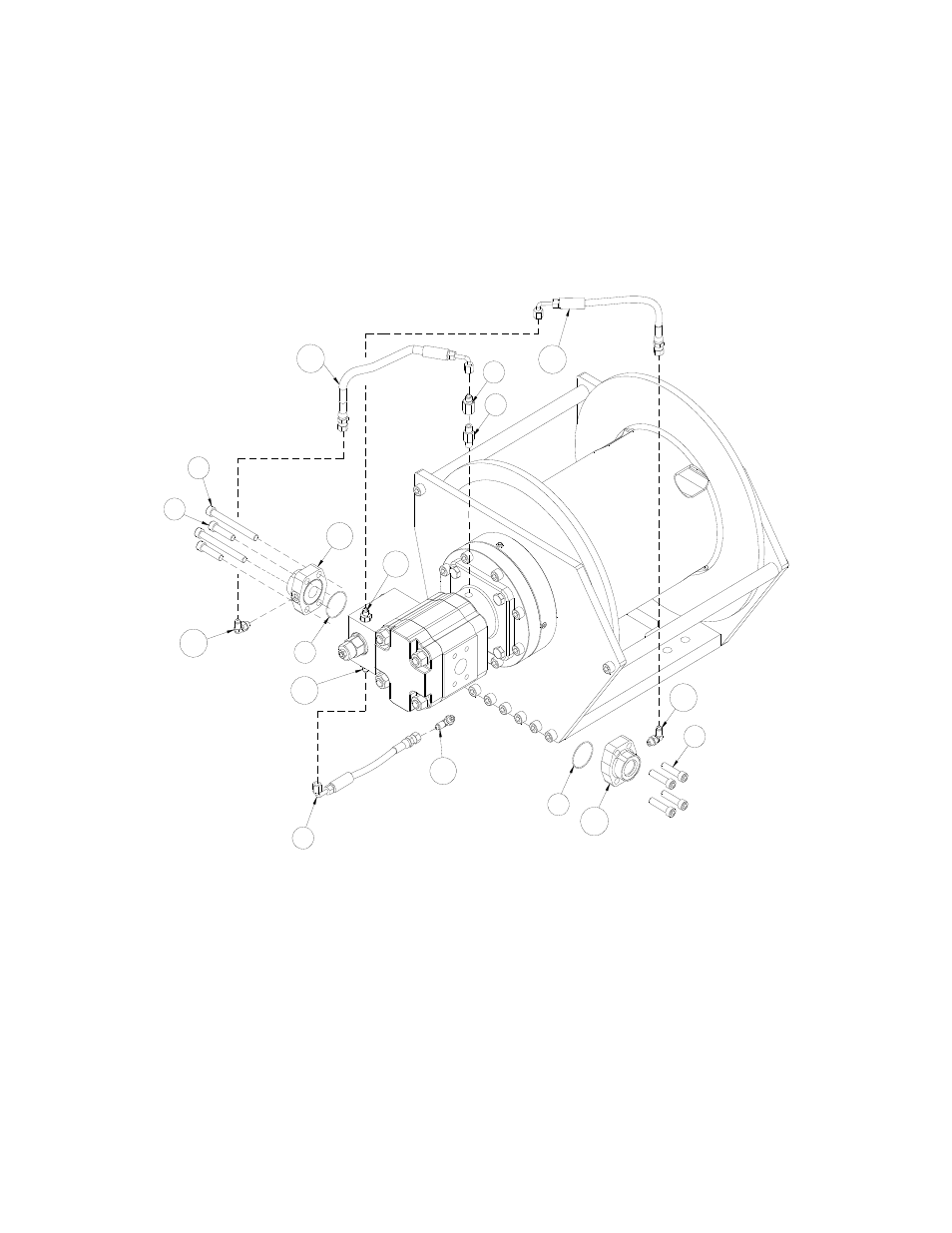

5. Disconnect brake release hose #39 from elbow fitting #22b and coupling #46a. Disconnect
hose #43a from elbow fitting #22a and fitting tube to pipe #53. Remove hose #43b from elbow
fitting #22c and coupling #46b. Remove flange mount #44a by removing (4) bolts #20 from
motor. Remove flange mount #44b by removing (2) bolts #48 and (2) bolts #20.
