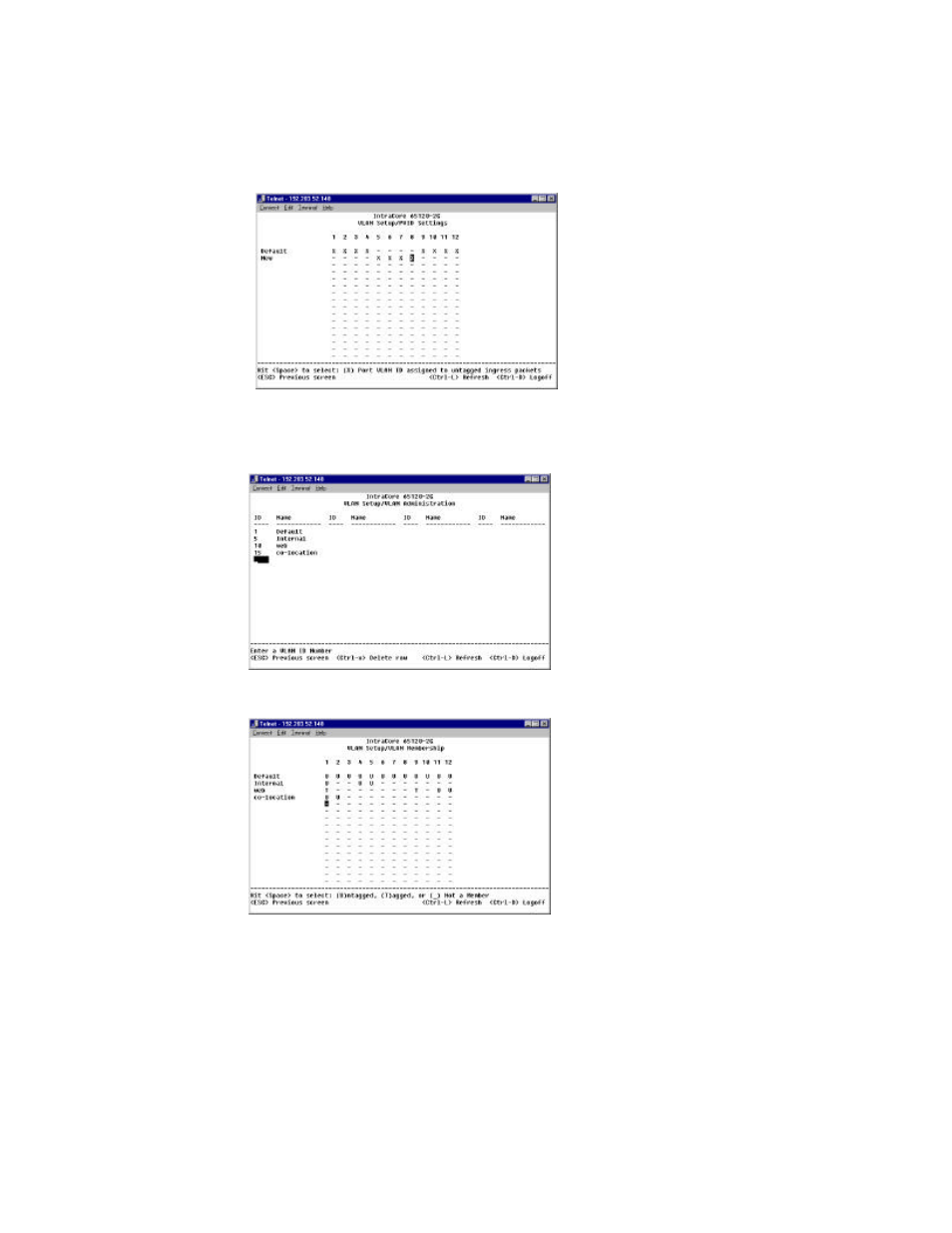

3. To allow untagged packets to participate in the ‘New’ VLAN, make sure to change the Port VLAN
IDs for the relevant ports. To access the Port VLAN ID page choose c. PVID Settings from the
VLAN Setup menu. Use the space bar to add an ‘X’ indicating which PVID is assigned to which
port.
Example 2
1. Setup the following VLANs:
2. Configure the VLAN membership as follows:
3. Setup the Port VLAN IDs as follows (Note: The Port One PVID is set to 2. This must be done in the
port specific page since there is no VLAN with ID 2):
