22

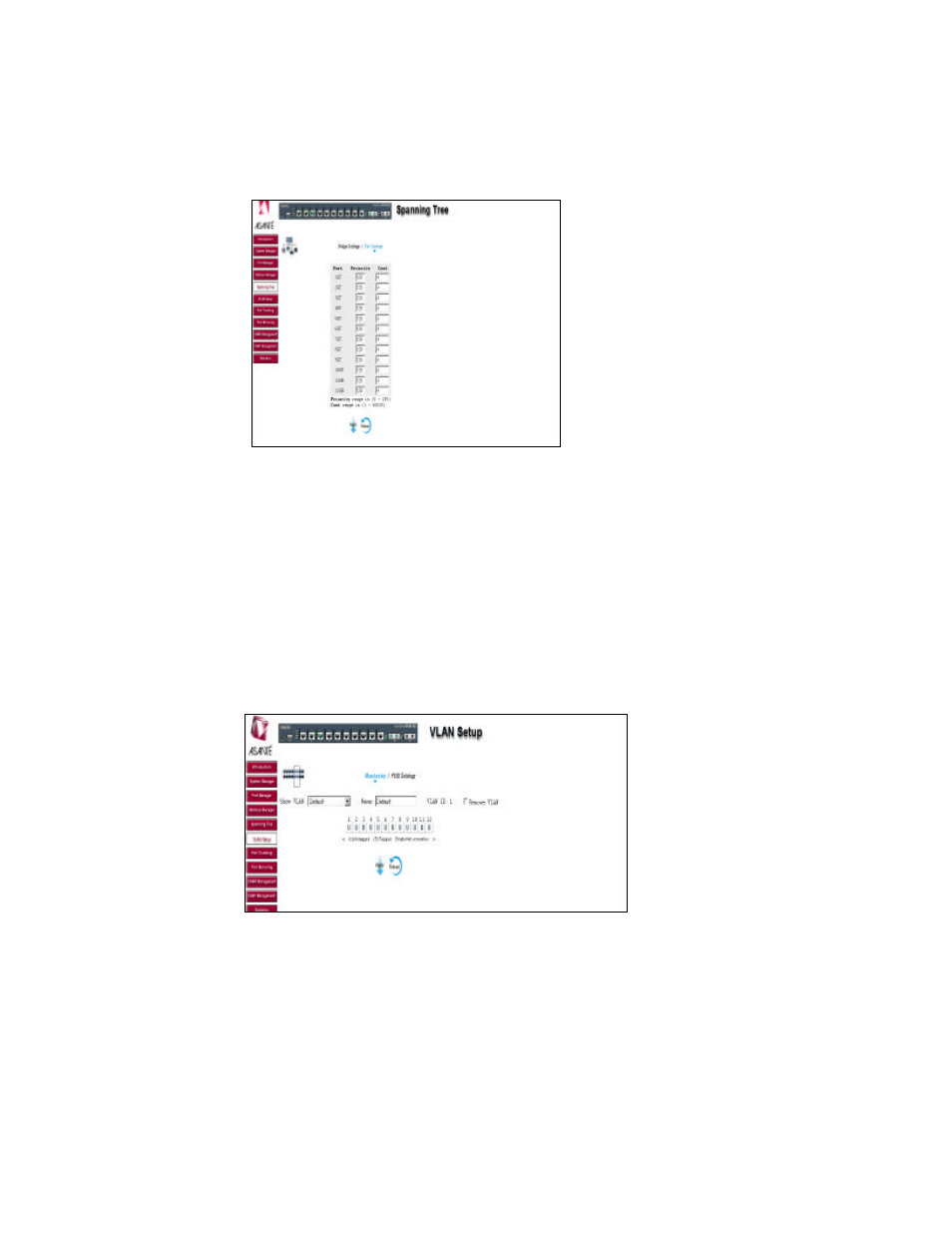

3.6.2 Port Settings
For the Port Settings options, you can specify spanning tree parameters for each port. These parameters
include port priority and path cost
.
3.7 VLAN Setup
The VLAN tagging option is a standard set by the IEEE to facilitate the spanning of Virtual Local Area
Networks (VLANs) across multiple switches (Reference: IEEE standard 802.1Q-1998 Virtual Bridged Local
Area Networks).
This page has two options: Membership and PVID Settings.
3.7.1 Membership
The VLAN Membership option allows users to define VLAN groups. Under the Show VLAN pull-down
menu, the Add a new VLAN option will create a new VLAN.
Add VLAN Group
:
•
Click on the Add a new VLAN under the Show VLAN menu
•
Enter the VLAN ID and name under the Add a new group option
•
Click Apply
Remove VLAN Group:
•
Select the VLAN you want to remove from the Show VLAN menu
•
Check the Remove VLAN
•
Click Apply
