27

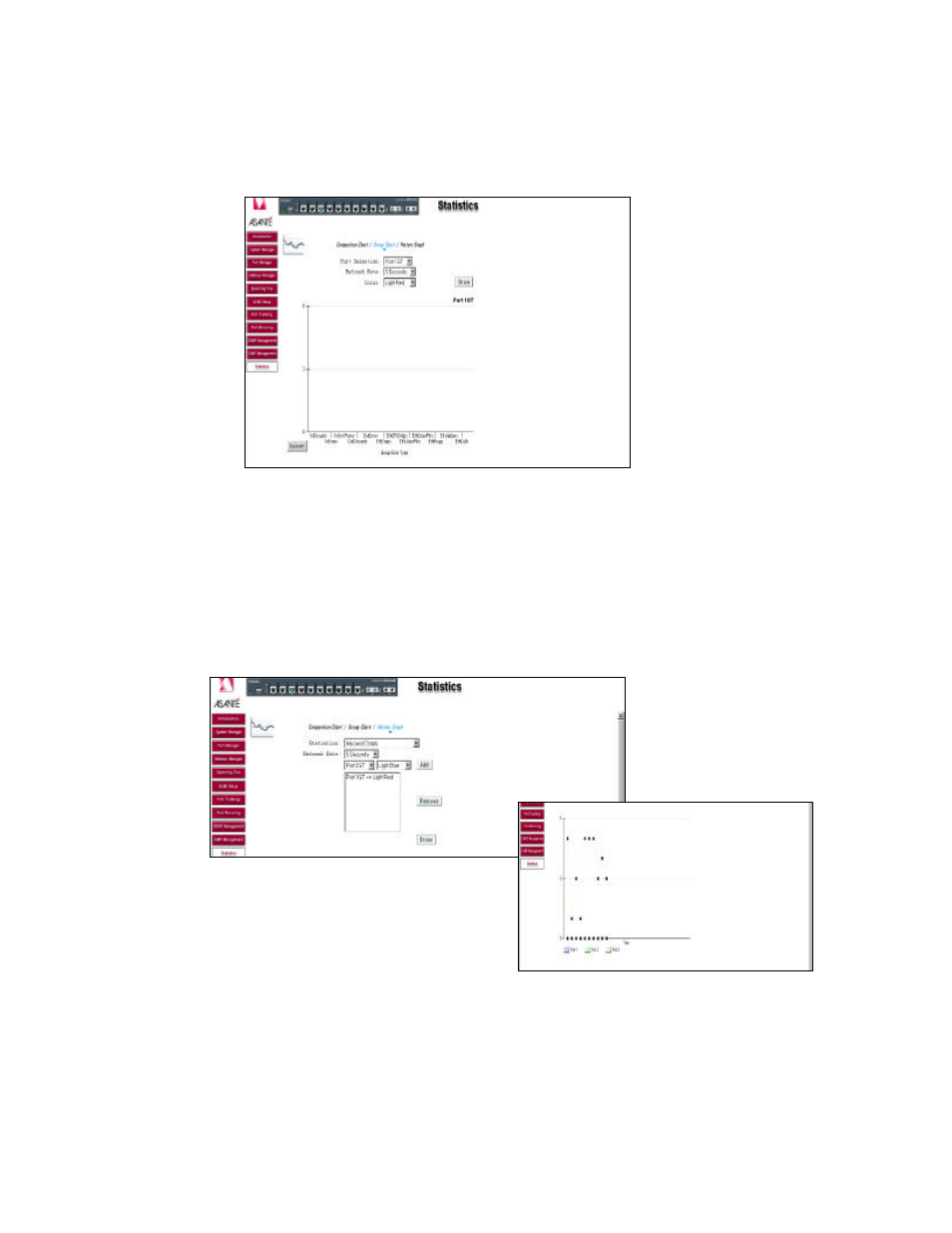

3.12.2 Group Chart
This chart tracks the types of errors that have occurred on one port. Enter the port selection, the refresh rate
and the color.
When all of the variables are set, click Draw. Click Reset to start again.
3.12.3 History Graph
This page will graph data over time, allowing you to compare each port’s activity. Select the type of data to
monitor. Choose a color for each port and click Add to include that port in the graph. Click Draw when all
the desired ports are entered. To remove a port from the graph, highlight the correct line and click Remove.
