Page 30
F-1
DIAGRAMS
F-1
TOMAHAWK™ 625
NOTE:
This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for
a particular code is pasted inside the
machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give
the equipment code number.
S1

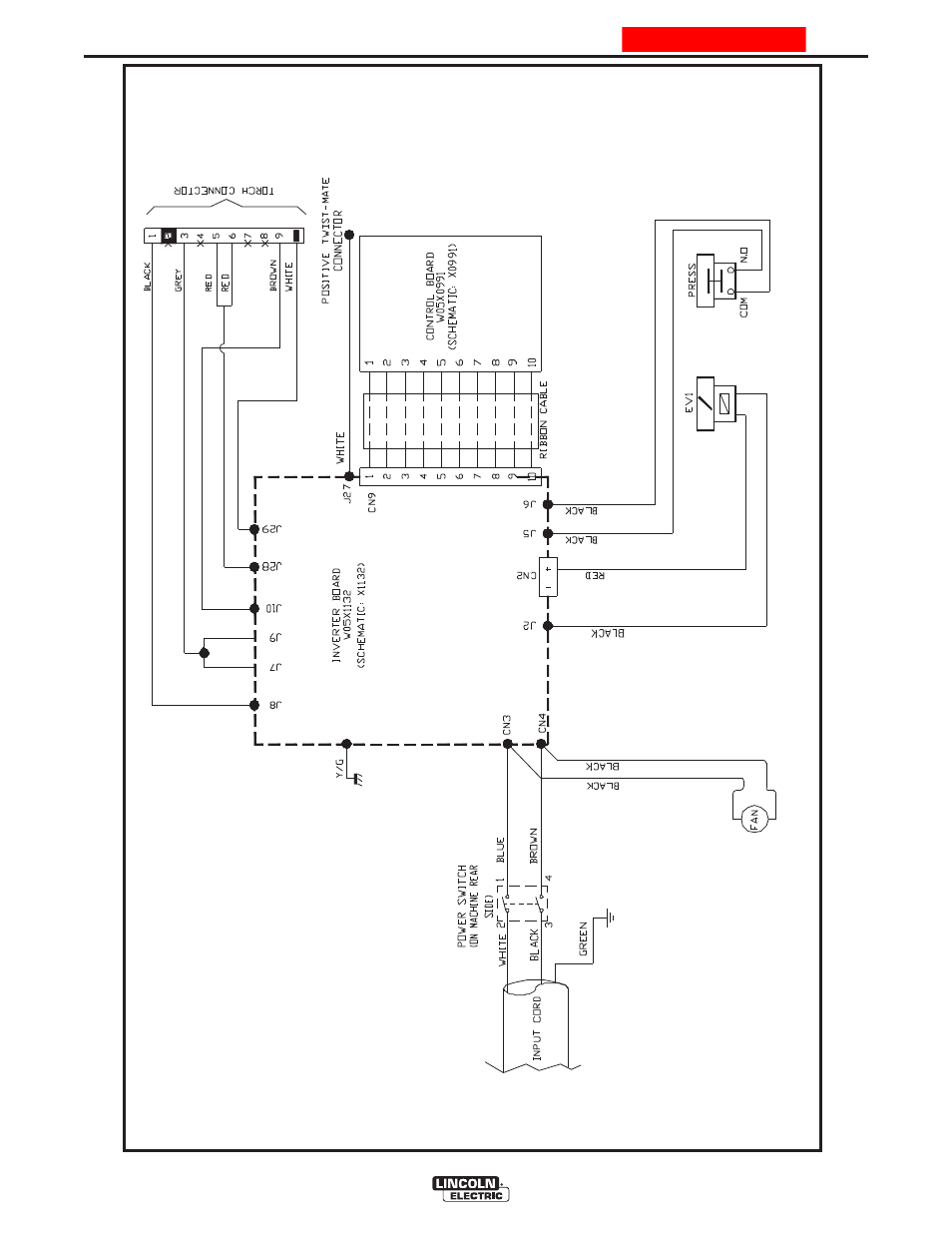

TOMAHAWK 625
WIRING DIAGRAM
045.101.079
045.101.049
6-24-09
ENHANCED DIAGRAM
