Installation – Lincoln Electric IM10030 RANGER 3 PHASE User Manual
Page 16
A-9
INSTALLATION
RANGER® 3 PhASE
A-9
Connection of RANGER® 3 PhASE to premises
wiring must be done by a licensed electrician and
must comply with the National Electrical Code and
all other applicable electrical codes. See the
INSTALLATION section for important information
about not using 480V 3 Phase receptacle for con-
nection to single Phase Premisis Wiring.

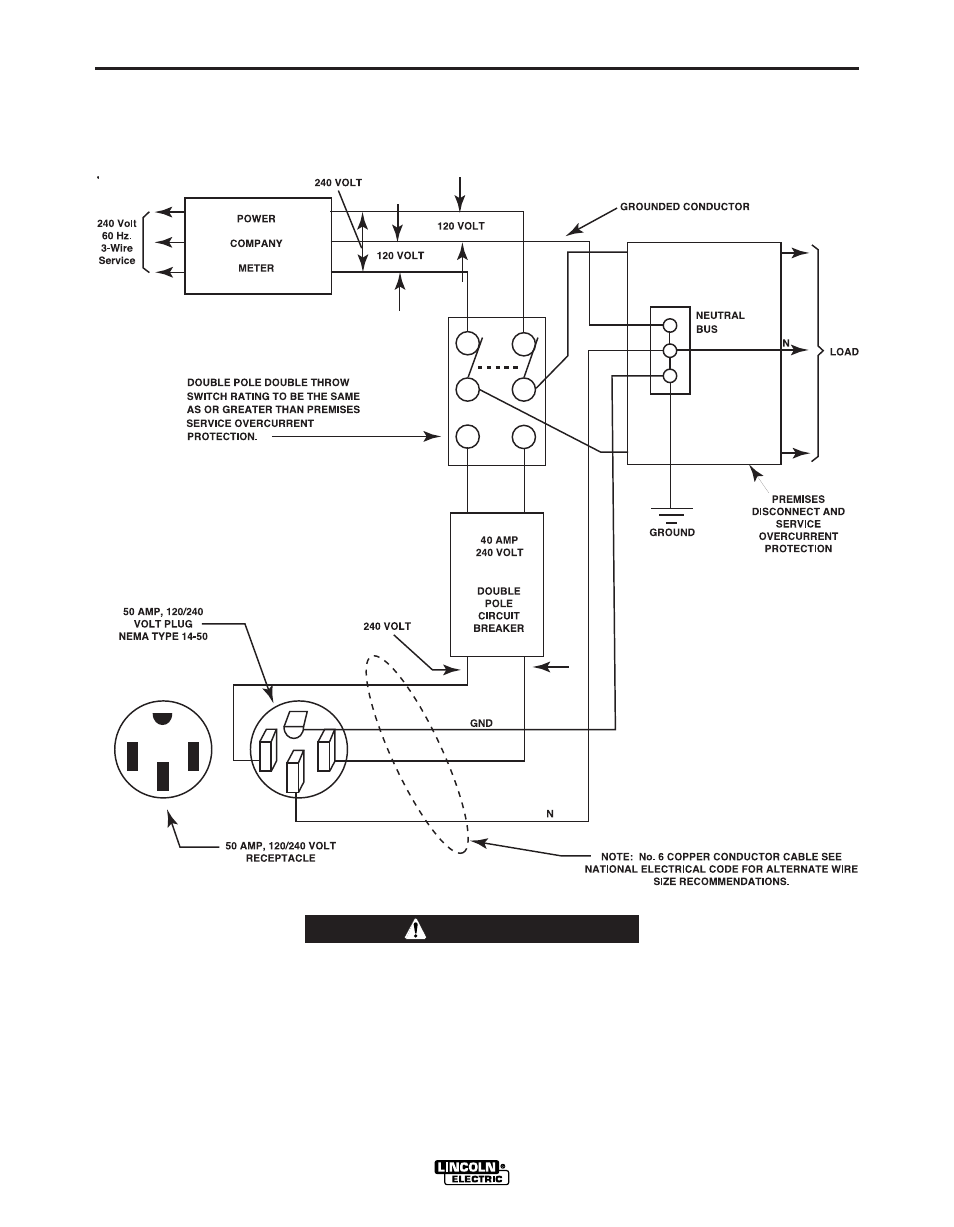

Figure A.1
CONNECTION OF RANGER® 3 PhASE TO PREMISES WIRING
WARNING
