Installation – Lincoln Electric IM10058 POWER WAVE STT MODULE User Manual
Page 13
A-6
INSTALLATION
POWER WAVE
®
STT
®
MODULE
A-6

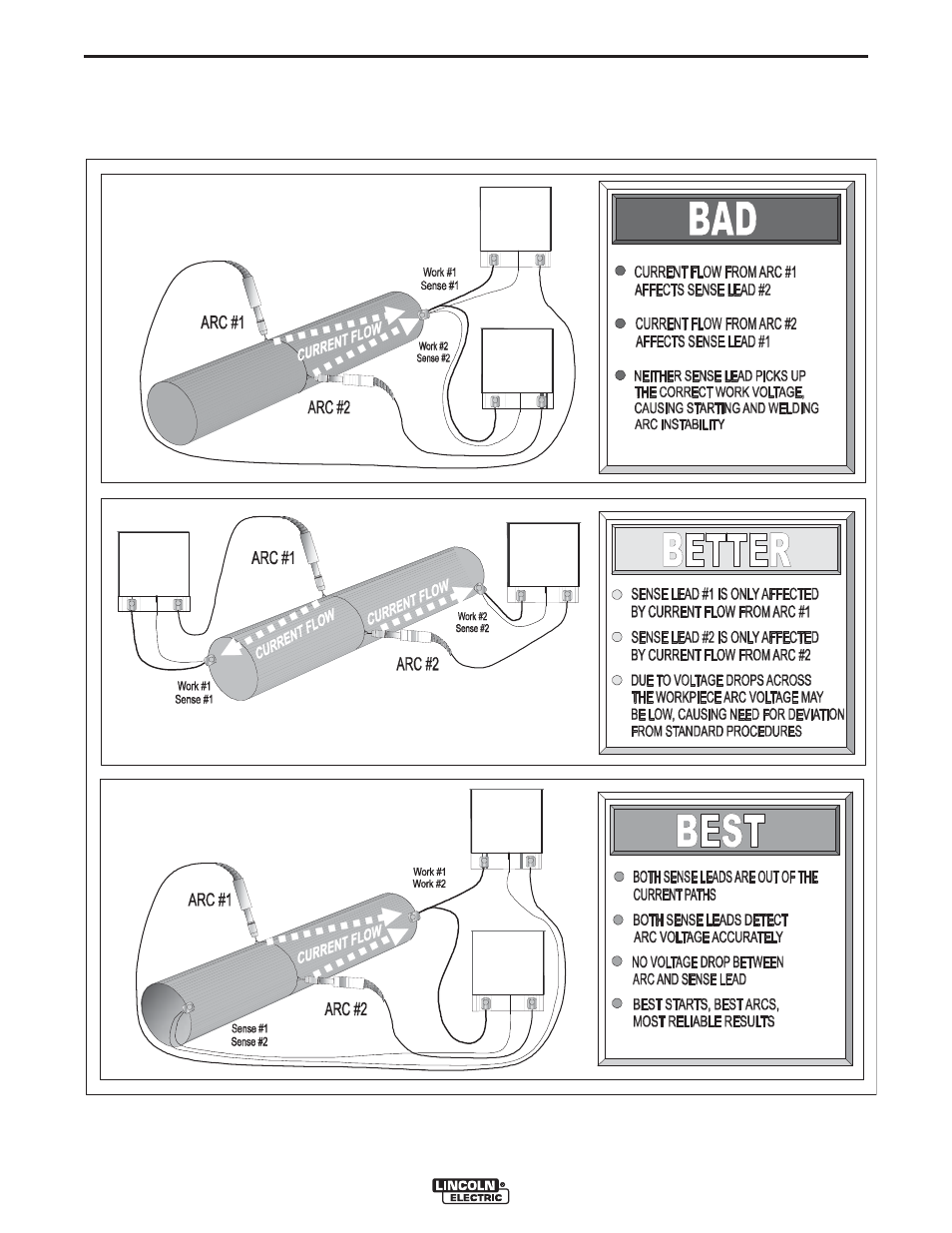

• For circumferential applications, connect all work leads on one side of the weld joint, and all of the work volt-
age sense leads on the opposite side, such that they are out of the current path.
POWER
SOURCE
#2
POWER
SOURCE
#1
POWER
SOURCE
#1
POWER
SOURCE
#2
POWER
SOURCE
#2
POWER
SOURCE
#1
