A-5 INSTALLATION
MOBIFLEX 400-MS(/HE) BASE UNIT & LFA 3.1/4.1 MOBILE MANUAL/AUTOMATIC
A-5
LFA 3.1/4.1 MOBILE
MANUAL/AUTOMATIC

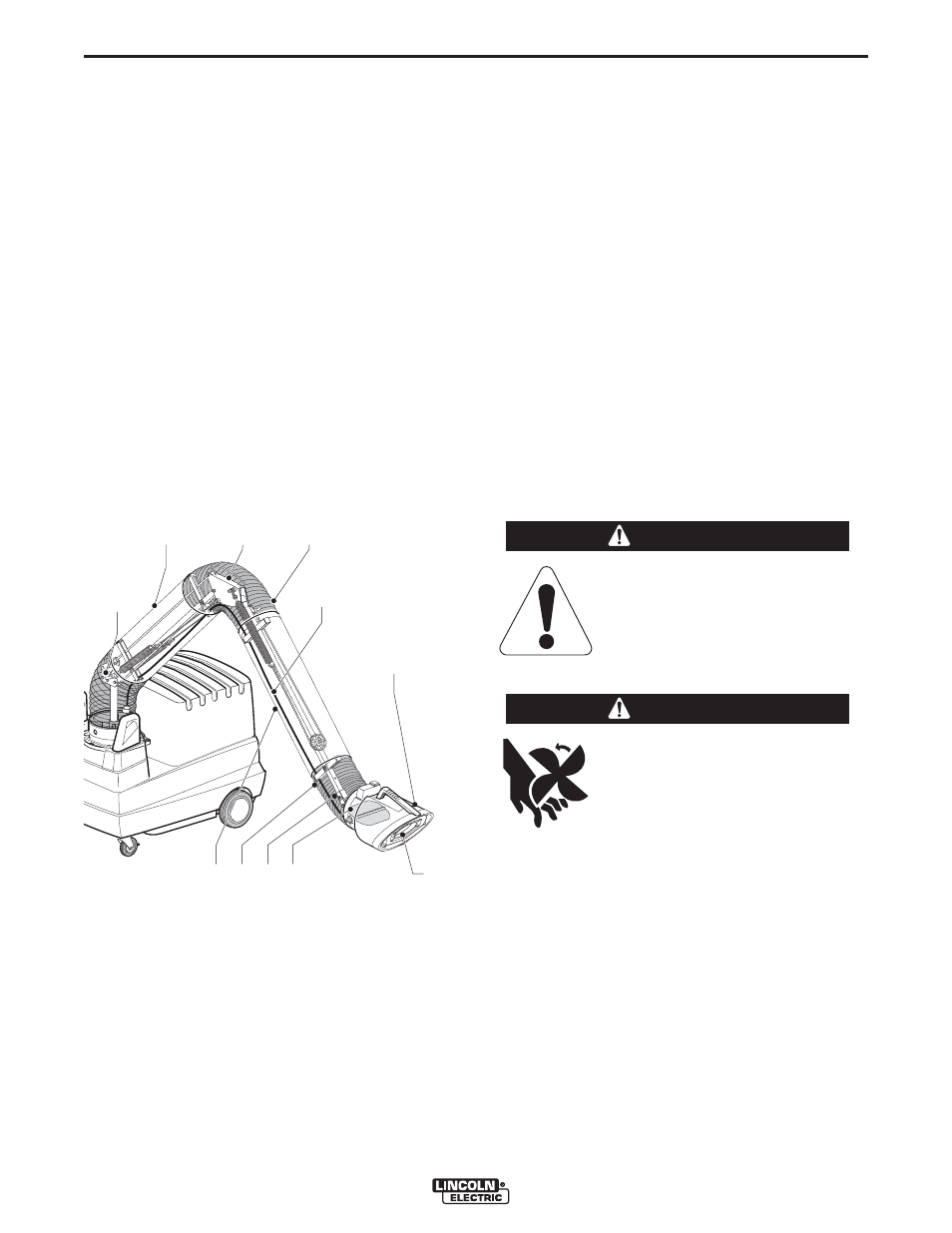

The LFA 3.1/4.1 Mobile Manual/Automatic extraction
arm consists of the following components (See Figure
A.6):
A. Hinge fan side
B. Arm section (fan side)
C. Middle hinge with hose running guard
D. Flexible hose
E. Connection wire arm (K2633-2, K2633-4 only)
F. Extraction hood
G. Lamp & Arc Sensor (K2633-2, K2633-4 only)
H. Throttle valve
I. Hood hinge with rubber protection cover
J. Flexible hose
K. Arm section (hood side)
UNPACKING
Check that the product package is complete. The
package should contain:
Mobiflex 400-MS/(HE) Base Unit
• (1) Mobiflex 400-MS(/HE) Base Unit with input power
cord (20 ft)
• (1) Flexible Hose 65 cm (2 ft.)
• (1) Instruction Manual
LFA 3.1/4.1 Mobile Manual/Automatic Extraction
Arm
• (1) LFA 3.1/4.1 Extraction Arm
• (2) Bolt M8
• (2) Self-locking Nut M8
• (2) Washer
If parts are missing or damaged, contact Lincoln
Electric Automation 888-935-3878.
INSTALLATION
MOBIFLEX 400-MS(/HE) BASE UNIT
The base swivel mount on top of the machine contains
two tie wraps. A split pin has been attached to the
lower one.
Installation Steps:
See Figure A.7 for steps 1-6
1. Cut through the lower tie wrap (A) to release the
split pin.
2. Lift the post of the base swivel mount by the upper
tie wrap (B). (See Figure A.7).
3. Put the split pin through the lowest hole in the post
(C) and bend it around. (See Figure A.7).
4. Remove the upper tie wrap (D) and let down the
post. (See Figure A.7).
5. Remove clamping pin from under rubber seal of the
base swivel mount.
6. Fold down the rubber seal and take off the red plas-
tic ring.
FIGURE A.6
B C
F
D
I J K H
E
G
A
Make sure the tie wrap and the split
pin do not fall into the fan. If it falls
into the fan it must be removed
prior to turning the base unit on.
------------------------------------------------------------------------
ATTENTION
MOVING PARTS can injure.
• Do not operate with doors open or
guards off.
• Stop engine before servicing.
• Keep away from moving parts.
------------------------------------------------------------------------
WARNING
