D-2 D-2 MAINTENANCE
4. Insert the untrimmed Liner into the back end of the
gun.
5. Seat Liner bushing into back of gun. Secure Liner
by tightening set screw. Do not install the gas dif-
fuser at this time.
6. Lay the cable straight and trim Liner to 9/16”.
Remove burrs.
7. Install insulator and secure the gas diffuser into the
tube.
Excessive pressure at the start may cause the dirt
to form a plug.
-----------------------------------------------------------
Flex the cable over its entire length and again blow
out the cable. Repeat this procedure until no further
dirt comes out. If this has been done and feed prob-
lems are experienced, try liner replacement, and refer
to trouble shooting section on rough wire feeding.
LINER REMOVAL AND REPLACEMENT
(SEE FIGURE D.1)
LINER REMOVAL, INSTALLATION AND TRIMMING
INSTRUCTIONS FOR MAGNUM 350MP
NOTE: The variation in cable lengths prevents the
interchangeability of liners between guns. Once a liner
has been cut for a particular gun, it should not be
installed in another gun unless it can meet the liner
cutoff length requirement. Liners are shipped with the
jacket of the liner extended the proper amount.
1. Remove the gas nozzle.
2. Remove the gas diffuser from the gun tube.
3. Lay gun and cable out straight on a flat surface.
Loosen set screw of the connector on the back end
of the gun.
CAUTION
.56" (14.2mm)
LINER TRIM
LENGTH
Gun Tube
Assembly
Insulator
Gas Diffuser
Gas Nozzle
Contact Tip
INSULATION TUBE
FEEDER END
CABLE HANDLE
BRASS CABLE
CONNECTOR
SET SCREW
MOLDED GAS PLUG
LINER ASSEMBLY(LINER BUSHING TO BE SEATED
TIGHT AGIANST BRASS CABLE CONNECTOR)

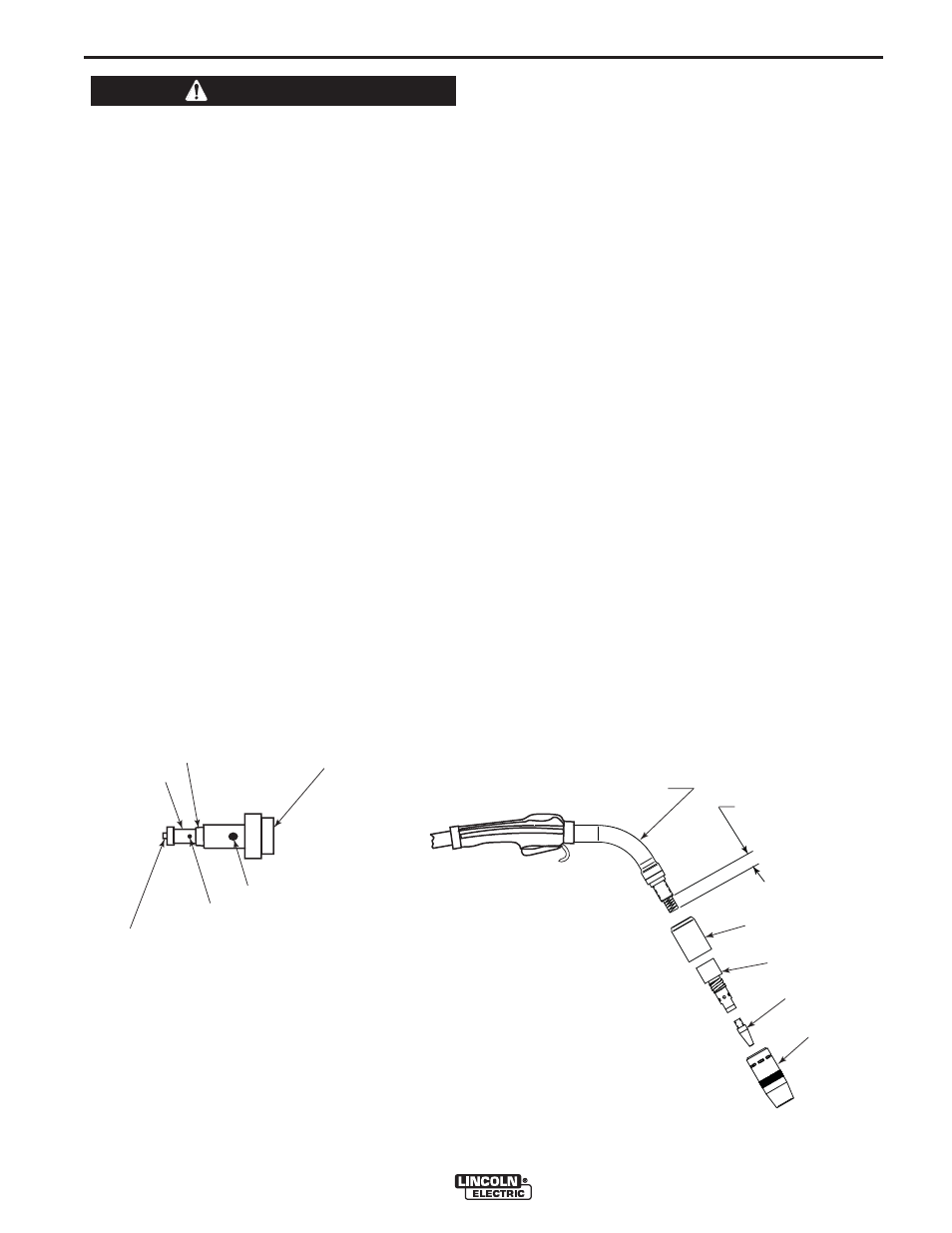

FIGURE D.1
POWER MIG ® 350MP
