RPC-6106/6108 Rackmount LCD Workstation

4.5.8.2 PSU Cables

PSU cables must be connected to the following components (if installed):

CPU card

Backplane

HDD

Optical drive

4.5.8.3 Disk Drive Ribbon Cables

Disk drive ribbon cables must be connected to the corresponding CPU card disk drive

connectors.

4.5.8.4 RS-232 Cable (T-R Models Only)

To connect the RS-232 connector for using touch screen, please follow the steps below:

Step 1:

Connect the RS-232 cable that comes with the RPC-6106/6108 to the RS-232

connector on the CPU card.

Step 2:

Locate the other RS-232 cable on the AD board (Figure 4-11).

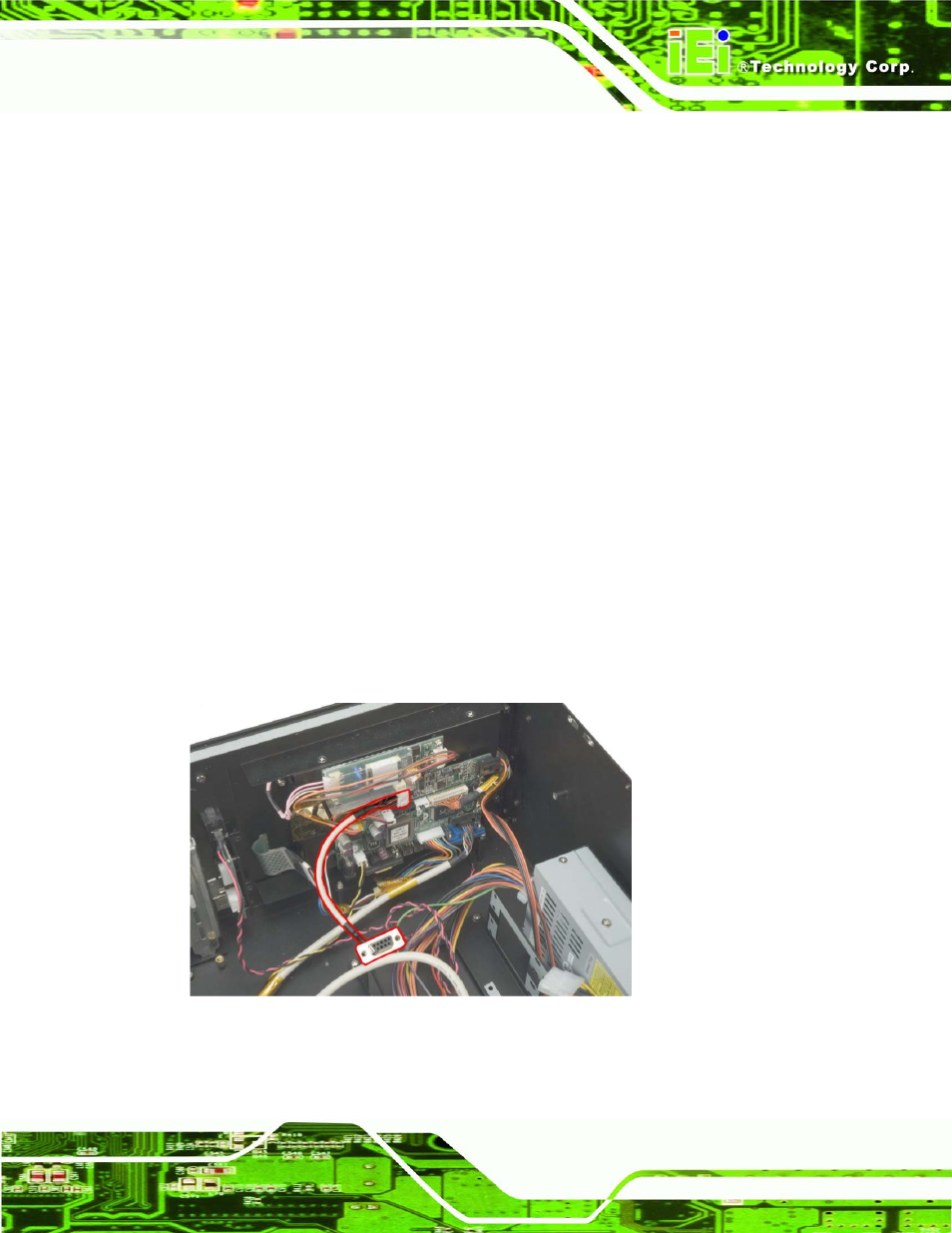

Figure 4-11: RS-232 Cable on the AD Board

Step 3:

Connect these two RS-232 cables.

Step 0:
