Page 41

RPC-6106/6108 Rackmount LCD Workstation

PSU cables

Disk drive ribbon cables

RS-232 cable (T-R models only)

Other connections may have to be made; please refer to the documentation that came

with the CPU card.

4.5.8.1 VGA Cable

To monitor the system on the LCD on the front panel, use the VGA cable in the package to

connect the AD board and the VGA connector on the external interface of the CPU card.

Follow the steps below to connect the VGA cable.

Step 1:

Connect VGA cable to the VGA connector on the AD board (Figure 4-8).

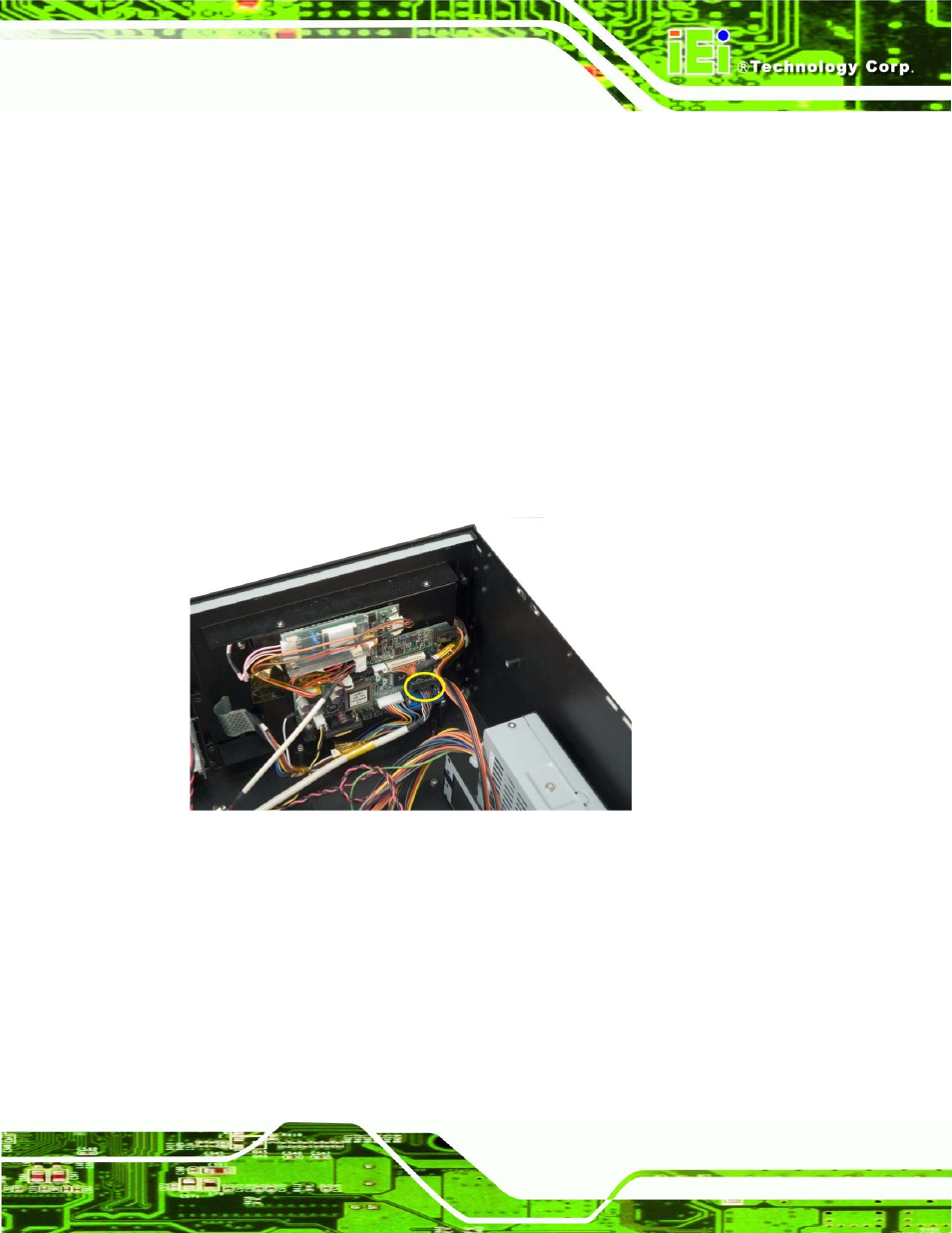

Figure 4-8: VGA Connector on the AD Board

Step 2:

Loosen the two thumb screws to remove the cover of the cable window on the

front panel of the RPC-6106/6108.

Step 3:

Make the VGA cable go around the CPU card and pull the cable out through the

cable window in the front panel of the RPC-6106/6108 (Figure 4-9).

Page 31
