AFL2-12A-D525 Series Panel PC

Page 29

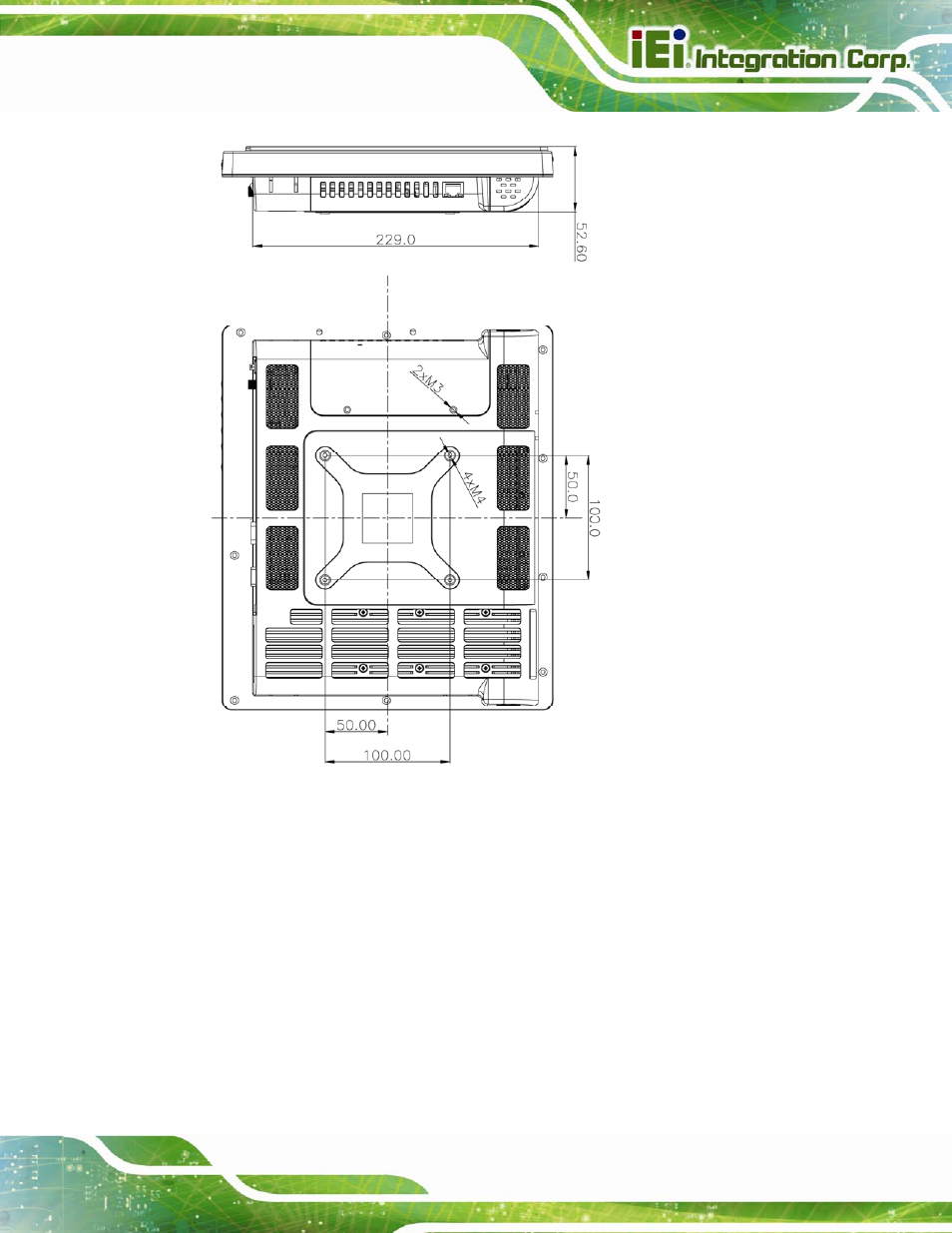

Figure 2-2: AFL2-12A-D525 Dimensions (mm) cont.

2.2 Intel® Atom™ Processor

An Intel® Atom™ D525 processor is installed in the system. The D525 CPU is a 1.8 GHz

dual core processor with Direct Media Interface (DMI) speed of 2.5 GT/s. The CPU also

features a 1.0 MB L2 cache.

2.3 Motherboard Components

The following sections describe some of the features on the motherboard.
