AFL2-12A-D525 Series Panel PC
Page 16
1.1 AFL2-12A-D525 Flat Bezel Panel PC Overview

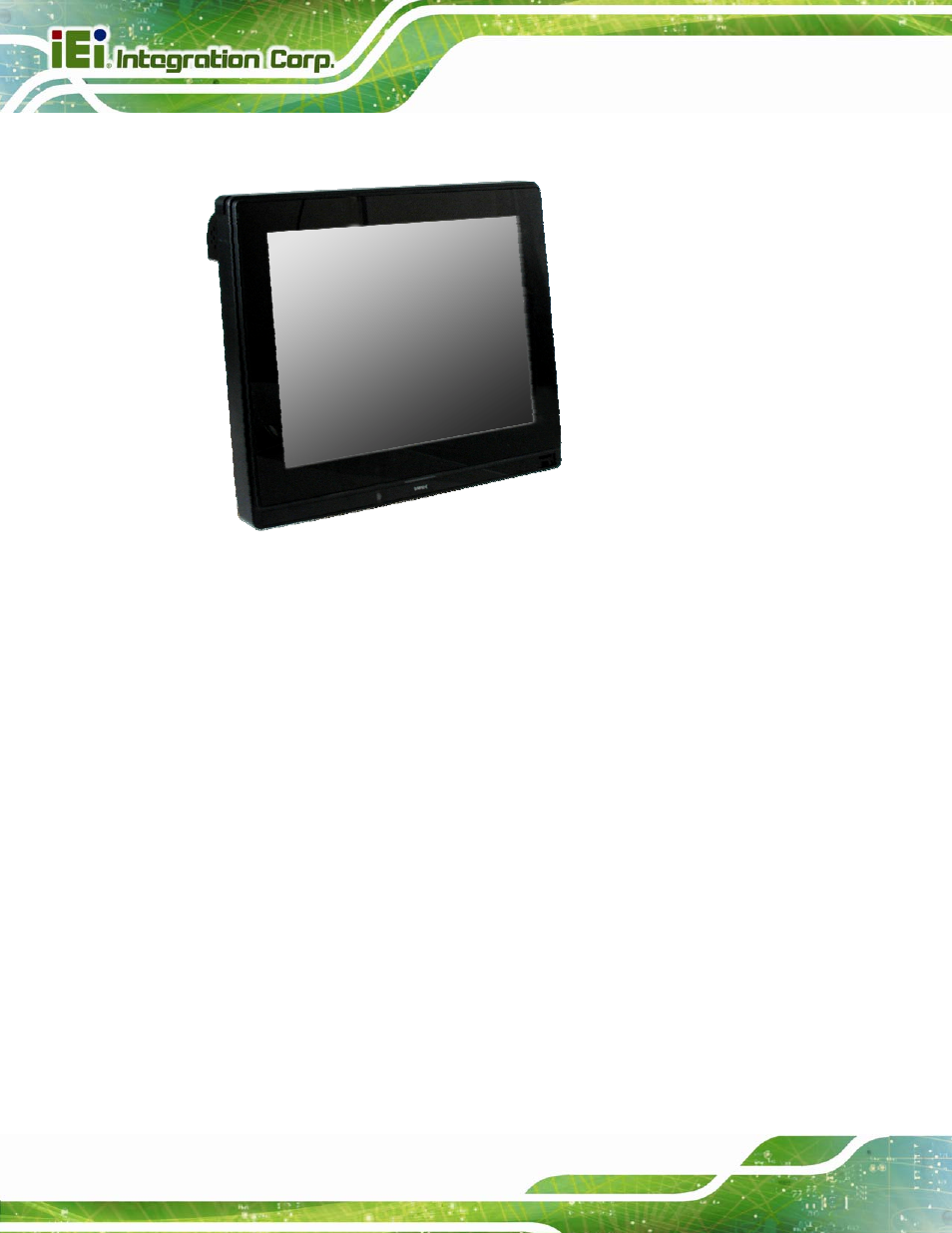

Figure 1-1: AFL2-12A-D525 Flat Bezel Panel PC
The AFL2-12A-D525 is an Intel® Atom™ powered flat bezel panel PC with a rich variety of
functions and peripherals. The AFL2-12A-D525 is designed for easy and simplified
integration into kiosk and point-of-sales (POS) applications.
An Intel® Atom™ D525 graphics memory controller hub (GMCH) coupled with an Intel®
ICH8-M input/output controller hub ensures optimal memory, graphics, and peripheral I/O
support. The system comes with 1.0 GB of preinstalled DDR3 SDRAM ensuring smooth
data throughputs with reduced bottlenecks and fast system access.
Three serial ports and four external USB 2.0 ports ensure simplified connectivity to a
variety of external peripheral devices. Wi-Fi capabilities and dual RJ-45 Ethernet
connector provide the system with smooth connection to an external LAN. An optional
MSR card reader can equip the system for scanning credit cards, identification cards,
loyalty cards, gift cards, and more.
1.1.1 Model Variations
The model variations of the AFL2-12A-D525 Series are listed below.
