AFL-W19A/W19B/17D/W15A-N270 Panel PC

Page 17

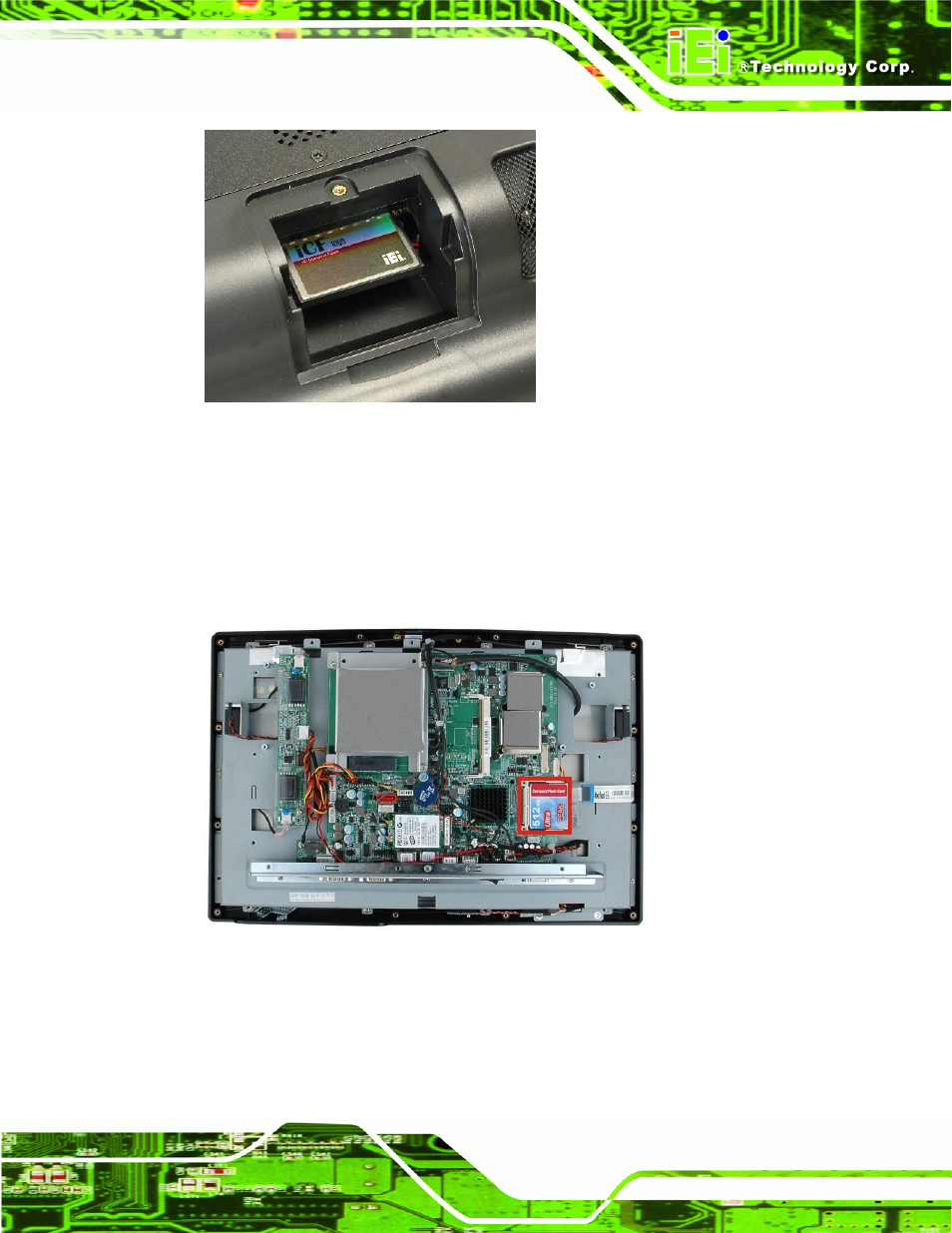

Figure 2–5: CompactFlash® Install

Step 4:

Slide the cover back on, then fasten the screw.

S

te

p

0

:

2.4.2 ALF-W15A-N270, AFL-W19A-N270, AFL-W19B-N270 CompactFlash®

Installation

Step 1:

Locate the CompactFlash® slot as shown in the figure below.

Figure 2–6: CompactFlash® Slot Location

Step 2:

Install the CompactFlash® card into the slot (see figure below).
