Switch Position Description
Right Use ATX power (Default)
Left Use AT power
Table 4-2: AT/ATX Power Switch Settings
The AT/ATX switch is located below the CF card slot on the front panel as shown in
Figure 4-1 .

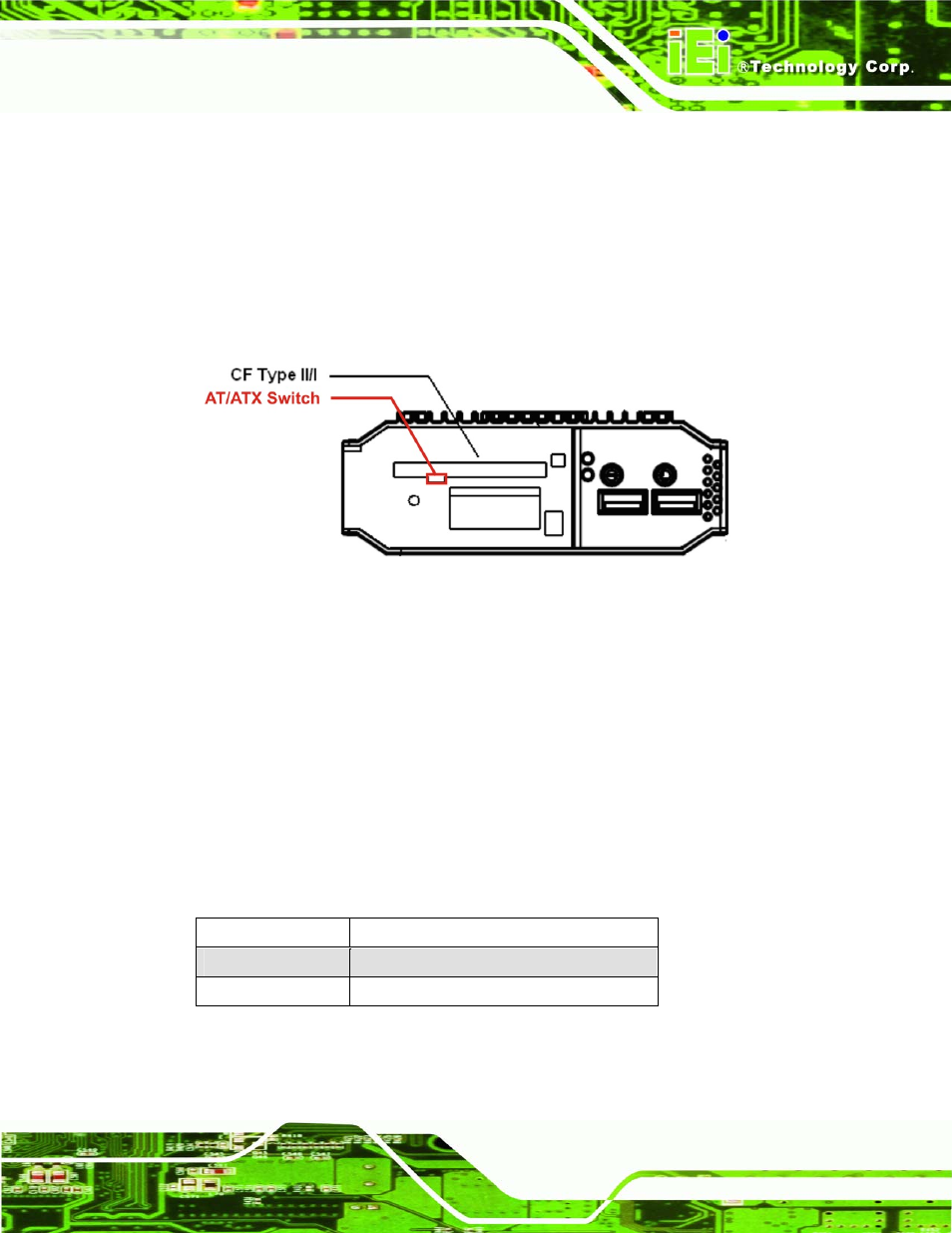

Figure 4-1: AT/ATX Switch Location (Front Panel)
4.2.2 Clear CMOS Jumper
Jumper Label: JP1
Jumper Type:
3-pin header
Jumper Settings: See Table 4-3
To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more,
then move back to the default position.
Setting Description
1-2 Keep current BIOS setup
2-3 Clear BIOS
Table 4-3: Clear BIOS Jumper Settings
