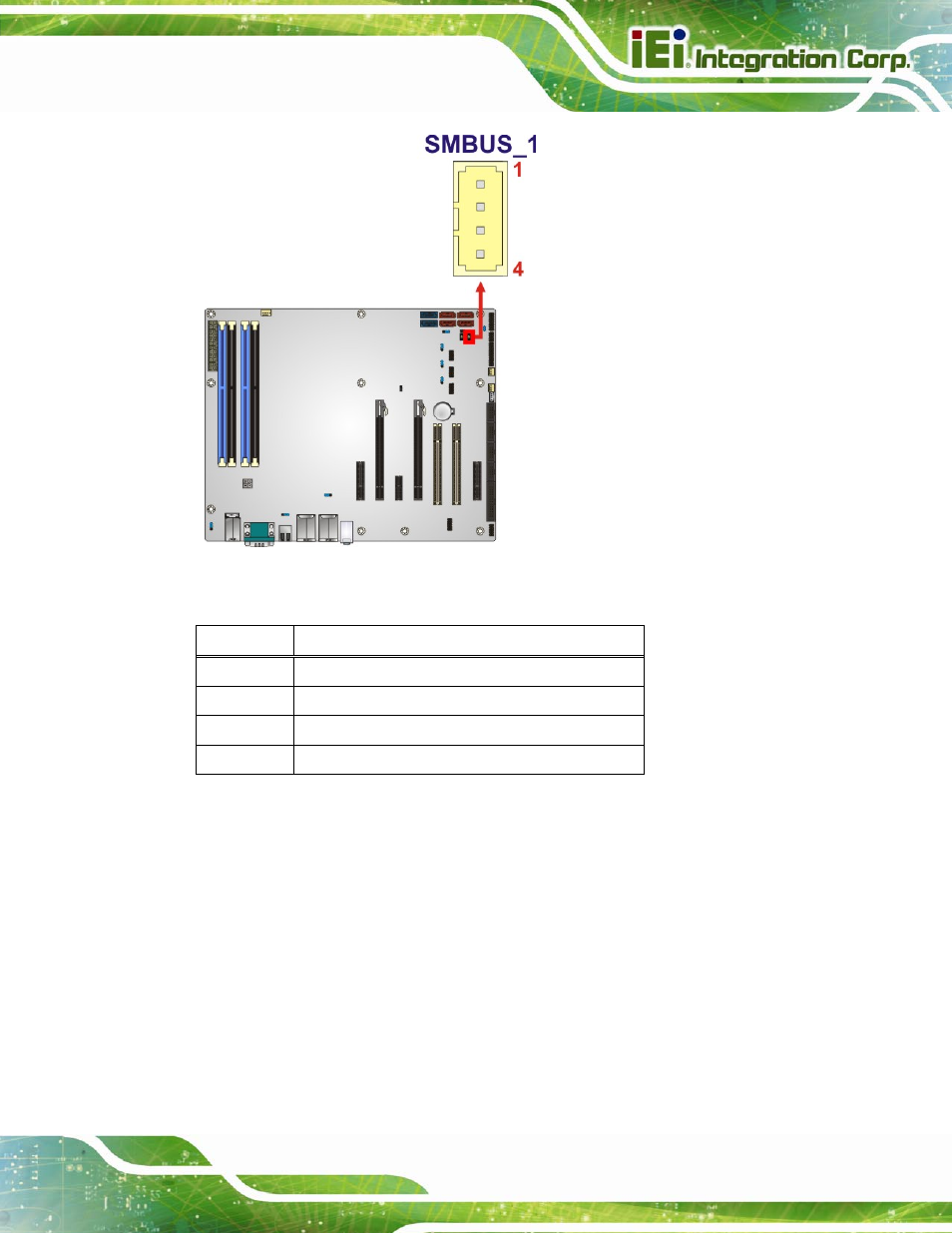

Figure 3-25: SMBus Connector Location

Pin Description

1 +5V_DUAL

2 SMBCLK

3 SMBDATA

4 GND

Table 3-21: SMBus Connector Pinouts

3.2.25 SPI ROM Connector

CN Label:

JSPI1

CN Type:

8-pin header

CN Location:

See Figure 3-26

CN Pinouts:

See Table 3-22

The SPI connector is used to flash the BIOS.
