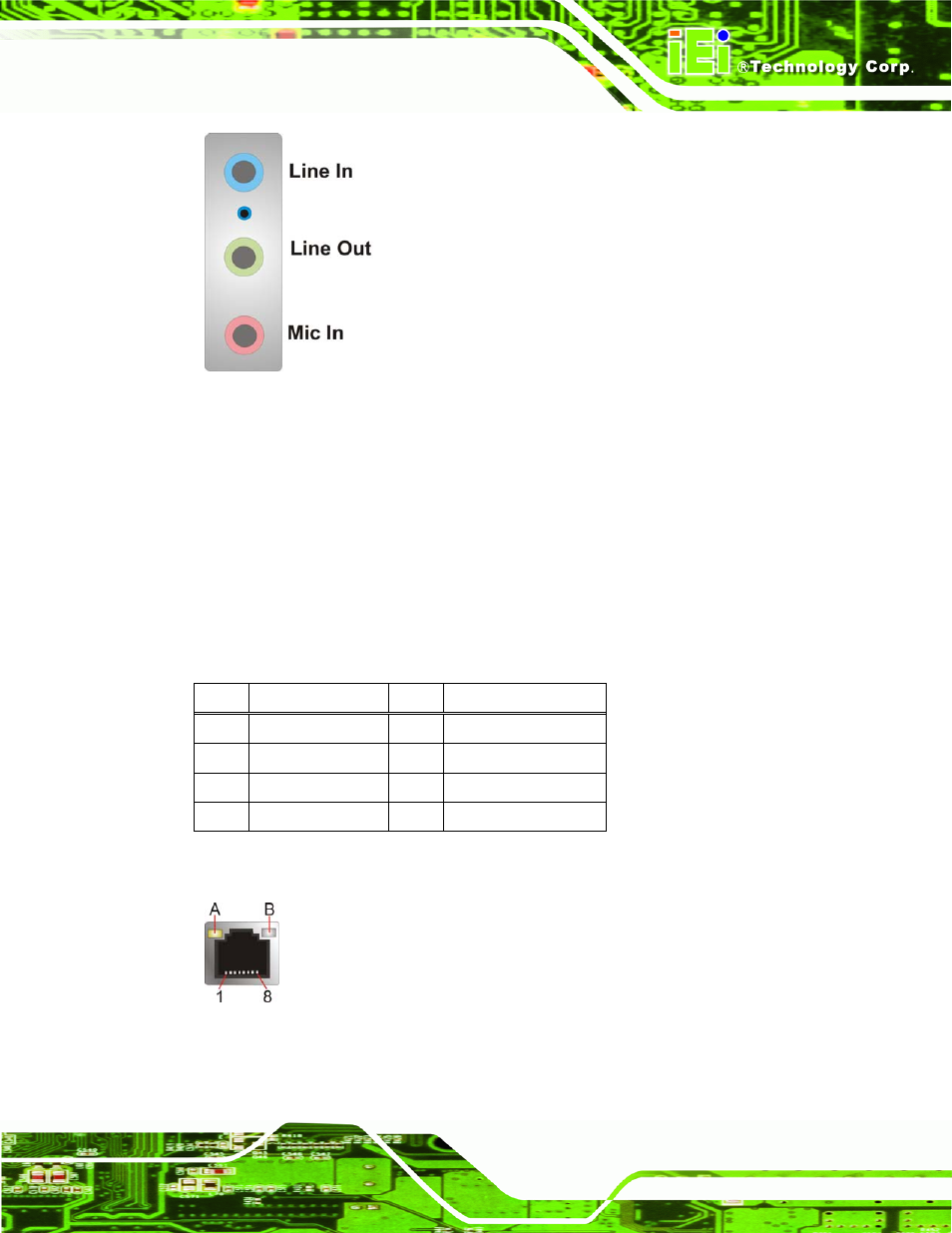

Figure 3-28: Audio Connector
3.3.2 Ethernet and USB Connector
CN Label: LAN1_USB01, LAN2_USB23
CN Type: RJ-45, USB 2.0 and USB 3.0 connectors
CN Location: See Figure 3-27
CN Pinouts: See Table 3-23
The LAN connector connects to a local network.
PIN DESCRIPTION PIN DESCRIPTION
1 MDIA3- 2 MDIA3+
3 MDIA2- 4 MDIA1-
5 MDIA1+ 6 MDIA2+
7 MDIA0- 8 MDIA0+
Table 3-23: LAN Pinouts
Figure 3-29: Ethernet Connector
