3.2.4 DDR3 DIMM Slots

CN Label:

CHA_DIMM1, CHA_DIMM2, CHB_DIMM1, CHB_DIMM2

CN Type:

DDR3 DIMM slot

CN Location:

See

7

Figure 3-5

The DIMM slots are for DDR3 DIMM memory modules.

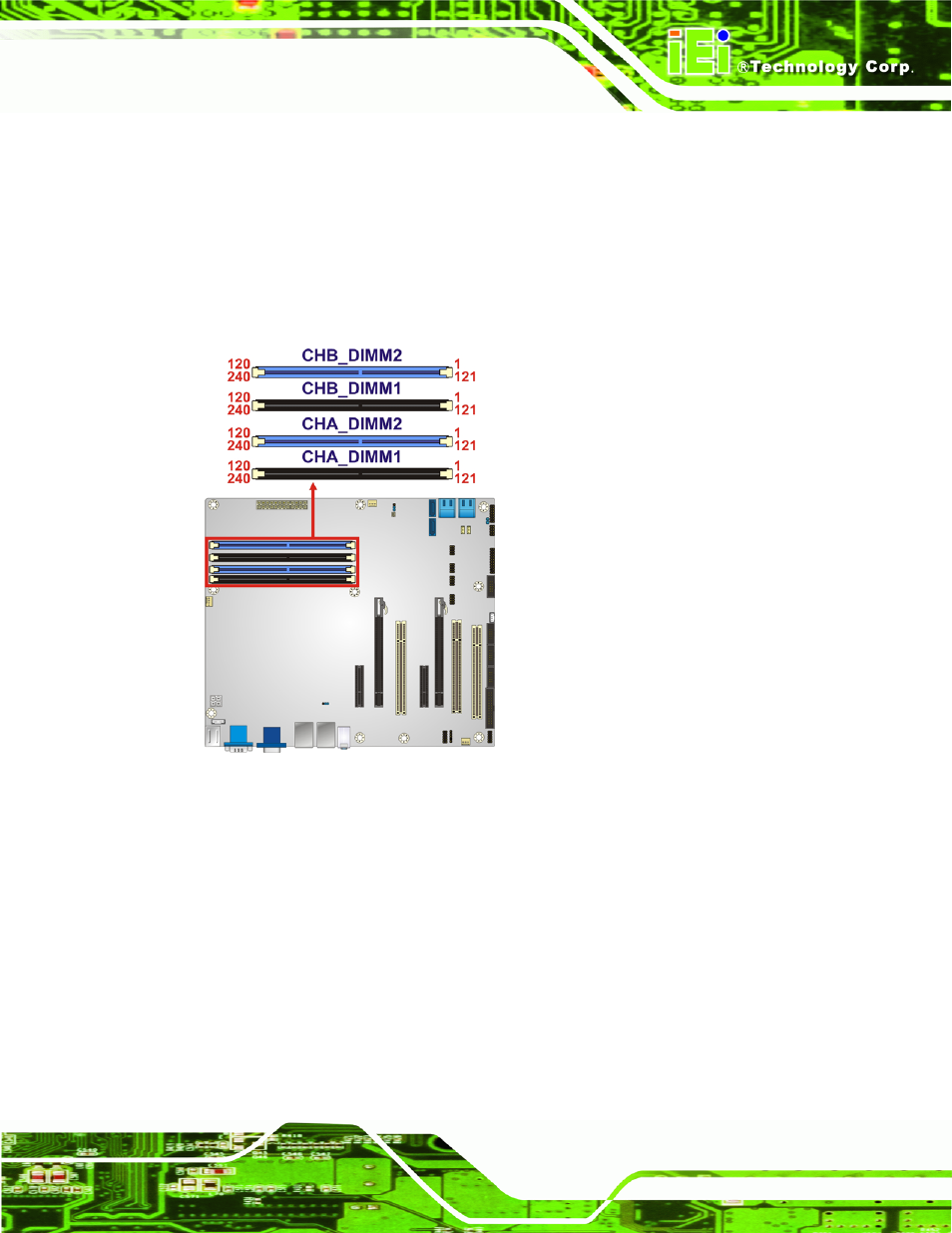

Figure 3-5: DDR3 DIMM Slot Locations

3.2.5 Digital I/O Connector

CN Label:

DIO1

CN Type:

10-pin header

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-6

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 4-bit output and 4-bit input.
