IMBA-C2060 ATX Motherboard

Page 19

Pin Description

Pin Description

8 NC

20

NC

9 +5V

21

+5V

10 +12V

22 +5V

11 +12V

23 +5V

12 +3.3V

24 GND

Table 3-3: ATX Power Connector Pinouts

3.2.2 Battery Connectors

CN Label:

BAT1, BT2

CN Type:

Battery holder and 2-pin wafer

CN Location:

See Figure 3-3

CN Pinouts:

See Table 3-4

This is connected to the system battery. The battery provides power to the system clock to

retain the time when power is turned off.

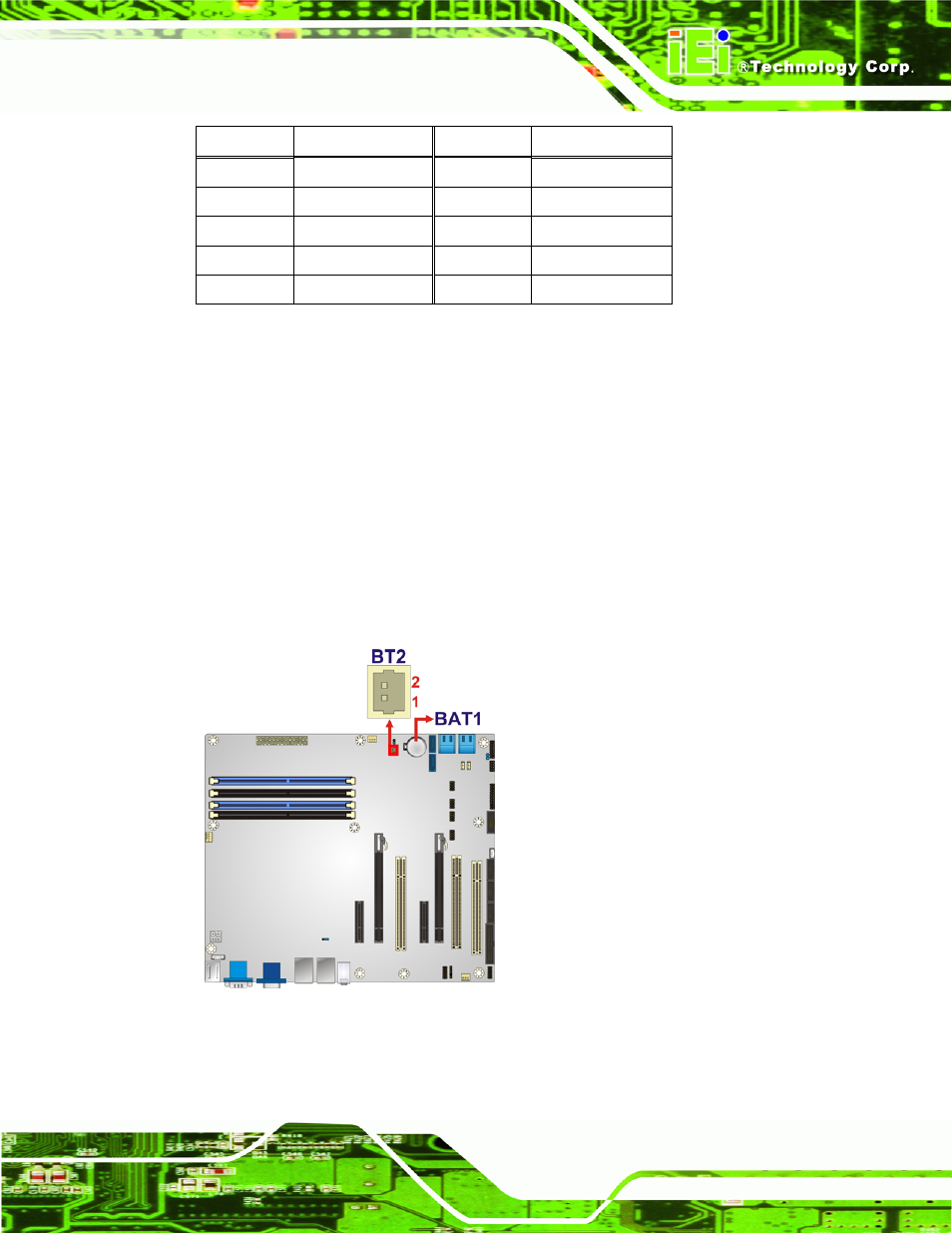

Figure 3-3: Battery Connector Locations
