Acer 2920 User Manual
Page 81
Chapter 3
71
6.

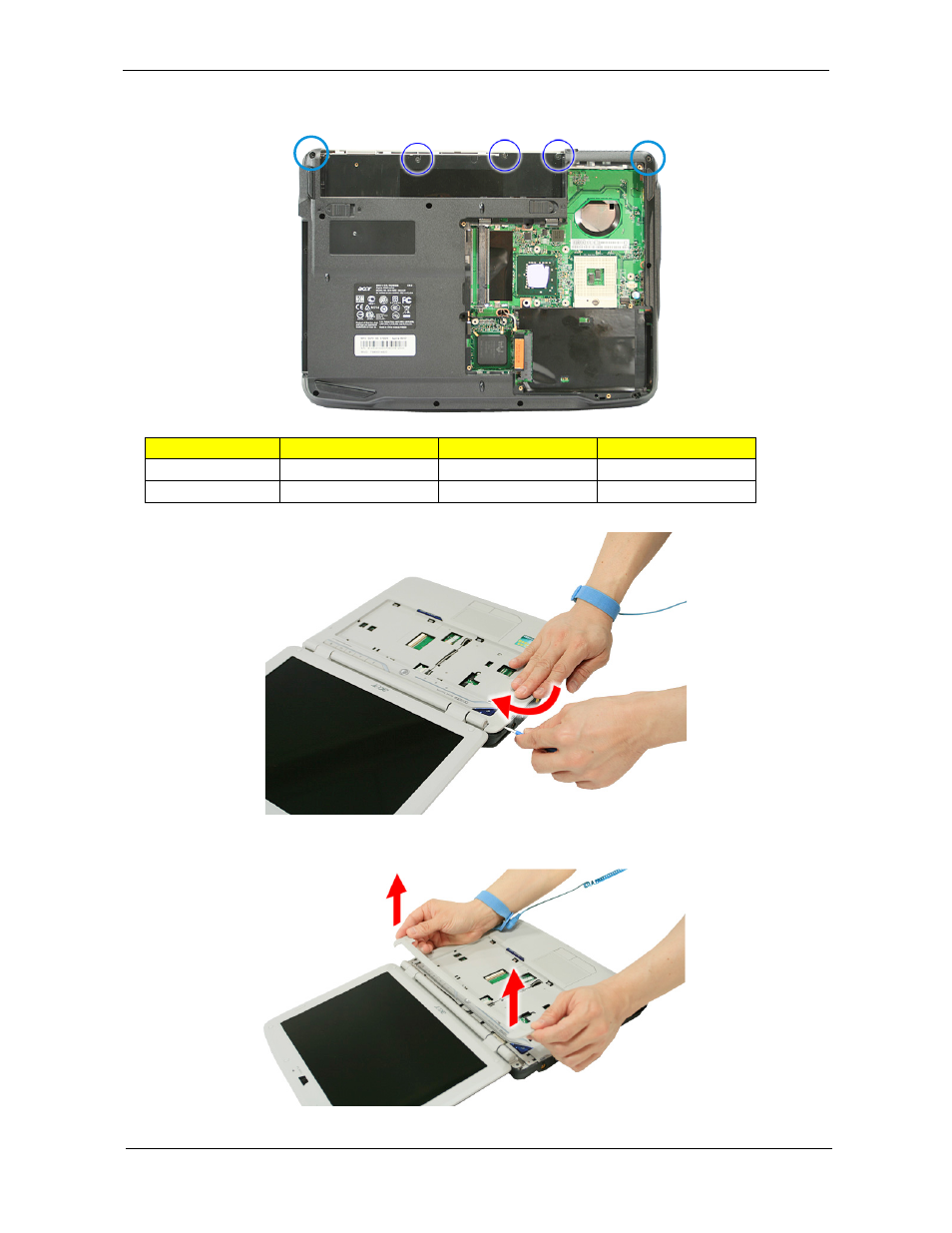

Remove the two screws (H) from the botton panel of the system and three screws (A) on the battery bay
area.
7.
Turn over the system and open the LCD panel and gently pry up and remove the middle cover.
Step
Size (Quantity)
Color
Torque
1~2
M2.5 x L8 (2)
Black
3.0 kgf-cm
3~5
M2 x L3 (3)
Black
1.6 kgf-cm
