Step 1:

Locate the dual PS/2 connector. The location of the dual PS/2 connector is

shown in Chapter 3.

Step 2:

Insert the keyboard/mouse connector.

Insert a PS/2 keyboard or mouse

connector into the appropriate PS/2 connector on the external peripheral

interface connector. See Figure 4-17.

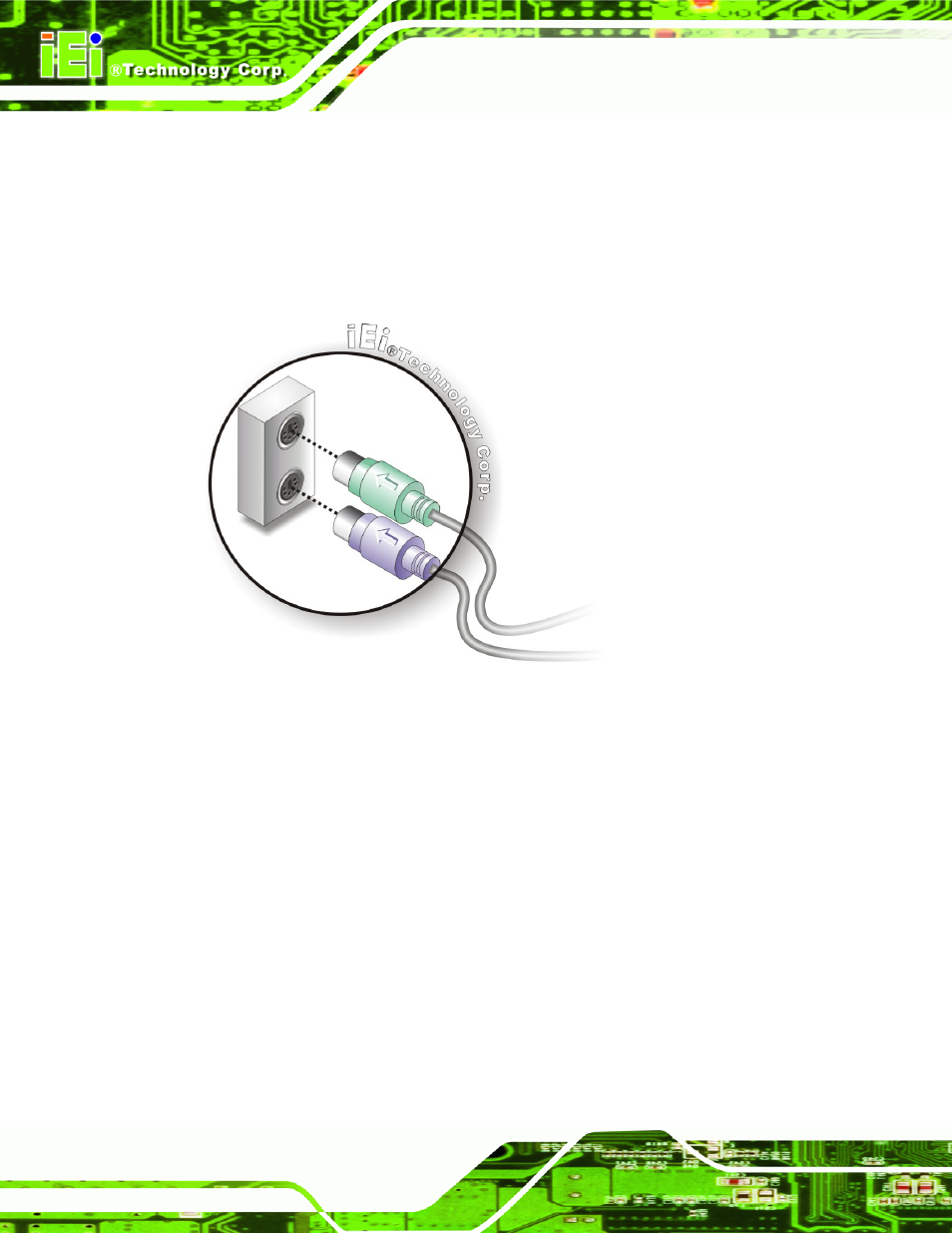

Figure 4-17: PS/2 Keyboard/Mouse Connector

4.5.5 Serial Device Connection

The IMB-C2060 has a single female DB-9 connector on the external peripheral interface

panel for a serial device. Follow the steps below to connect a serial device to the

IMB-C2060.

Step 1:

Locate the DB-9 connector. The location of the DB-9 connector is shown in

Chapter 3.

Step 2:

Insert the serial connector.

Insert the DB-9 connector of a serial device into

the DB-9 connector on the external peripheral interface. See Figure 4-18.
