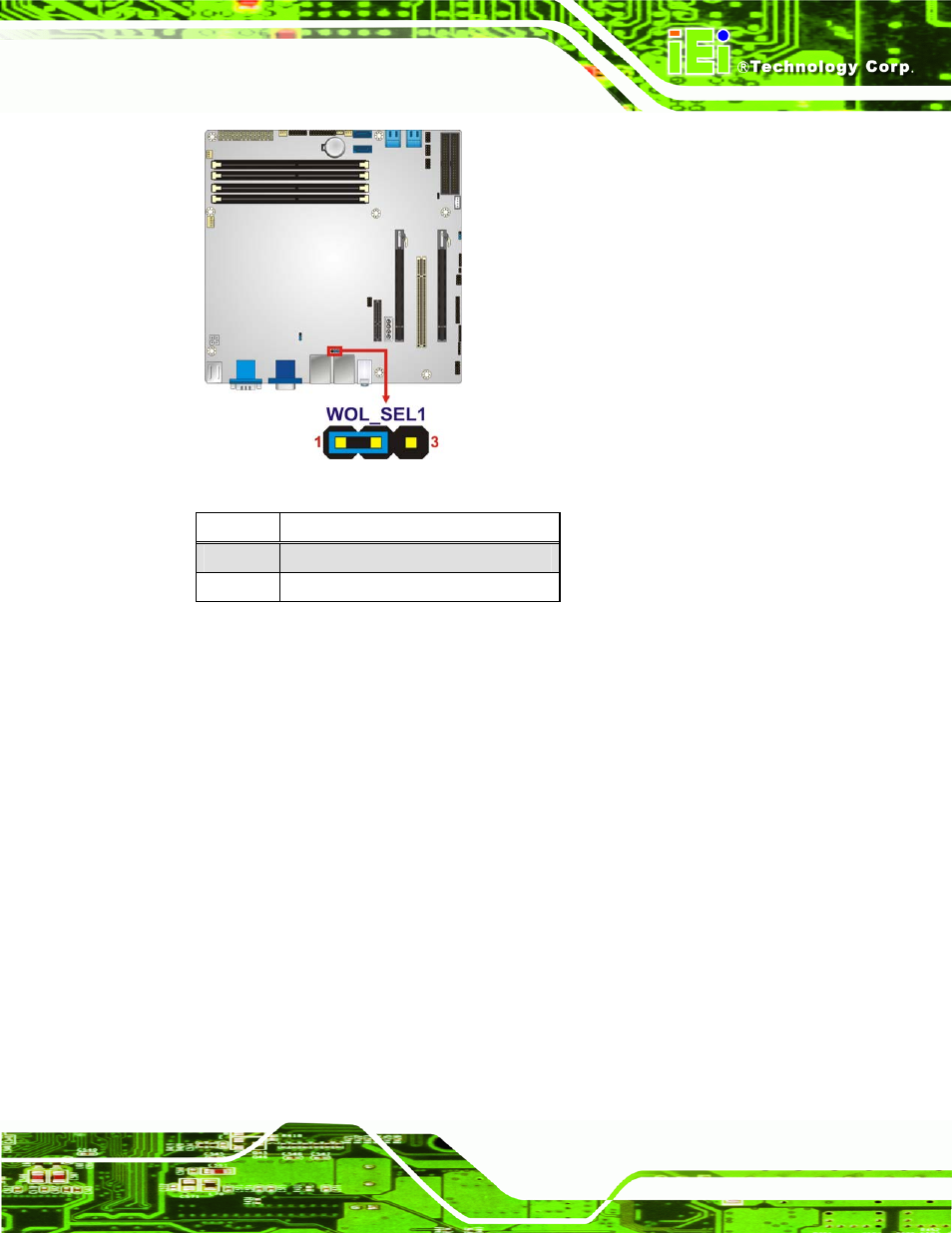

Figure 4-11: Wake-on LAN Connector Pinout Locations

PIN NO.

DESCRIPTION

Short 1-2

Wakeup Enable (Default)

Short 2-3

Disable

Table 4-5: Wake-on LAN Connector Pinouts

4.4 Internal Peripheral Device Connections

This section outlines the installation of peripheral devices to the onboard connectors.

4.4.1 SATA Drive Connection

The IMB-C2060 is shipped with four SATA drive cables. To connect the SATA drives to

the connectors, please follow the steps below.

Step 1:

Locate the connectors. The locations of the SATA drive connectors are shown

in Chapter 3.

Step 2:

Insert the cable connector. Press the clip on the connector at the end of the

SATA cable and insert the cable connector into the on-board SATA drive

connector. See Figure 4-12.
